Disc Brake System Diagnosis

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For disc brake system diagnosis, see Fig 1-Fig 6 .

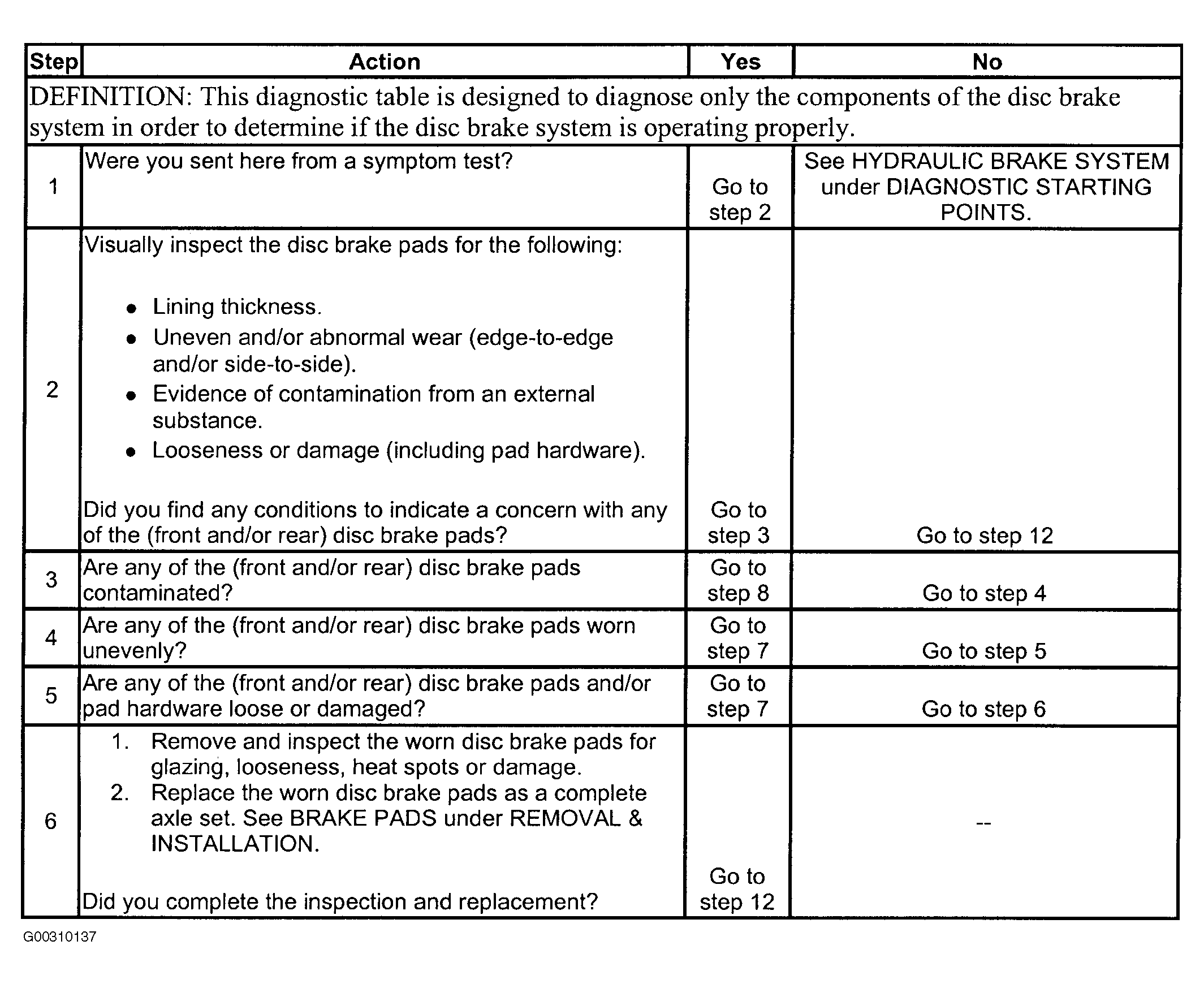

Fig 1: Disc Brake Diagnosis (1 Of 6)
G00310137Courtesy of GENERAL MOTORS CORP.

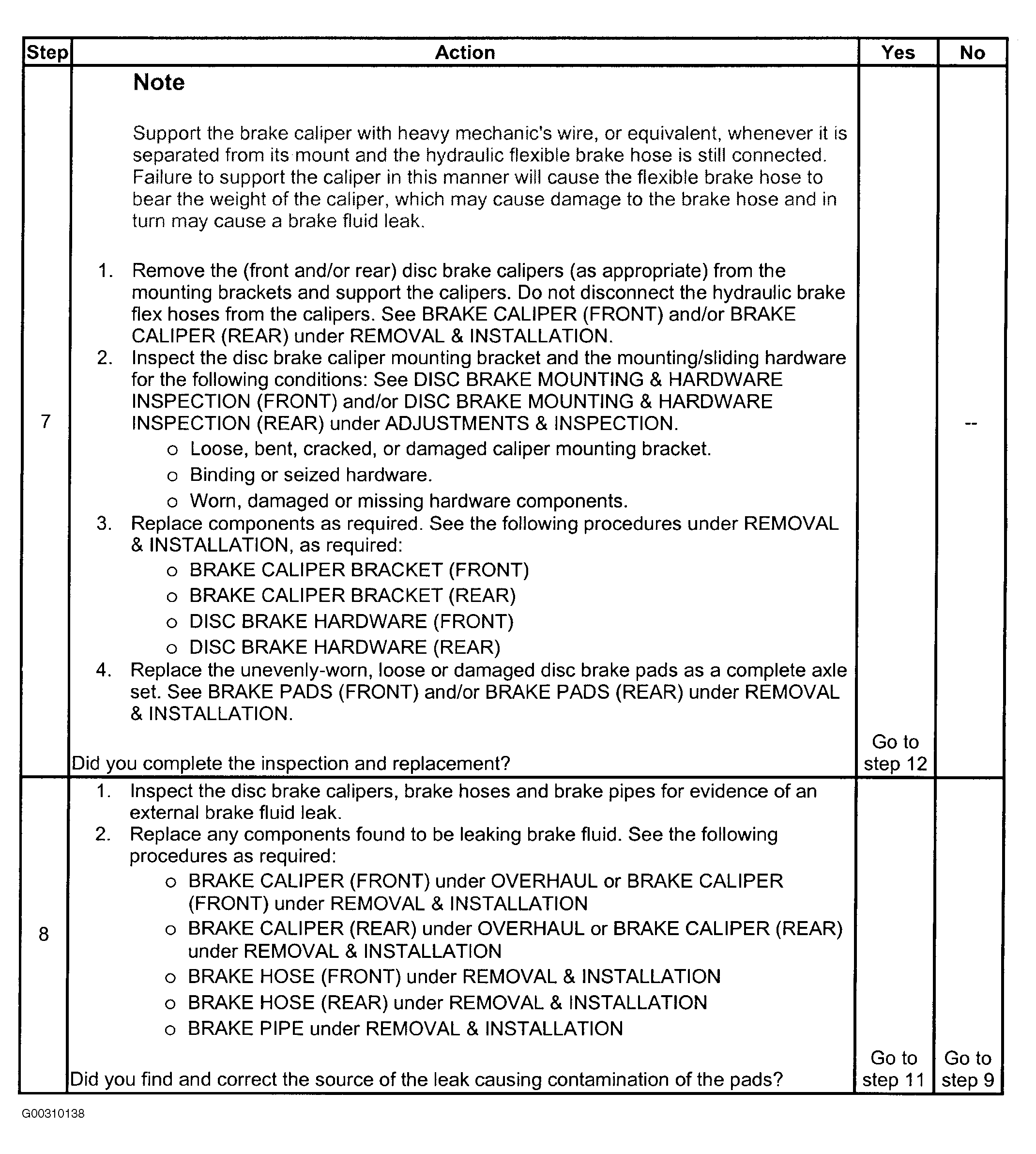

Fig 2: Disc Brake Diagnosis (2 Of 6)
G00310138Courtesy of GENERAL MOTORS CORP.

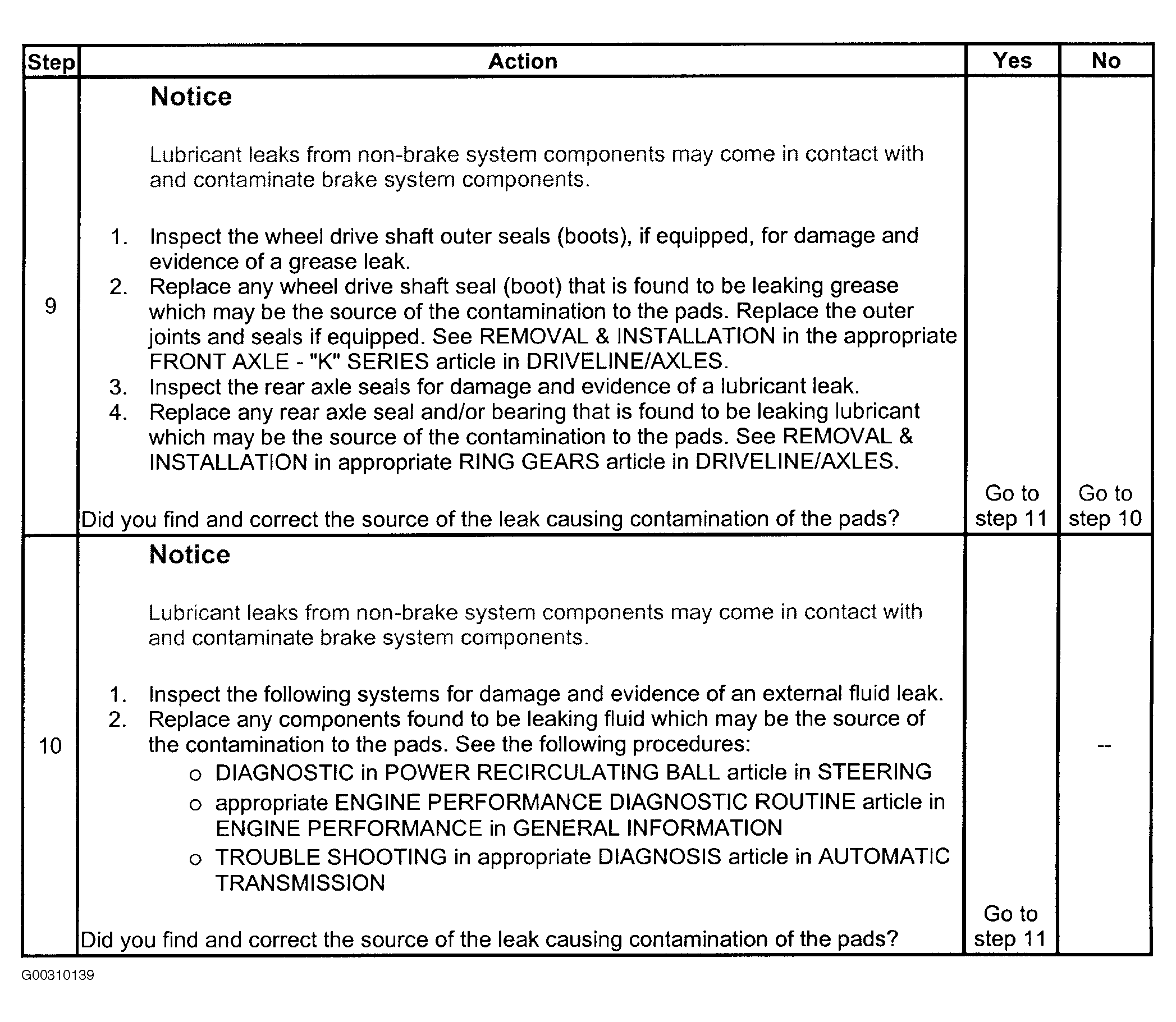

Fig 3: Disc Brake Diagnosis (3 Of 6)
G00310139Courtesy of GENERAL MOTORS CORP.

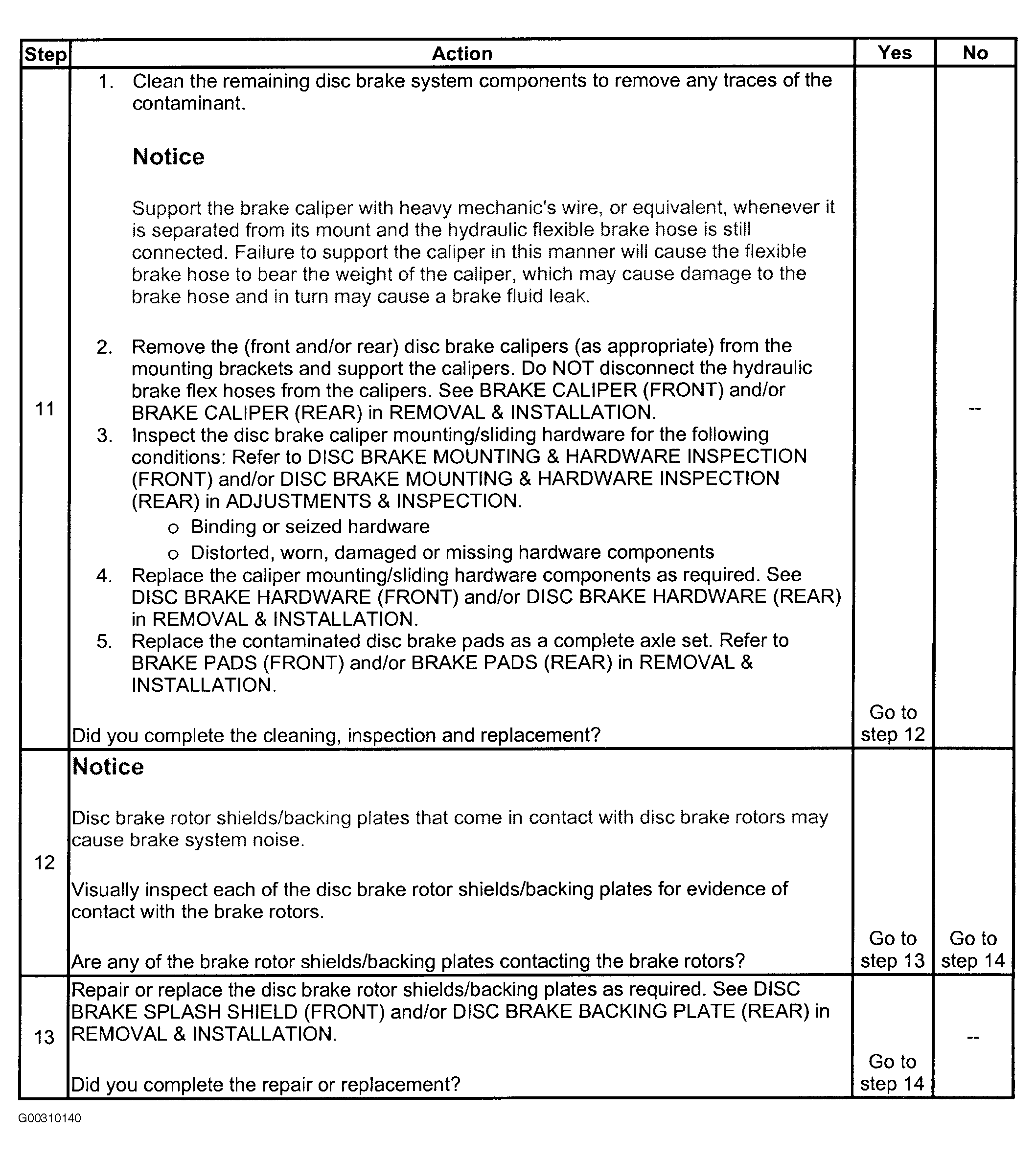

Fig 4: Disc Brake Diagnosis (4 Of 6)
G00310140Courtesy of GENERAL MOTORS CORP.

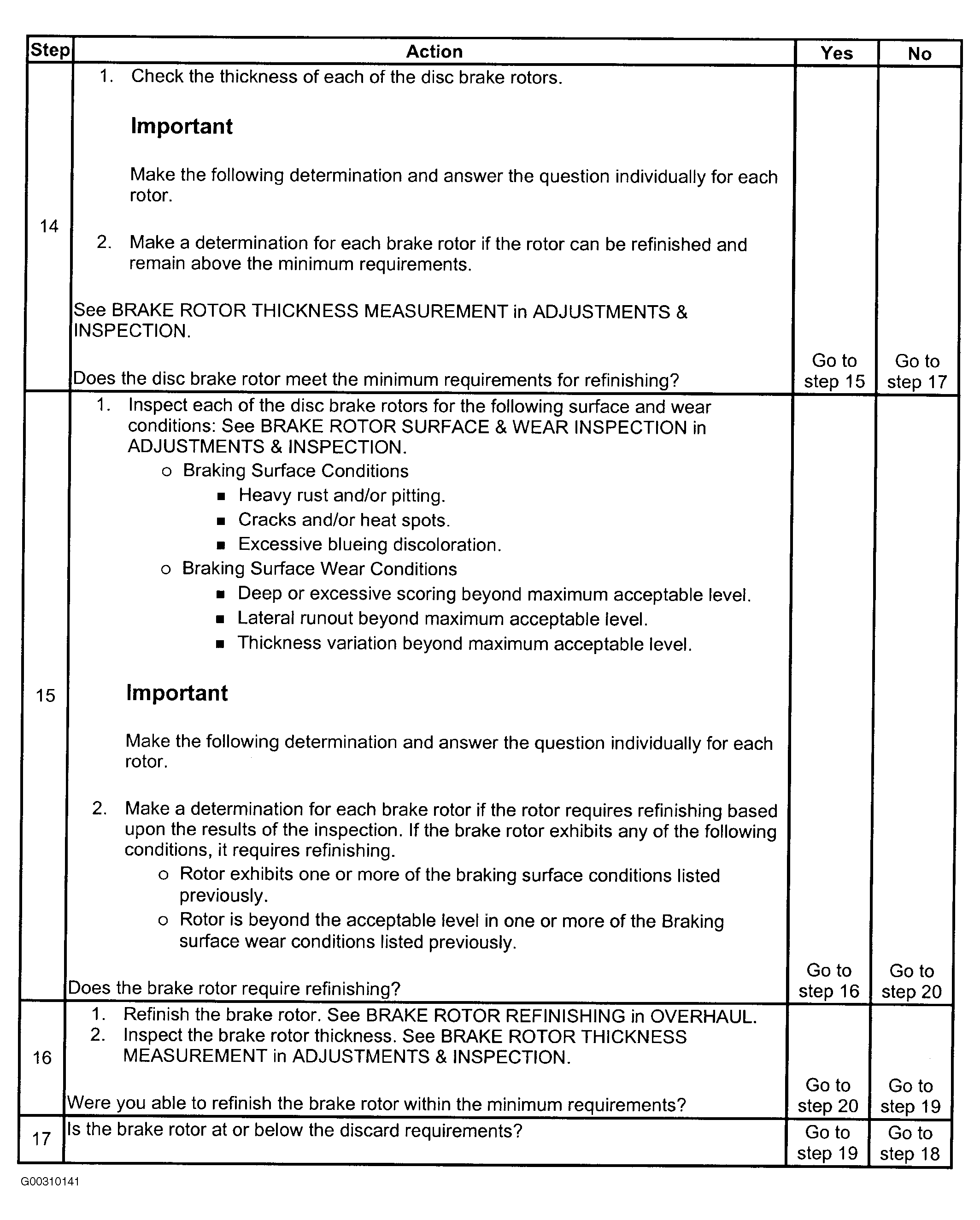

Fig 5: Disc Brake Diagnosis (5 Of 6)
G00310141Courtesy of GENERAL MOTORS CORP.

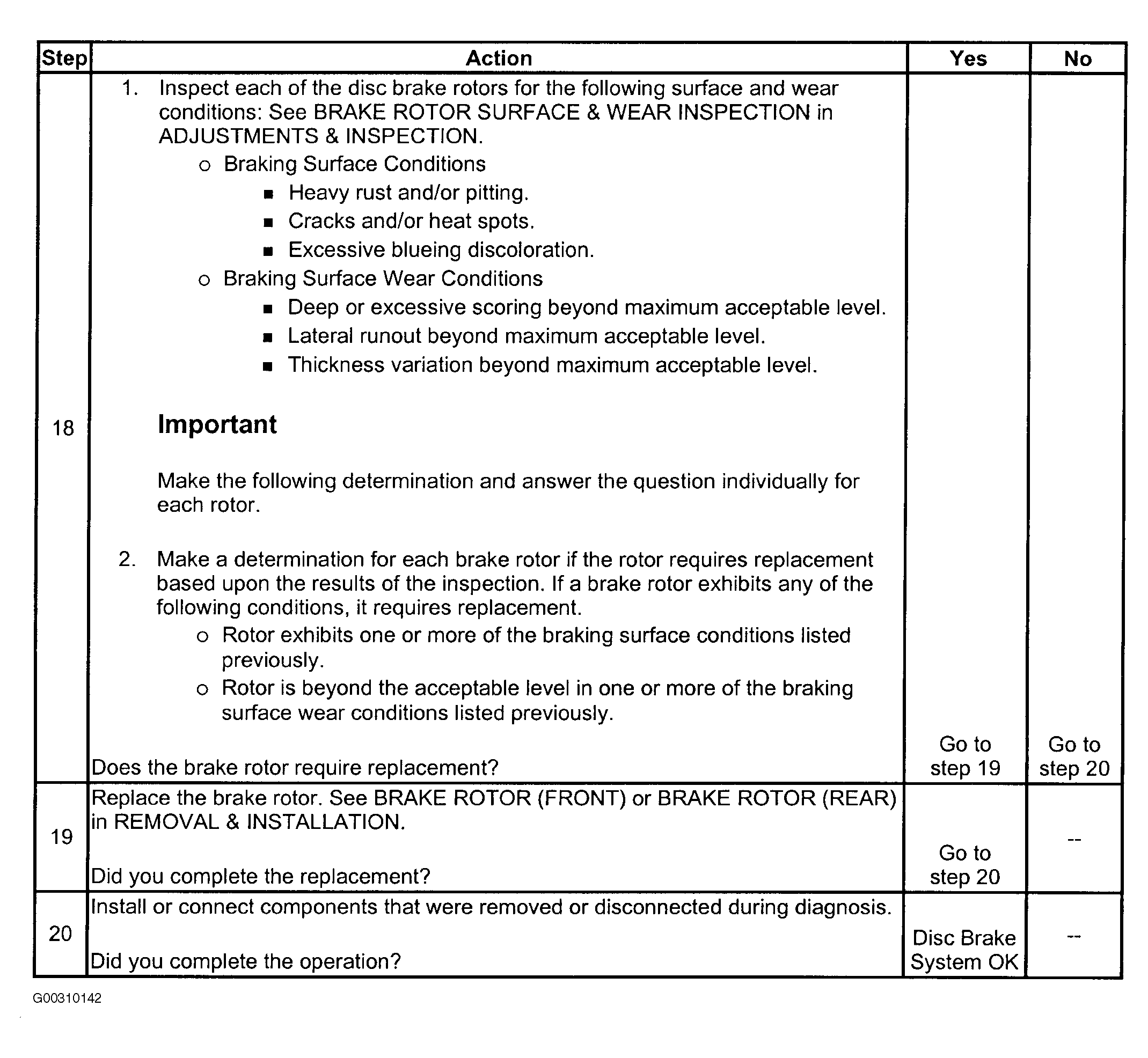

Fig 6: Disc Brake Diagnosis (6 Of 6)
G00310142Courtesy of GENERAL MOTORS CORP.
