Installation (Front)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Install the cable. See Figure.
- Snap the retainer tabs into the body mount.
- Connect the front cable to the intermediate cable.

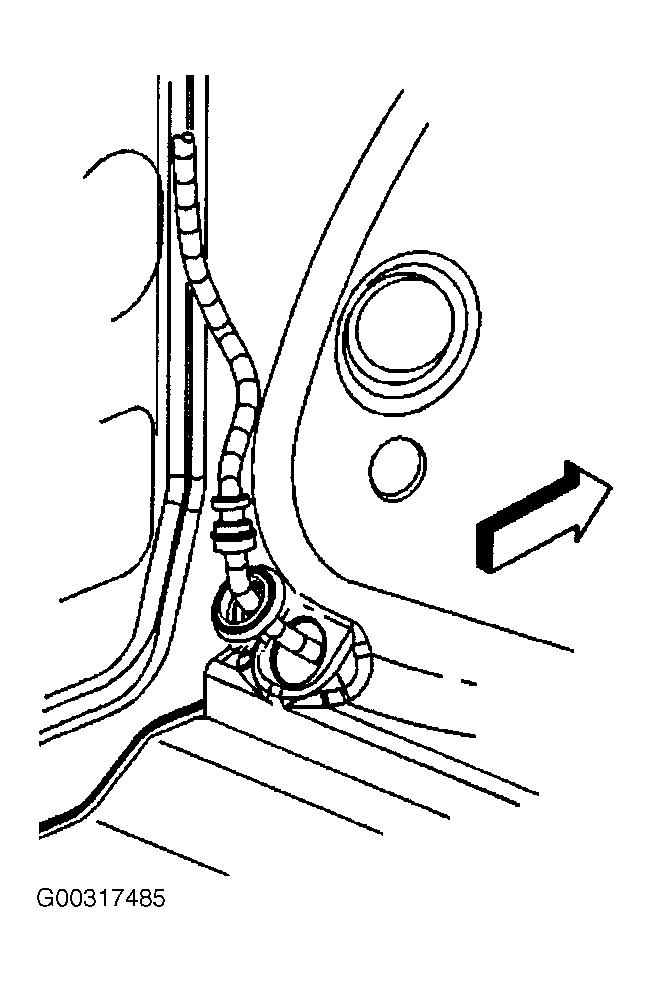

- Route the cable in through the floor pan and engage the grommet.
- Remove the safety stands.
- Lower the vehicle.
- Roll the carpet into place. See Figure.
- Install the park brake pedal. See PARK BRAKE PEDAL ASSEMBLY .
- Adjust the park brake system. See PARK BRAKE ADJUSTMENT under ADJUSTMENTS & INSPECTION.
