Park Brake Cable Mounting Bracket: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

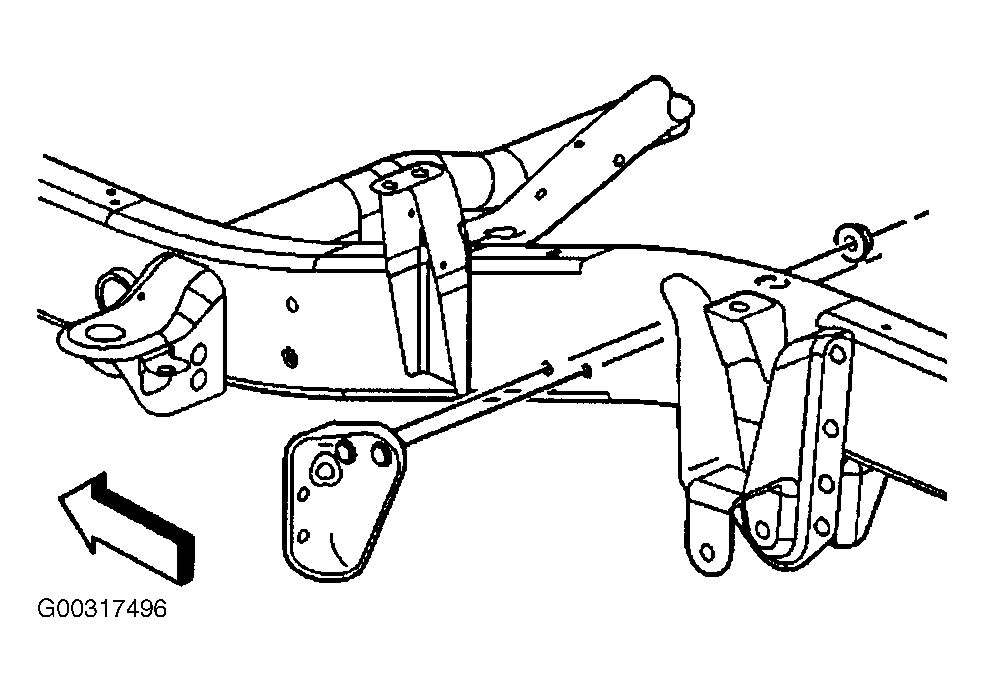

  1. Install the cable support bracket. See Figure.
  2. Install the cable support bracket nuts. Tighten the support bracket nuts to specification. See TORQUE SPECIFICATIONS .
  3. Install the rear cables to the mounting bracket by inserting the cable till all the retaining tabs snap into place. See Figure.
  4. Connect the rear cables to the equalizer.
  5. Tighten the nut to the intermediate cable at the equalizer. Tighten the nut to specification. See TORQUE SPECIFICATIONS .
  6. Remove the safety stands.
  7. Lower the vehicle.
