Hydraulic Brake Booster: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

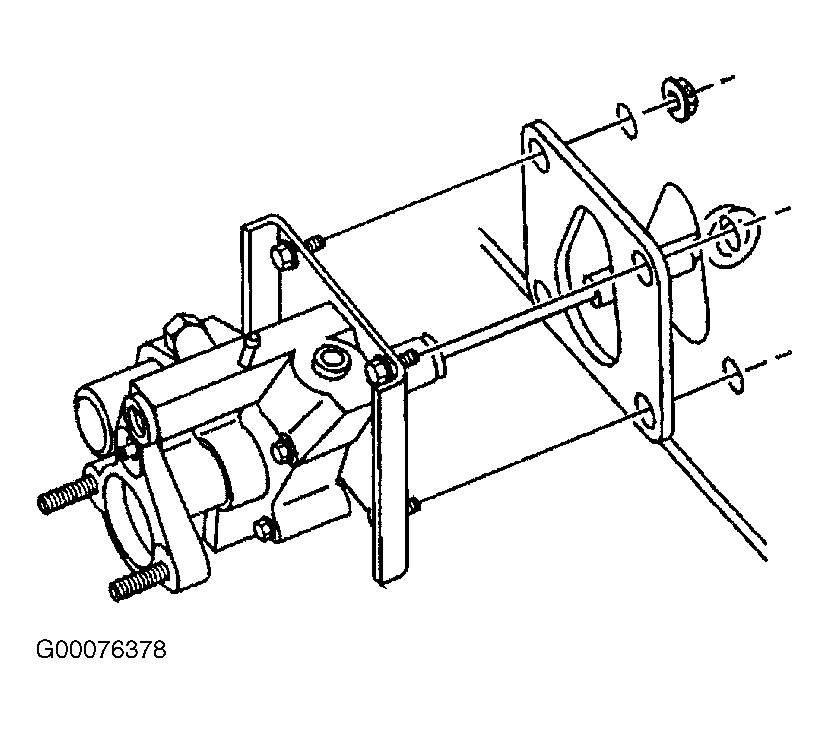

- Install the gasket. See Figure.
- Install the booster assembly.
- Install the 4 booster to bulkhead nuts. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
- Install the stoplight switch. See STOPLIGHT SWITCH .
- Install the master cylinder. See MASTER CYLINDER .
- Connect the return hose, the steering gear, and the inlet hoses.
- Bleed the hydraulic booster system. See BLEEDING THE POWER STEERING SYSTEM .
- Release the park brake and unblock the wheels.
