Hydraulic Brake Booster Accumulator: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate all of the seals and the metal friction points with power steering fluid. See Figure.
  2. Install the accumulator and the "O" ring seal.
  3. Place the accumulator piston compressor over the end of the accumulator. See Figure.
  4. Install the nut on the stud.

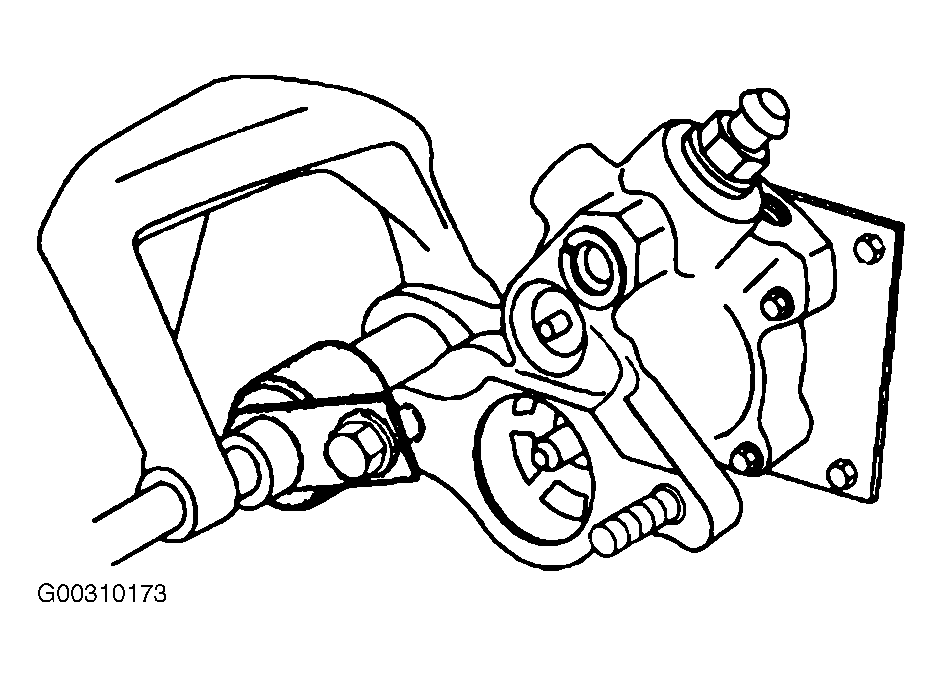

  5. Depress the accumulator with a C-clamp.
  6. Install the accumulator retainer ring. See Figure.
  7. Release the C-clamp. See Figure.
  8. Remove the nut from the stud.
  9. Remove the accumulator piston compressor.
  10. Install the master cylinder to the hydraulic booster. See MASTER CYLINDER .
  11. Release the park brake and unblock the wheels.
