Front Disc Brake Splash Shield: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel assembly.
  3. Remove the hub and bearing assembly. See WHEEL HUB & BEARINGS under REMOVAL & INSTALLATION in appropriate FRONT article in SUSPENSION.
  4. Remove the splash shield. See Fig 1 or Fig 2 .

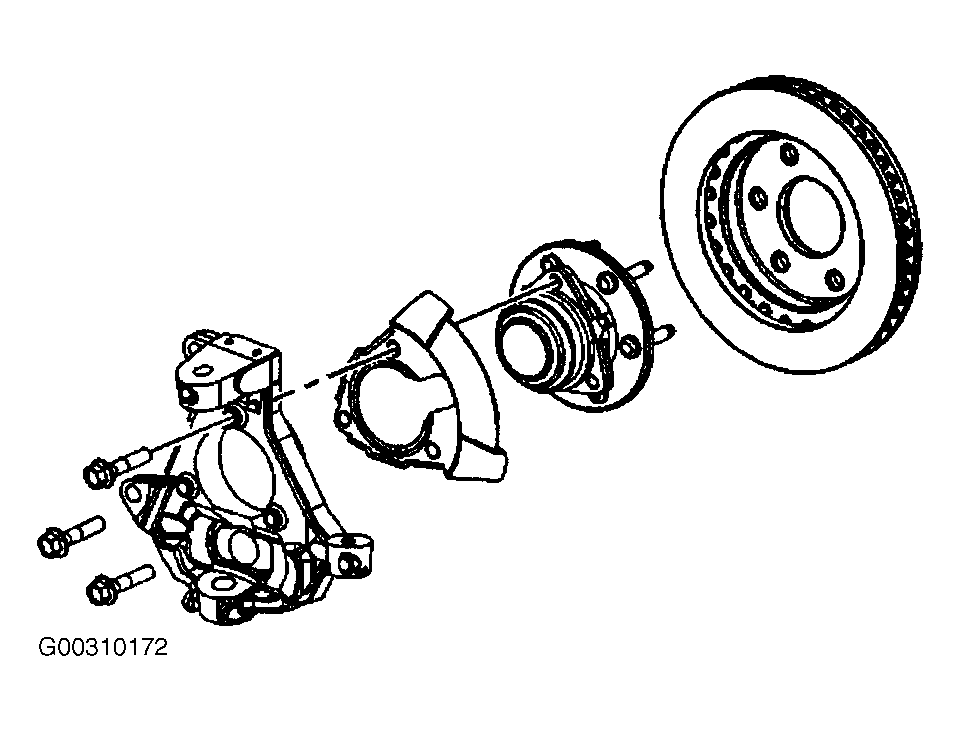

Fig 1: Removing Splash Shield
G00310172Courtesy of GENERAL MOTORS CORP.

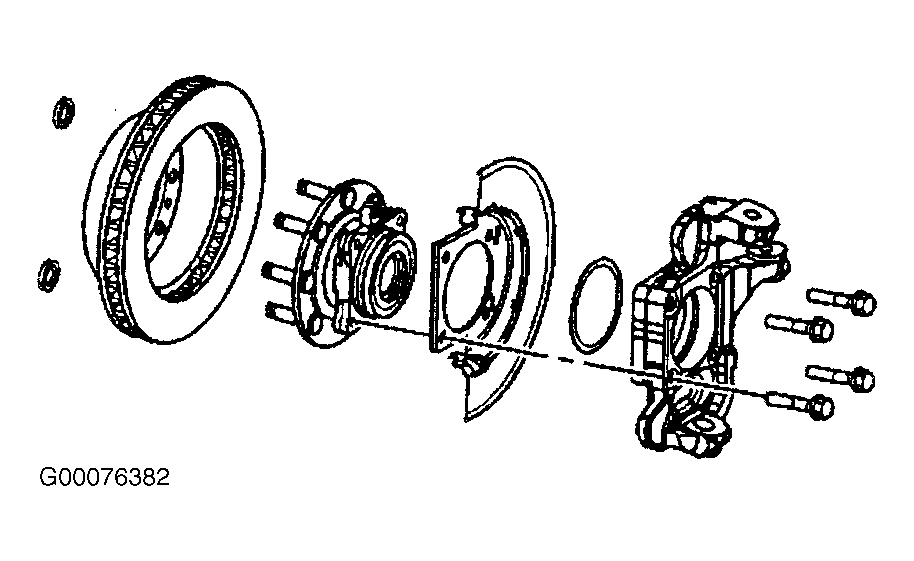

Fig 2: Removing & Installing Front Splash Shield
G00076382Courtesy of GENERAL MOTORS CORP.
