Brake Pedal Assembly: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake pedal.

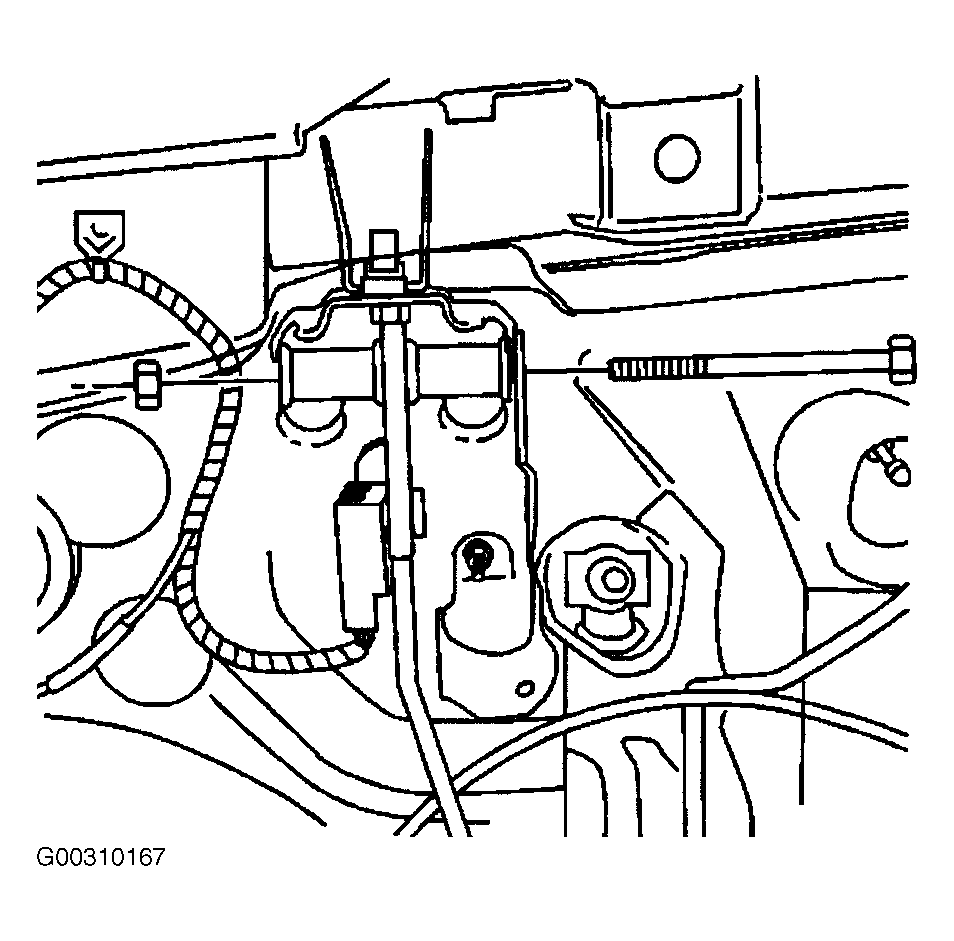

  2. Install the brake pedal bolt. See Figure.
  3. Install the nut to the brake pedal bolt. Hold the nut with a wrench and tighten the brake pedal bolt to specification. See TORQUE SPECIFICATIONS .

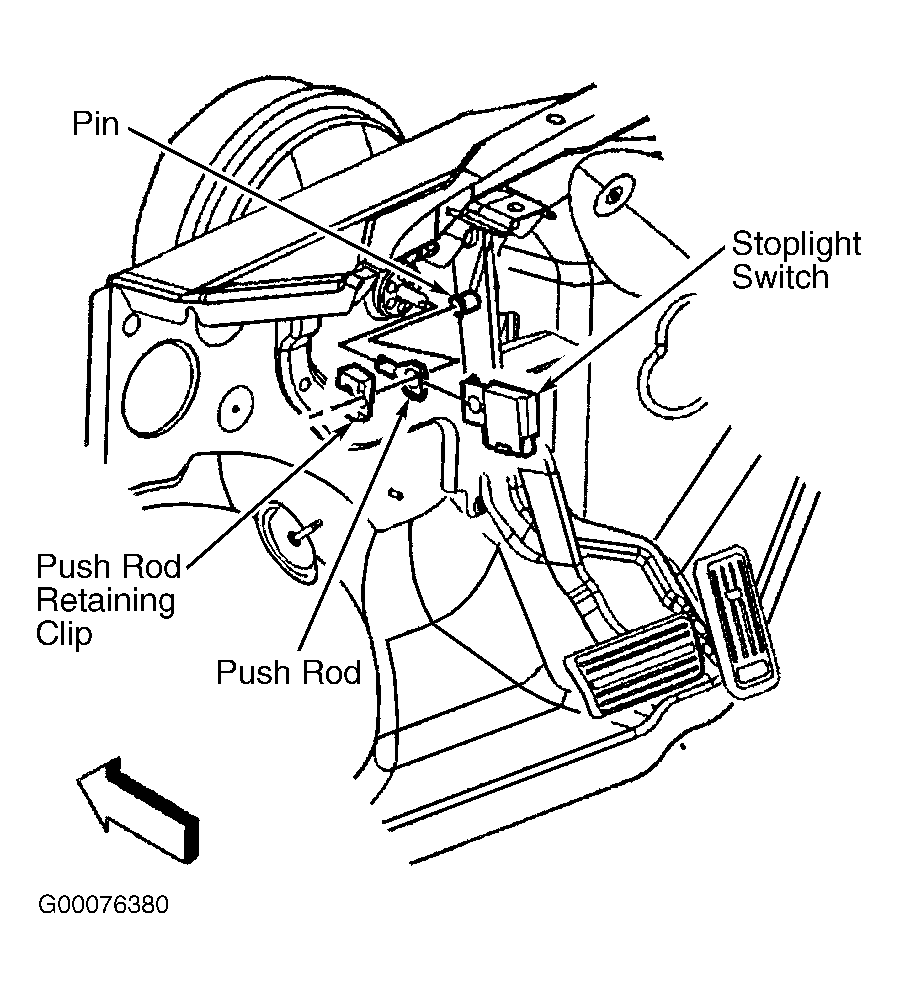

  4. Install the pushrod and the stoplight switch to the brake pedal pin. See Figure.
  5. Install the pushrod retaining clip.
