Park Brake Shoe Adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the Drum-To-Brake Shoe Clearance Gauge (J-21177-A) so that it contacts the inside diameter of the rotor. See Fig 1.
  2. Position the drum-to-brake shoe clearance gauge over the shoe and the lining at the widest point. See Fig 2.
  3. Turn the adjuster nut until the lining just contacts the drum-to-brake shoe clearance gauge.
  4. Repeat steps  1- 3 for the opposite side.
  5. The clearance between the park brake shoe and the rotor is 0.026" (0.6604 mm).

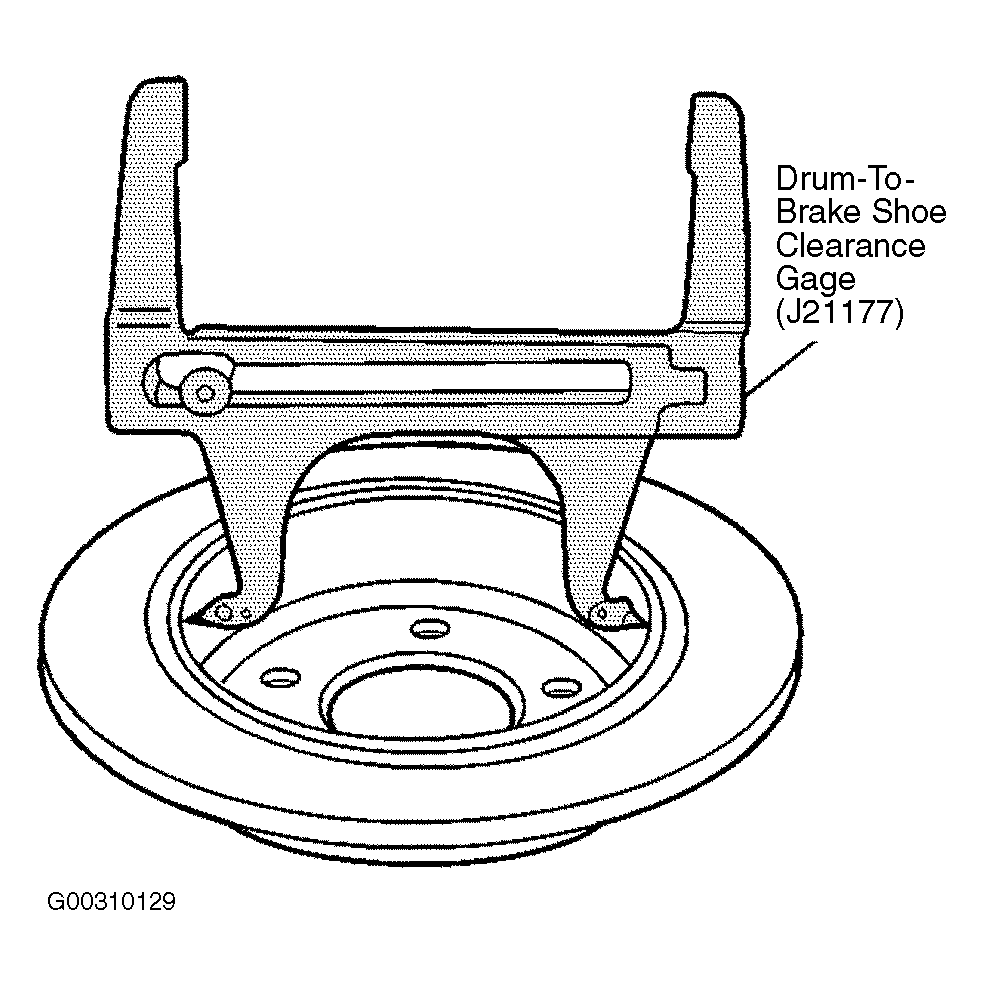

Fig 1: Setting Gauge On Inside Diameter Of Rotor
G00310129Courtesy of GENERAL MOTORS CORP.

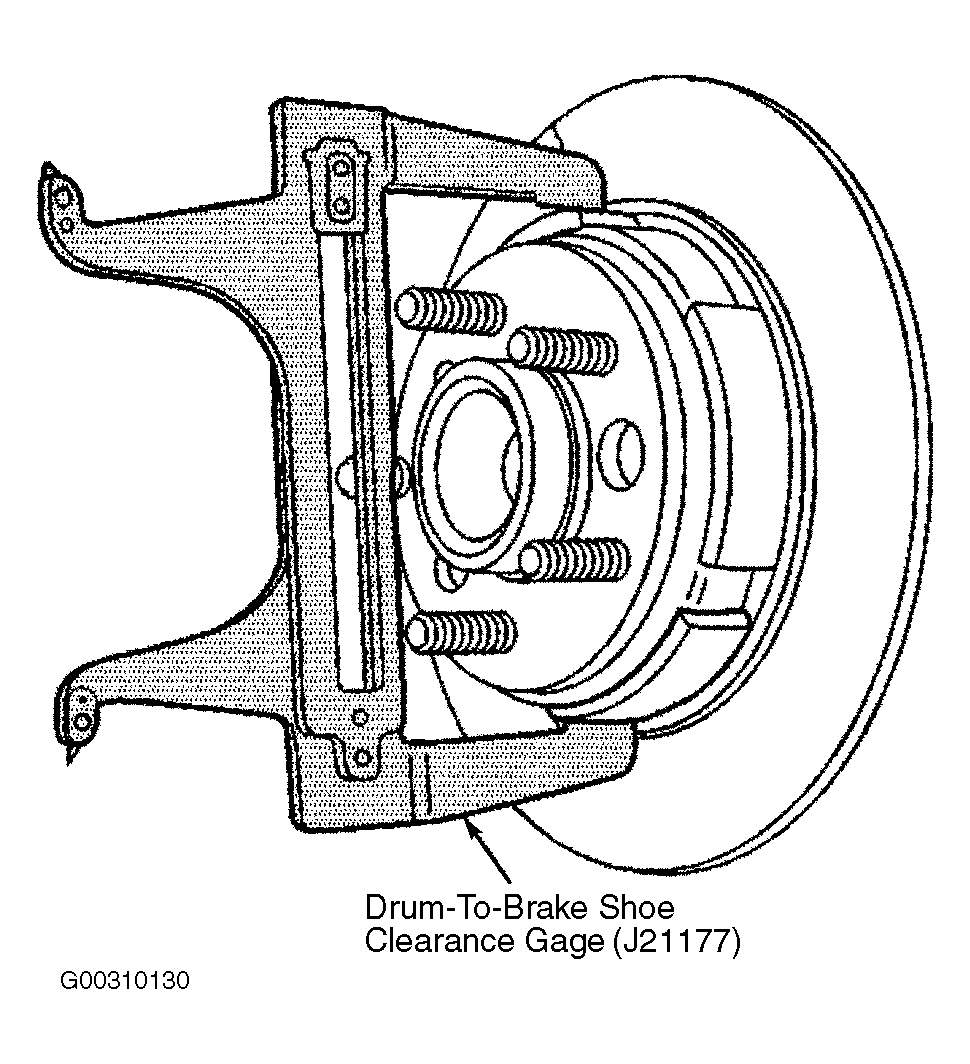

Fig 2: Positioning Gauge On Shoe & Lining
G00310130Courtesy of GENERAL MOTORS CORP.
