WARNING: This page is about a different car, the 2002 Pontiac Grand Prix and 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

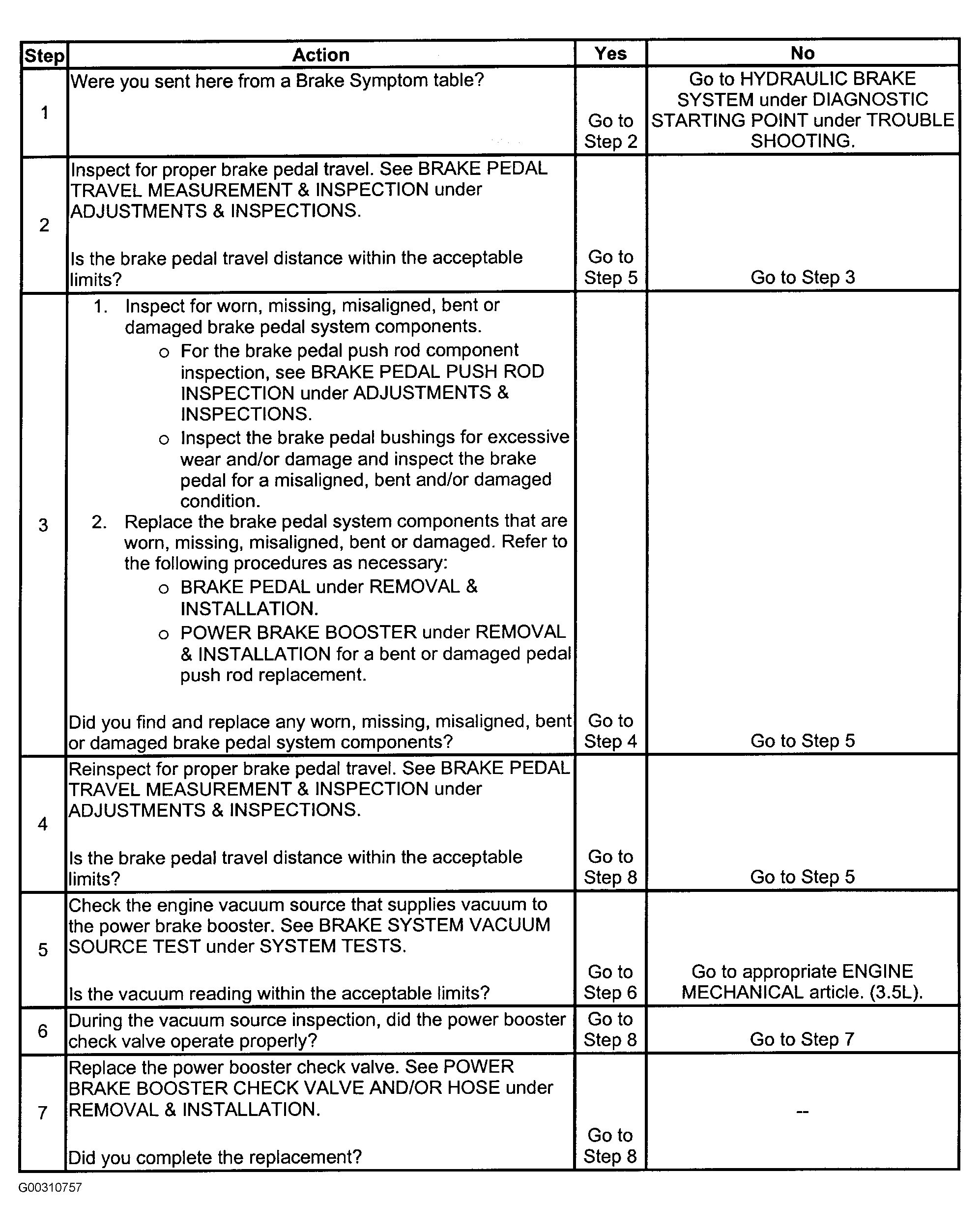

For brake assist system diagnosis, see Fig 1

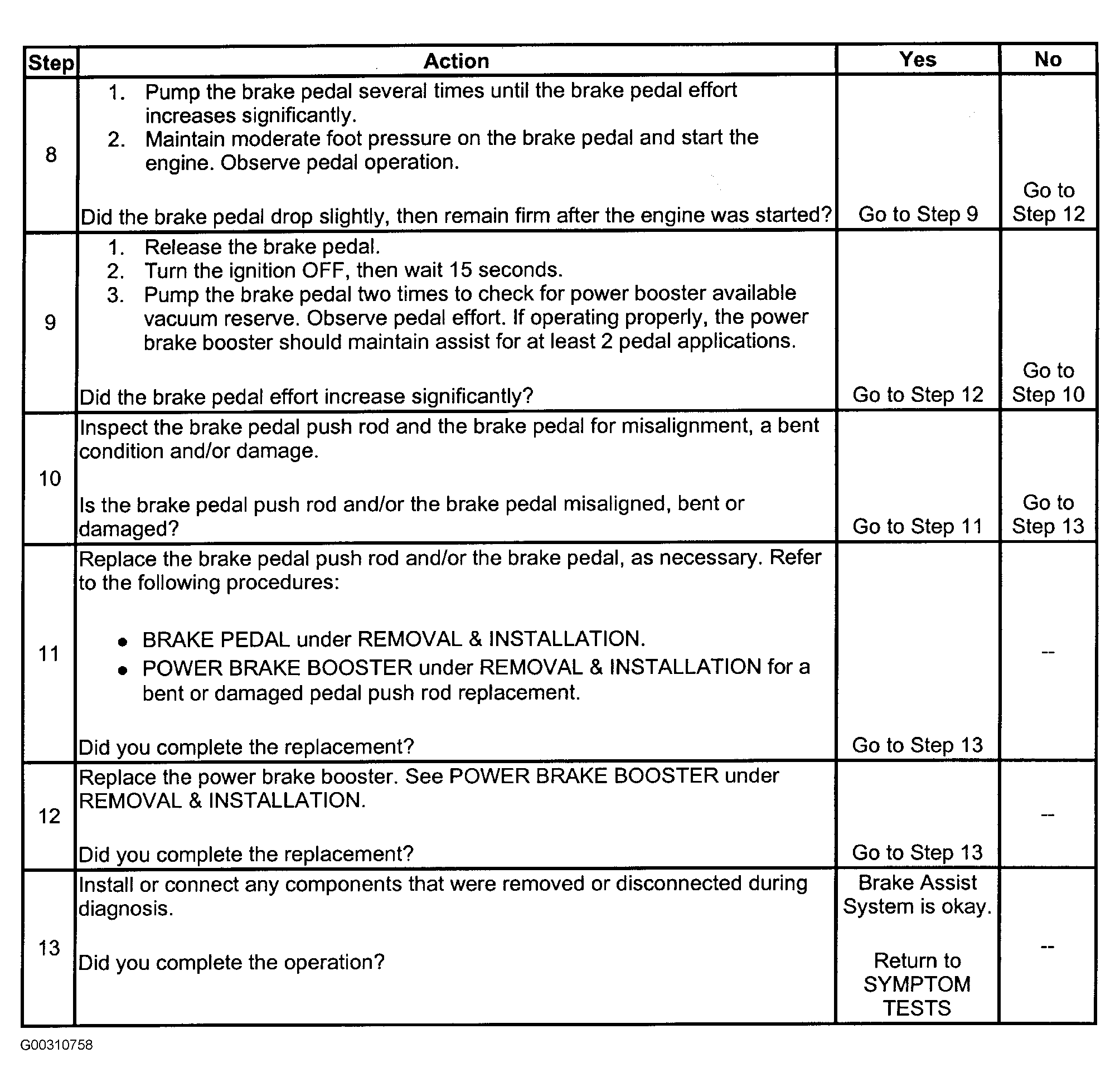

and Fig 2
.
