Symptom Diagnosis

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform PRELIMINARY INSPECTION prior to diagnosing by symptom.

NOTE: Use the following symptoms to aid in preliminary diagnosis. If a listed symptom matches the customer's concern, check the applicable items for possible cause.

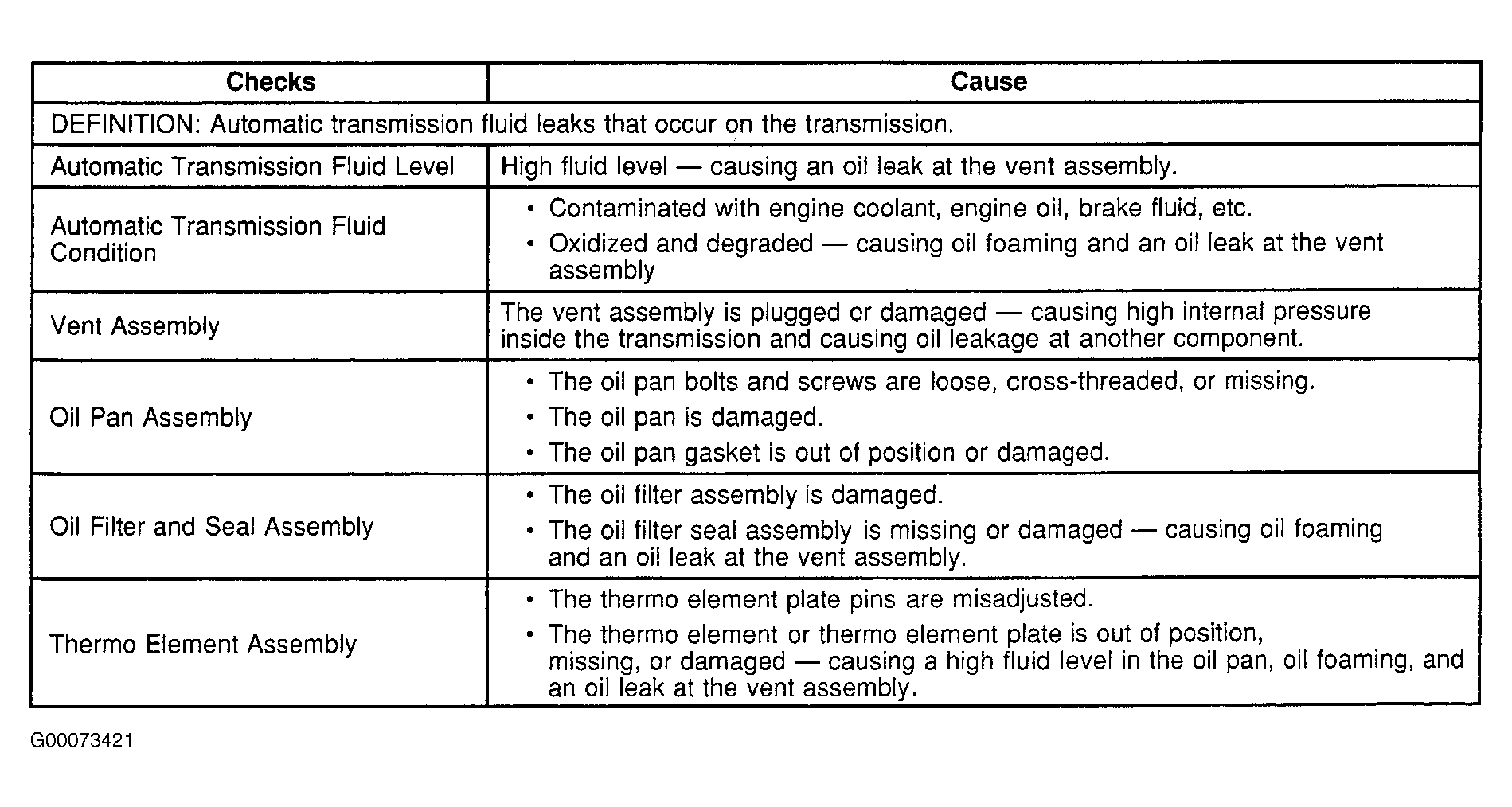

Fig 1: Automatic Transmission Fluid Leaks (1 Of 2)

G00073421

Courtesy of GENERAL MOTORS CORP.

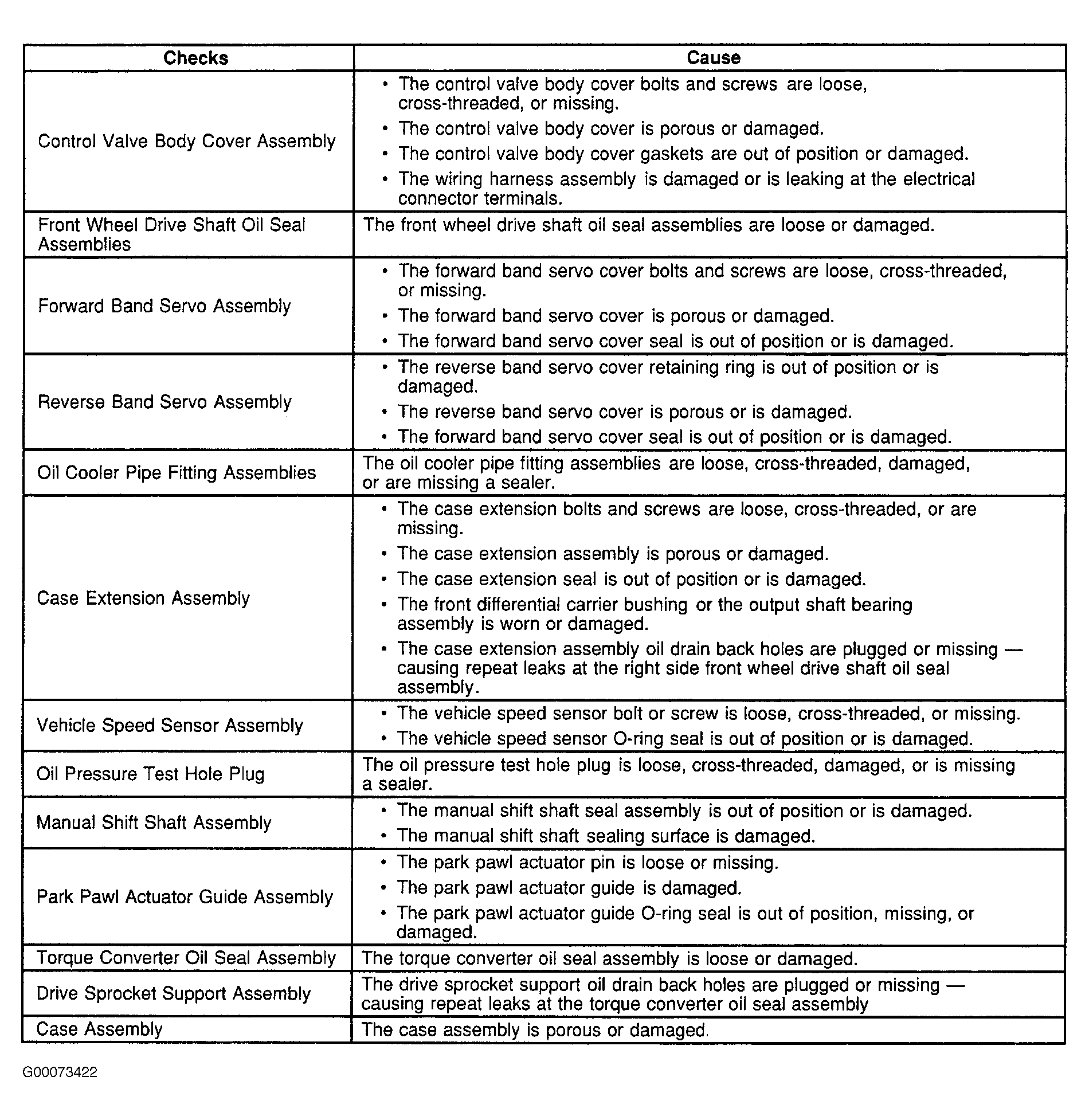

Fig 2: Automatic Transmission Fluid Leaks (2 Of 2)

G00073422

Courtesy of GENERAL MOTORS CORP.

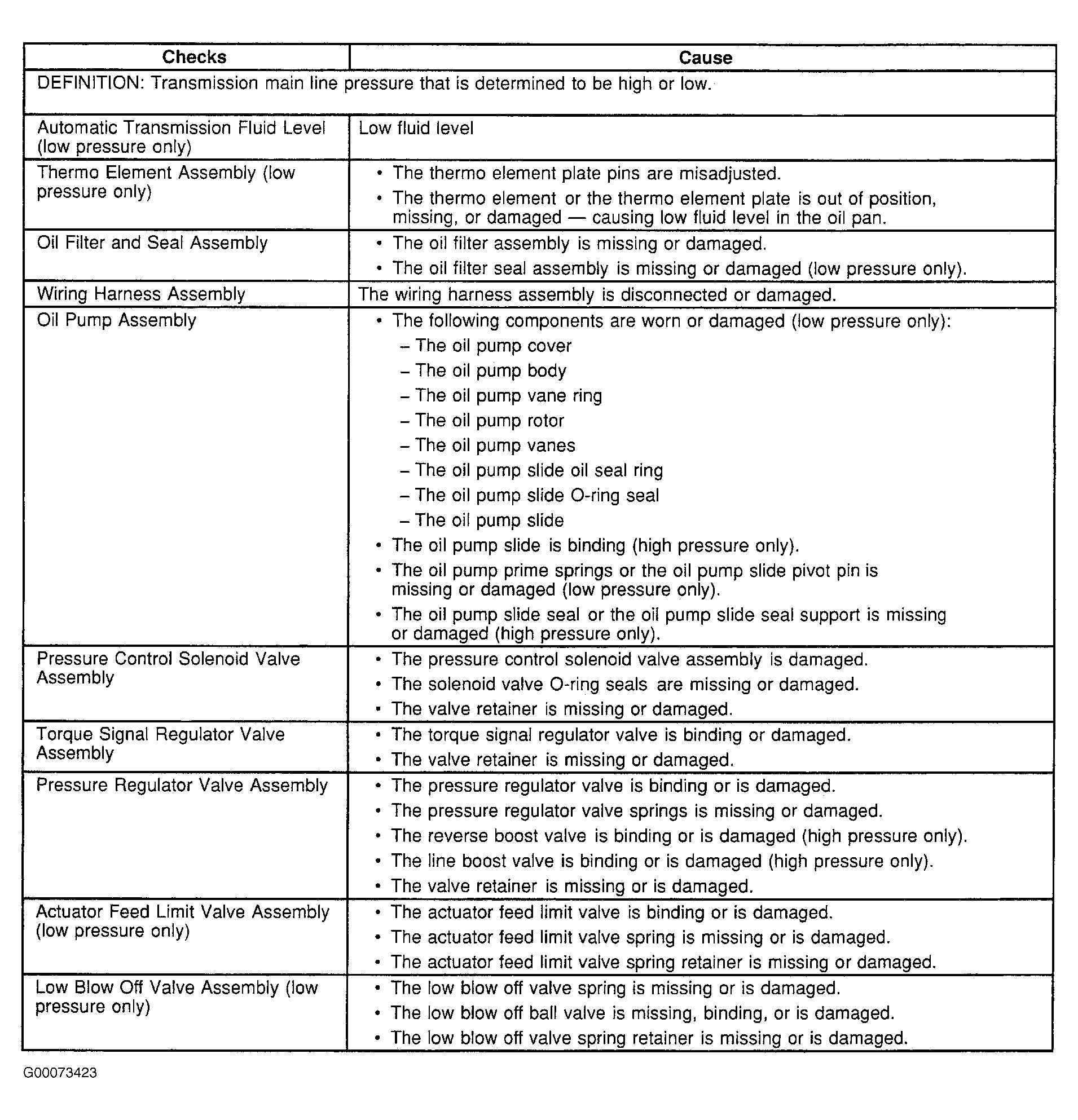

Fig 3: Incorrect Line Pressure

G00073423

Courtesy of GENERAL MOTORS CORP.

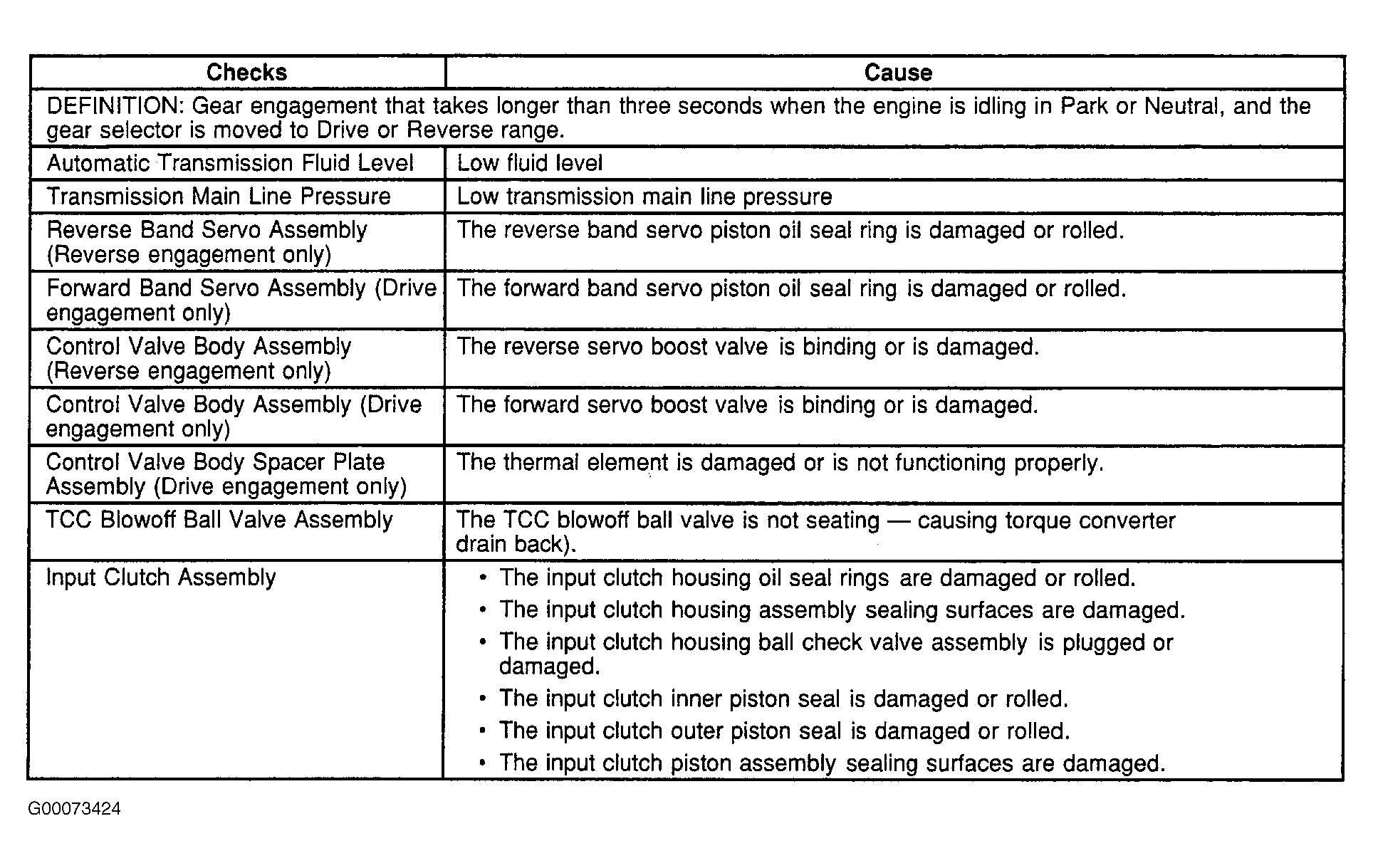

Fig 4: Delayed Park To Reverse/Drive Engagement

G00073424

Courtesy of GENERAL MOTORS CORP.

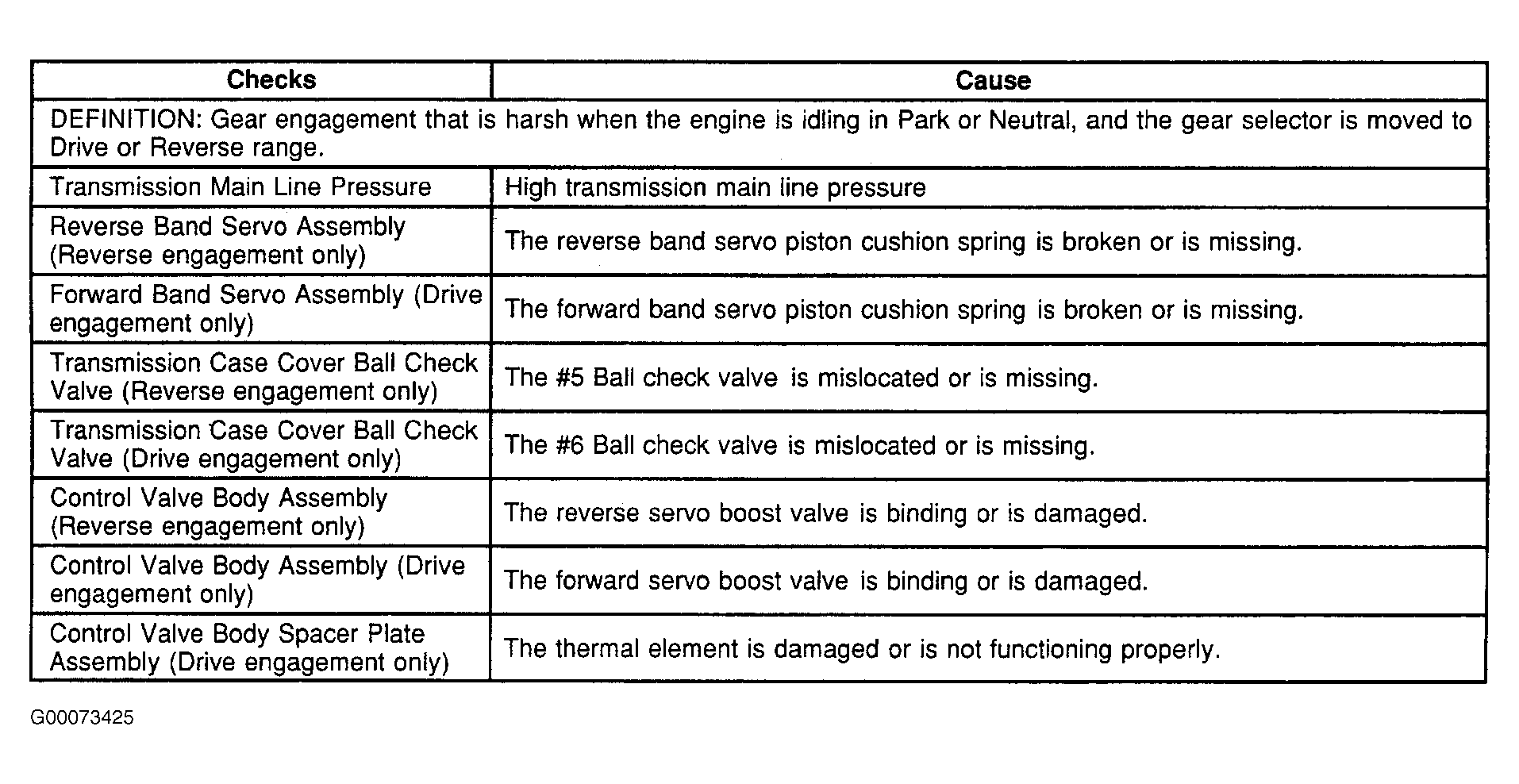

Fig 5: Harsh Park To Reverse/Drive Engagement

G00073425

Courtesy of GENERAL MOTORS CORP.

Fig 6: Slips In Drive Or No Drive

G00073426

Courtesy of GENERAL MOTORS CORP.

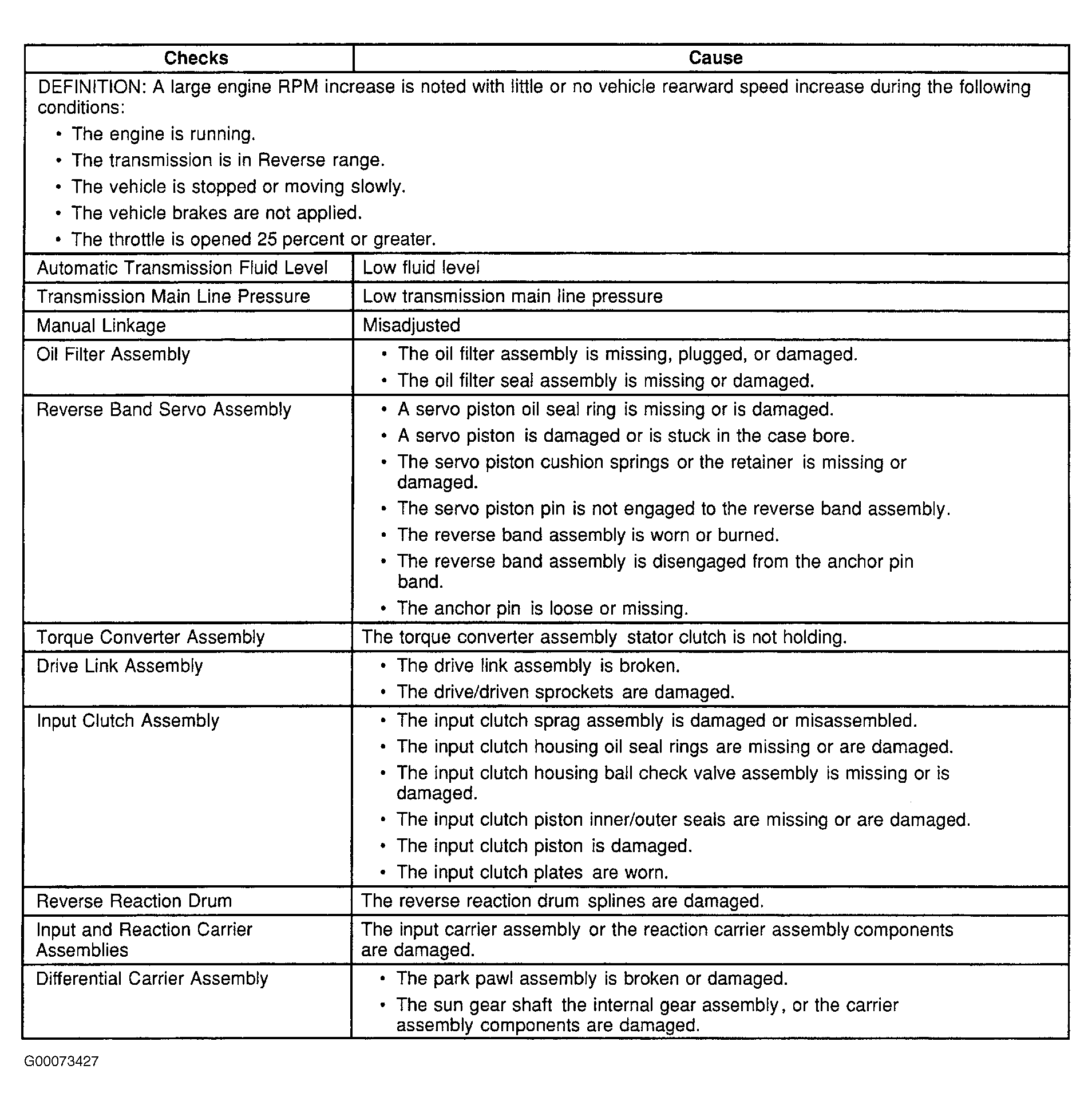

Fig 7: Slips In Reverse Or No Reverse

G00073427

Courtesy of GENERAL MOTORS CORP.

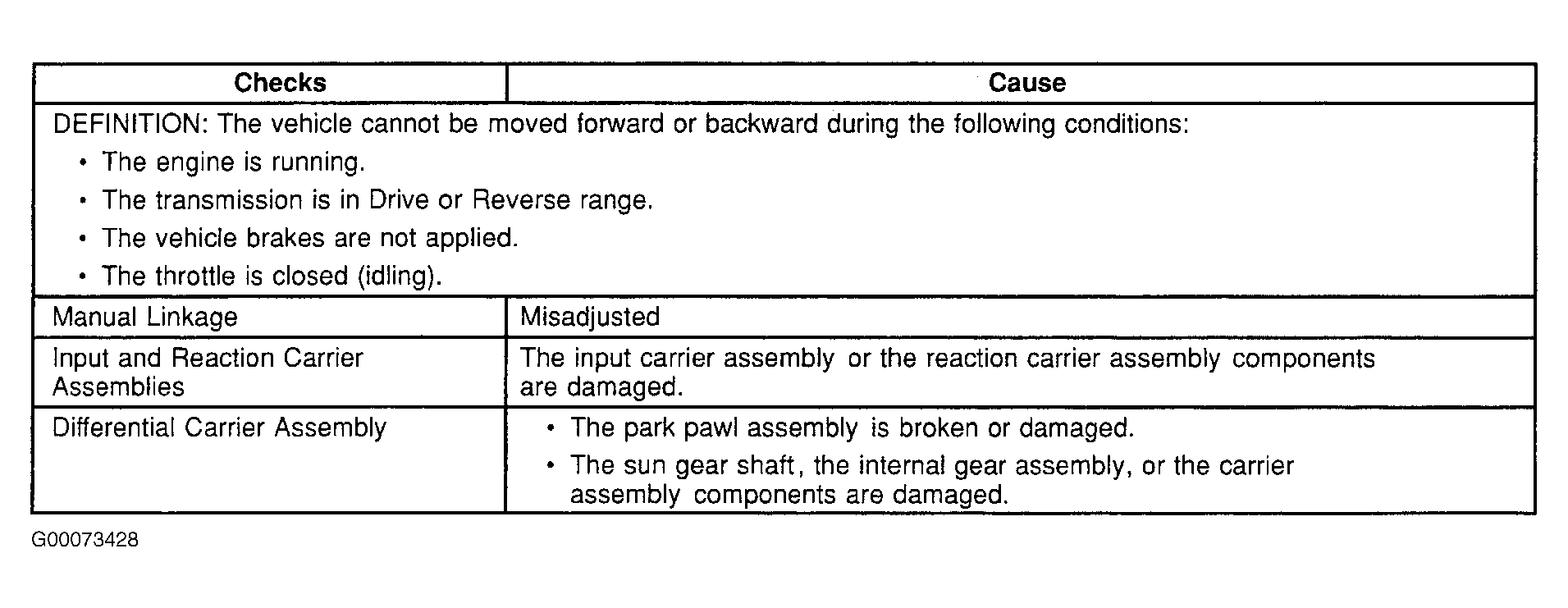

Fig 8: Locked Up In Drive/Reverse

G00073428

Courtesy of GENERAL MOTORS CORP.

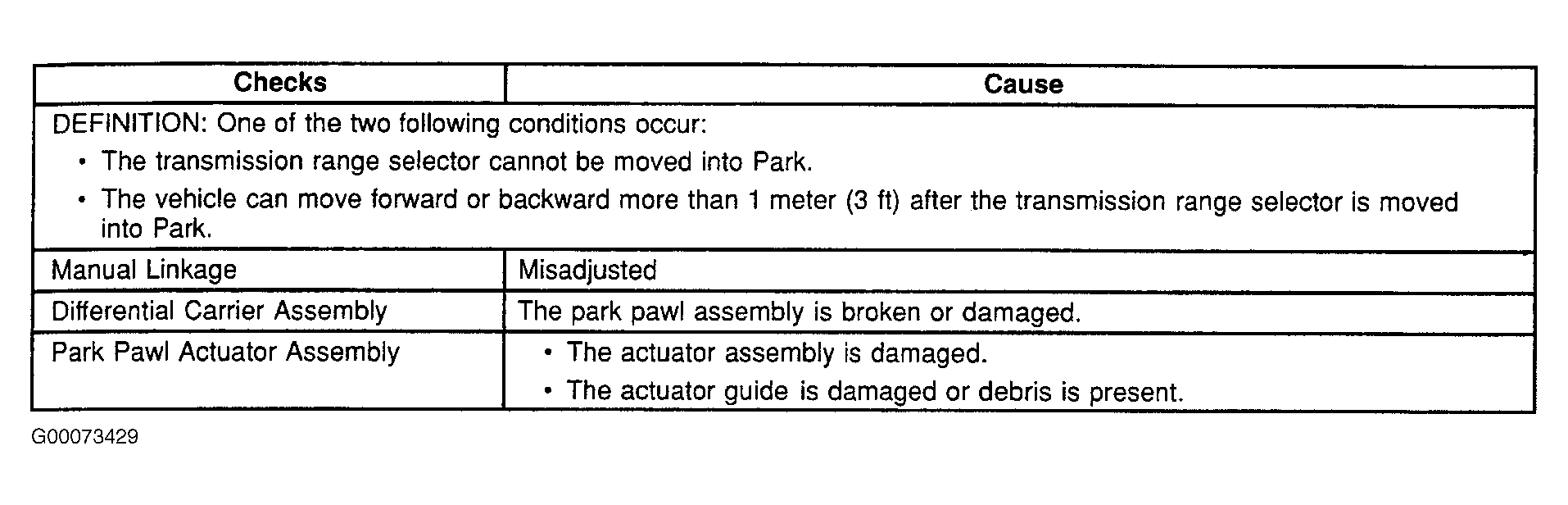

Fig 9: No Park Range

G00073429

Courtesy of GENERAL MOTORS CORP.

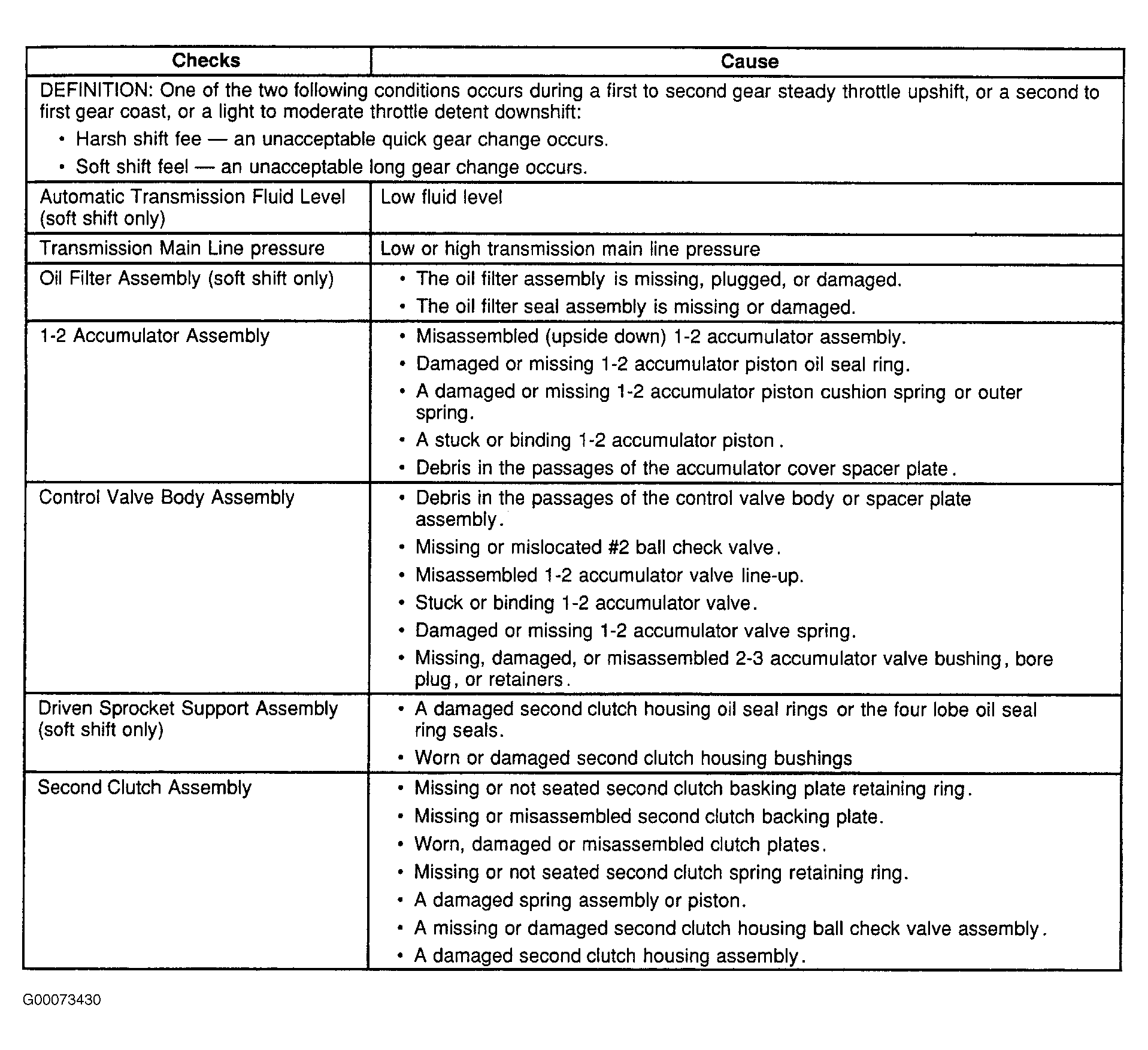

Fig 10: Harsh Or Soft 1-2 Shift Feel

G00073430

Courtesy of GENERAL MOTORS CORP.

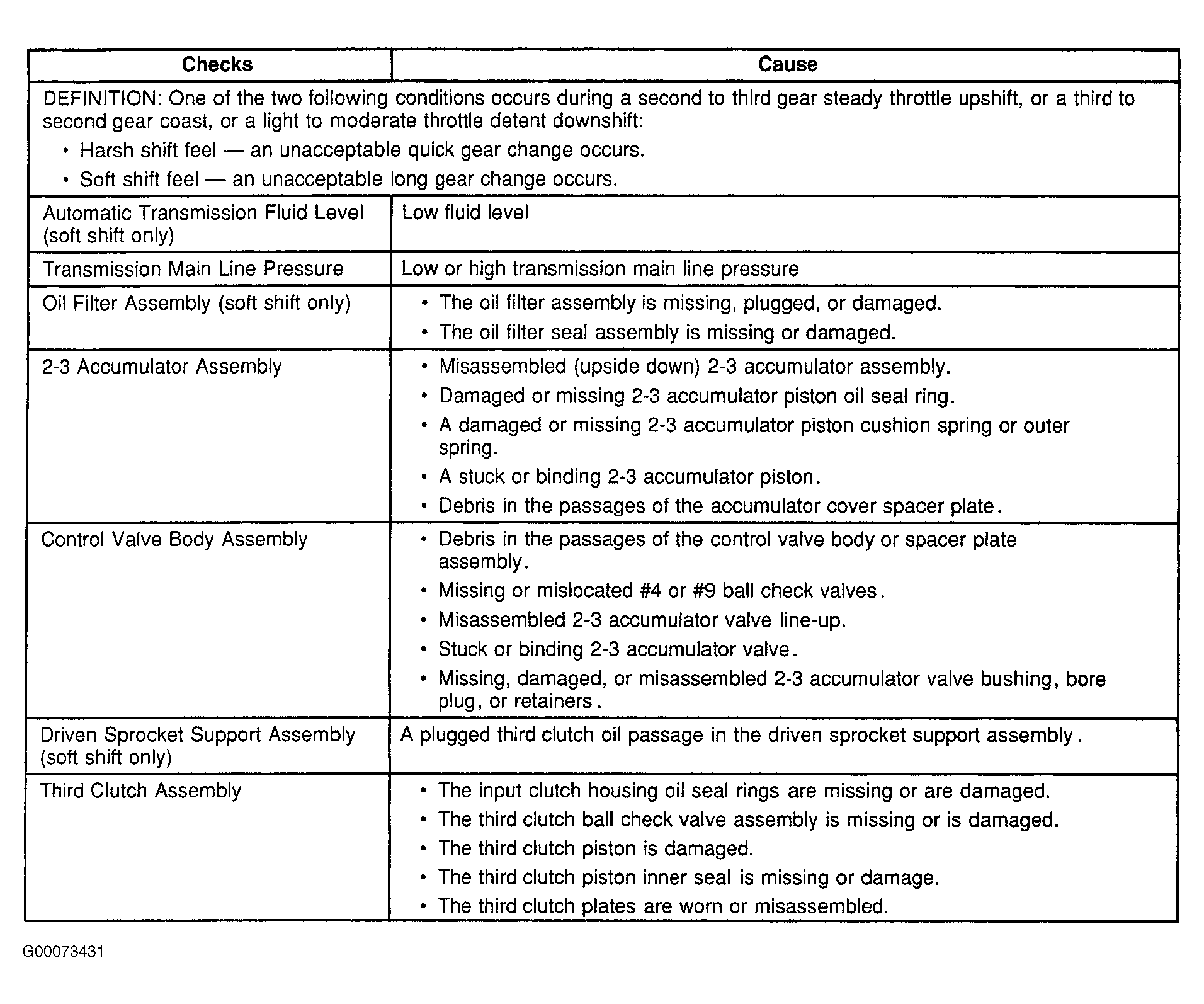

Fig 11: Harsh Or Soft 2-3/3-2 Shift Feel

G00073431

Courtesy of GENERAL MOTORS CORP.

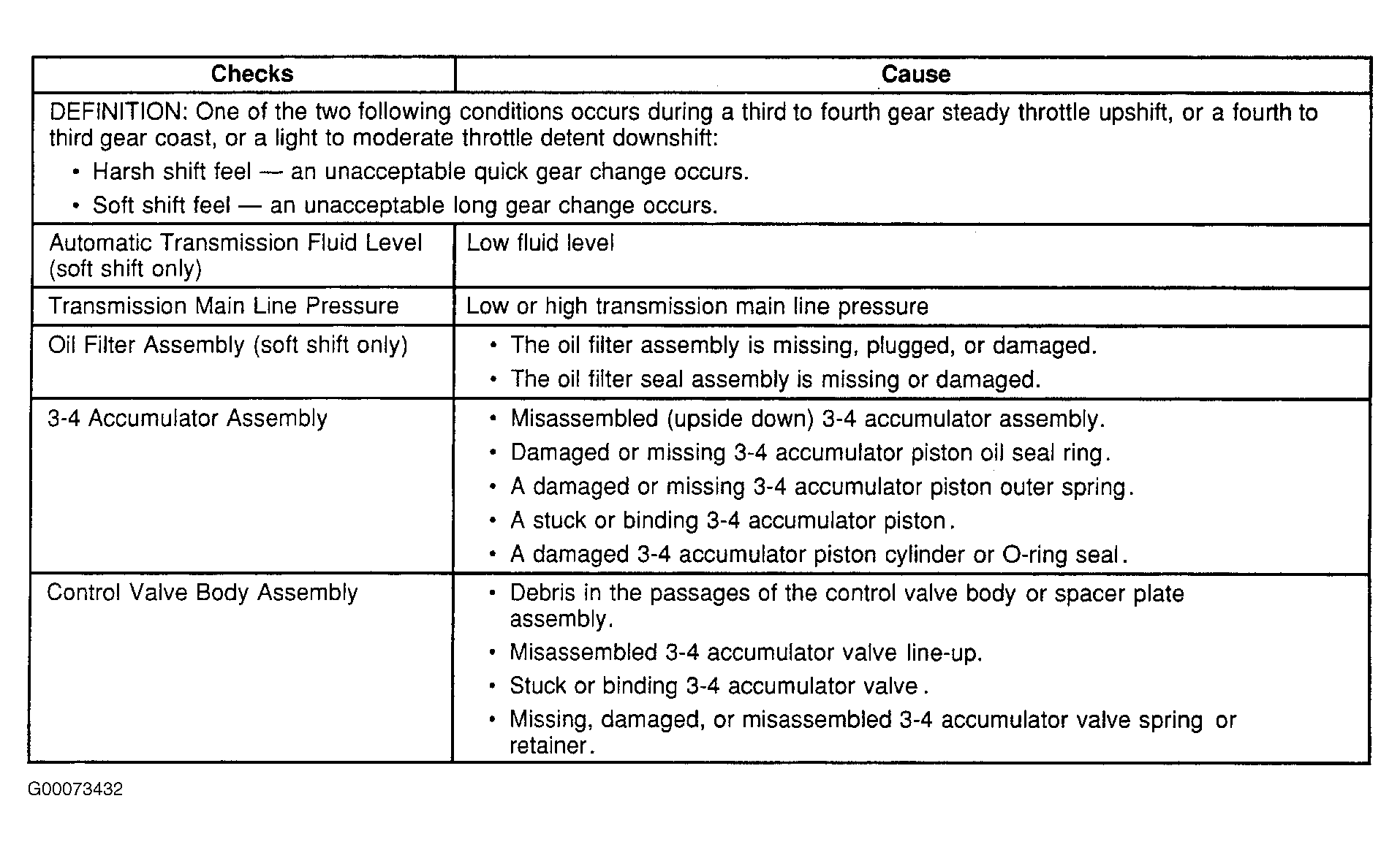

Fig 12: Harsh Or Soft 3-4/4-3 Shift Feel (1 Of 2)

G00073432

Courtesy of GENERAL MOTORS CORP.

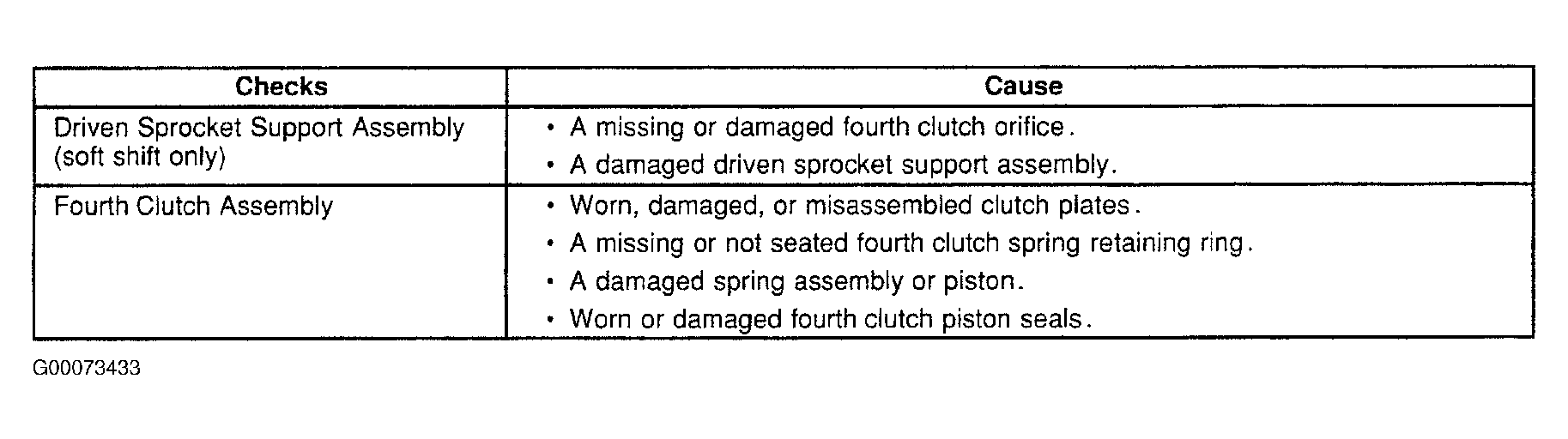

Fig 13: Harsh Or Soft 3-4/4-3 Shift Feel (2 Of 2)

G00073433

Courtesy of GENERAL MOTORS CORP.

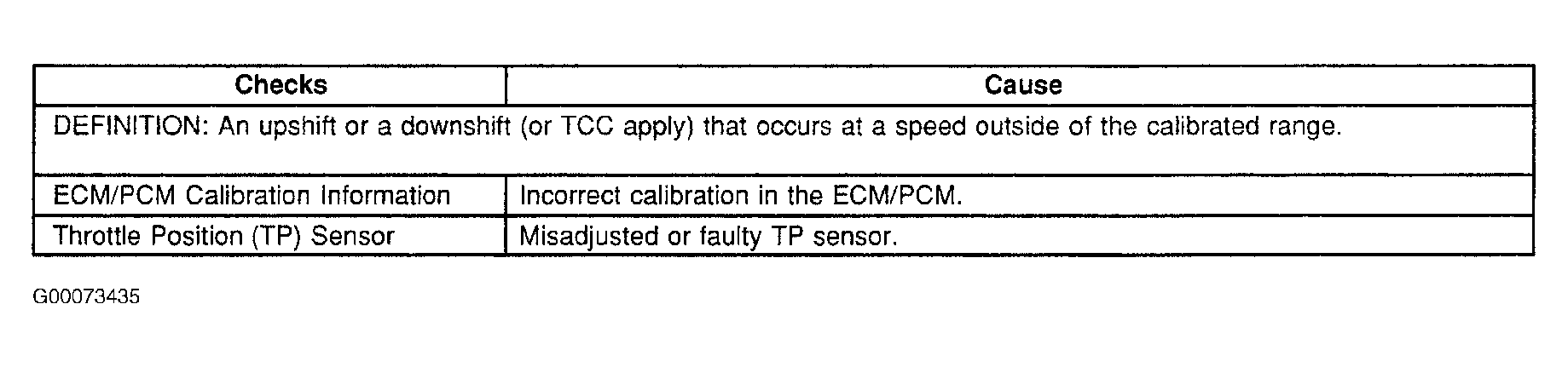

Fig 14: High Or Low Upshift Or Downshift Speed

G00073435

Courtesy of GENERAL MOTORS CORP.

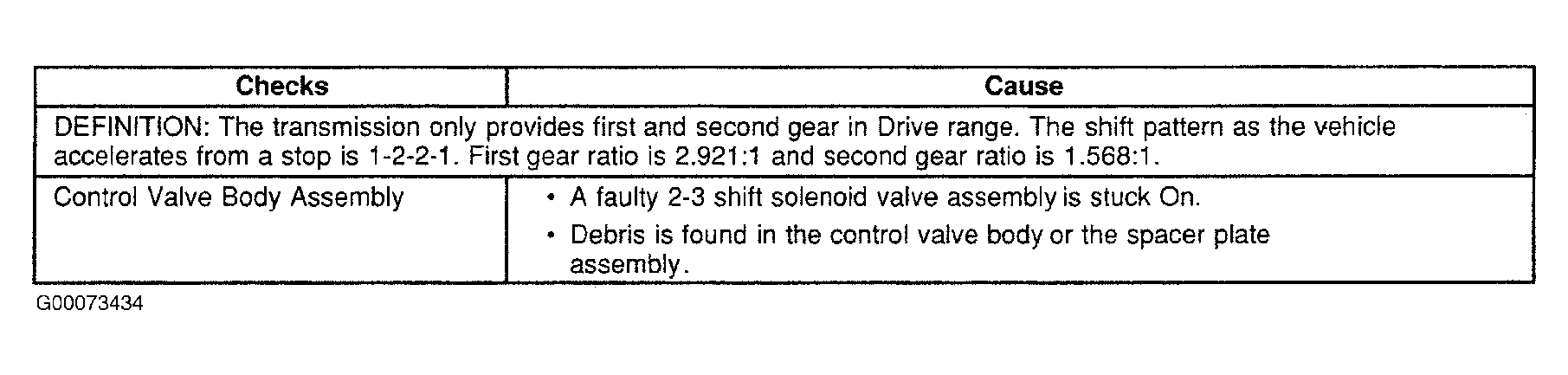

Fig 15: 1st & 2nd Gear Only (2-3 Solenoid Stuck On)

G00073434

Courtesy of GENERAL MOTORS CORP.

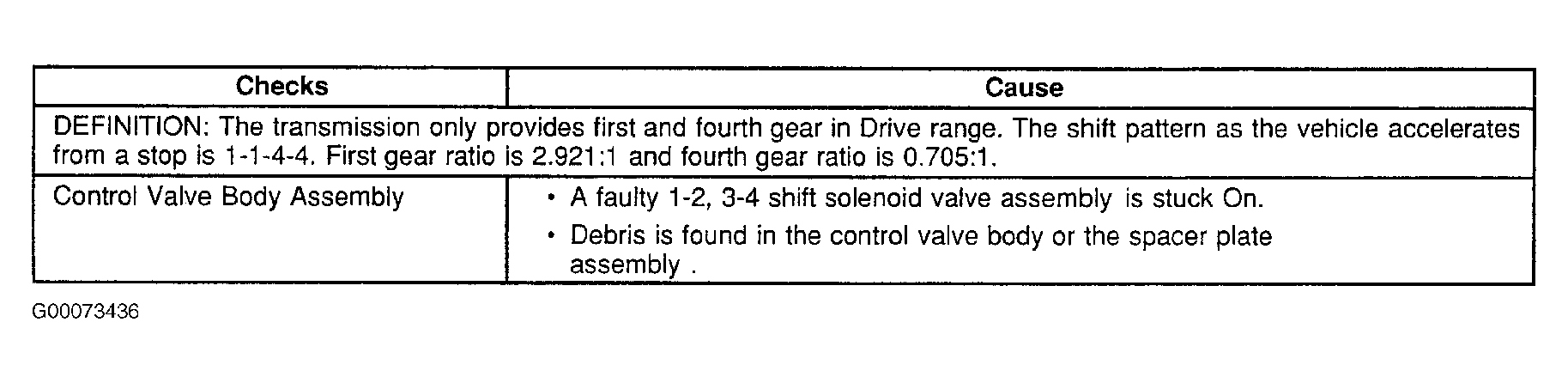

Fig 16: 1st & Forth Gear Only (1-2 Solenoid Stuck On)

G00073436

Courtesy of GENERAL MOTORS CORP.

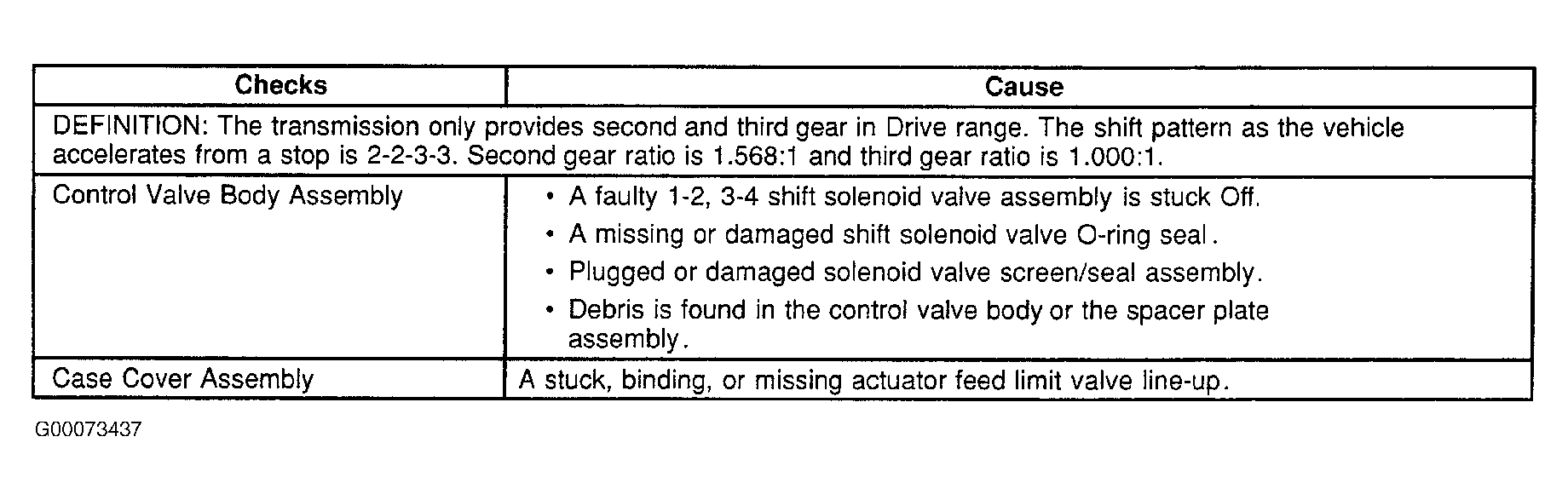

Fig 17: 2nd & 3rd Gear Only (1-2 Solenoid Stuck Off)

G00073437

Courtesy of GENERAL MOTORS CORP.

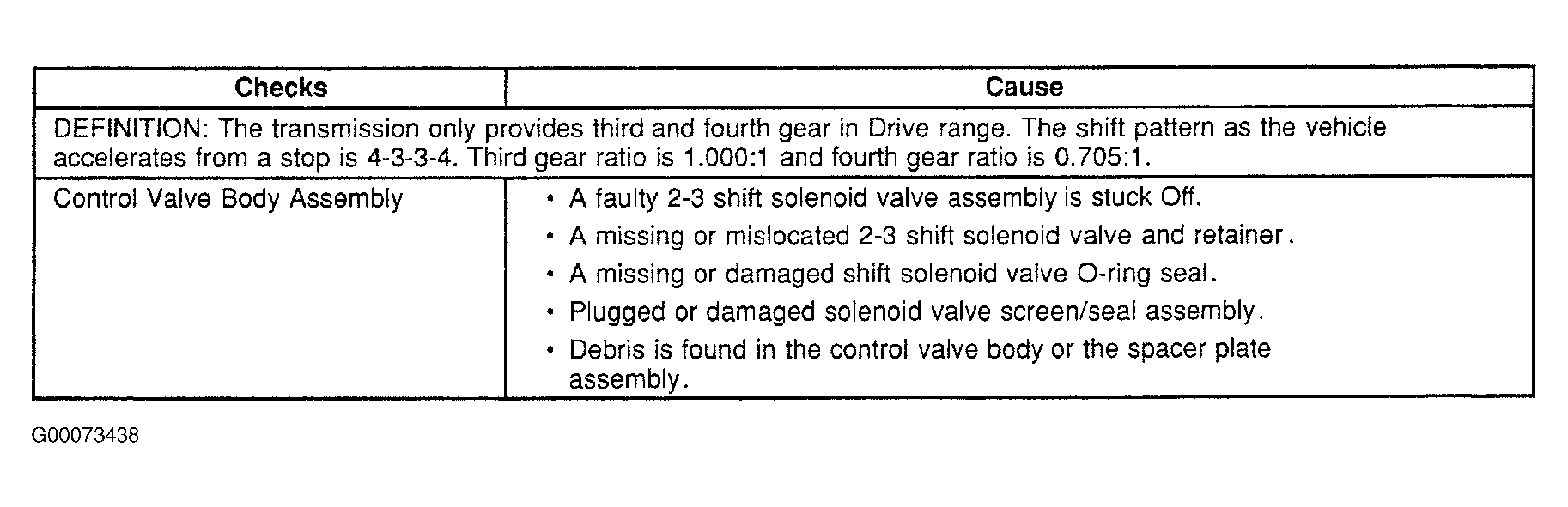

Fig 18: 3rd & 4th Gear Only (2-3 Solenoid Stuck Off)

G00073438

Courtesy of GENERAL MOTORS CORP.

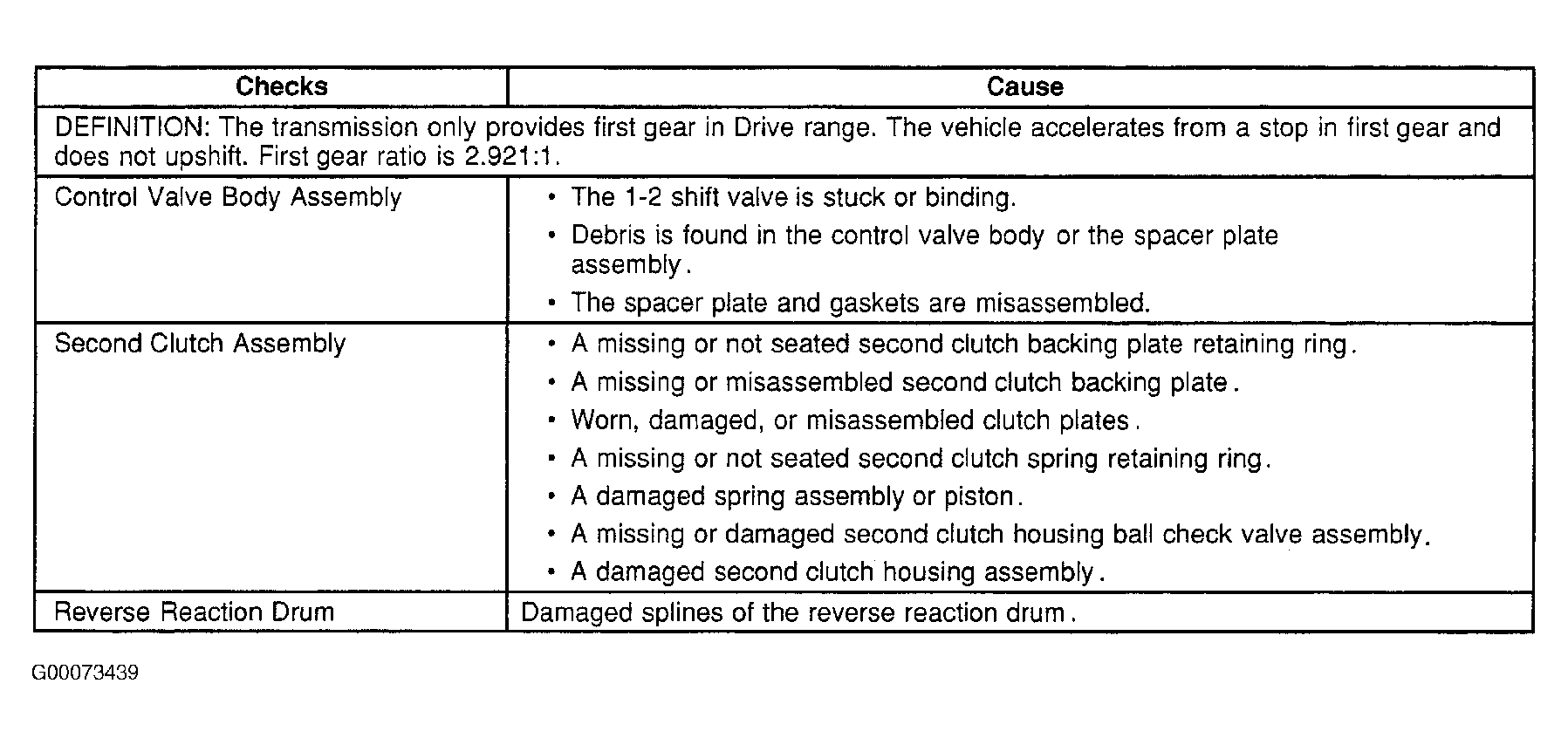

Fig 19: 1st Gear Only

G00073439

Courtesy of GENERAL MOTORS CORP.

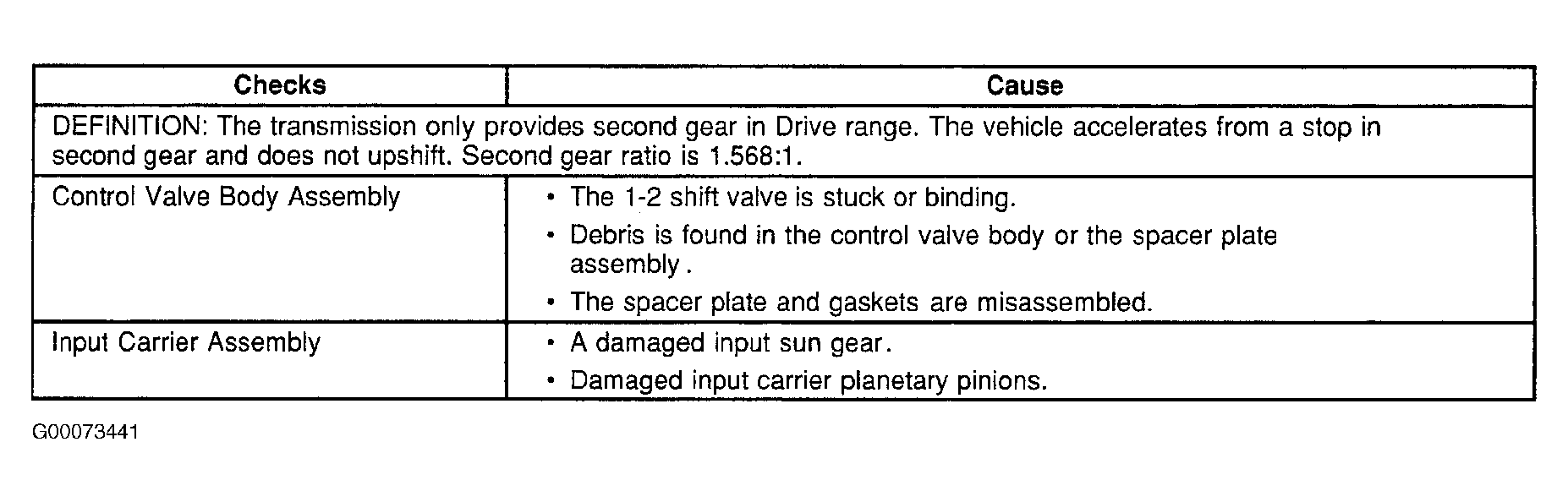

Fig 20: 2nd Gear Only

G00073441

Courtesy of GENERAL MOTORS CORP.

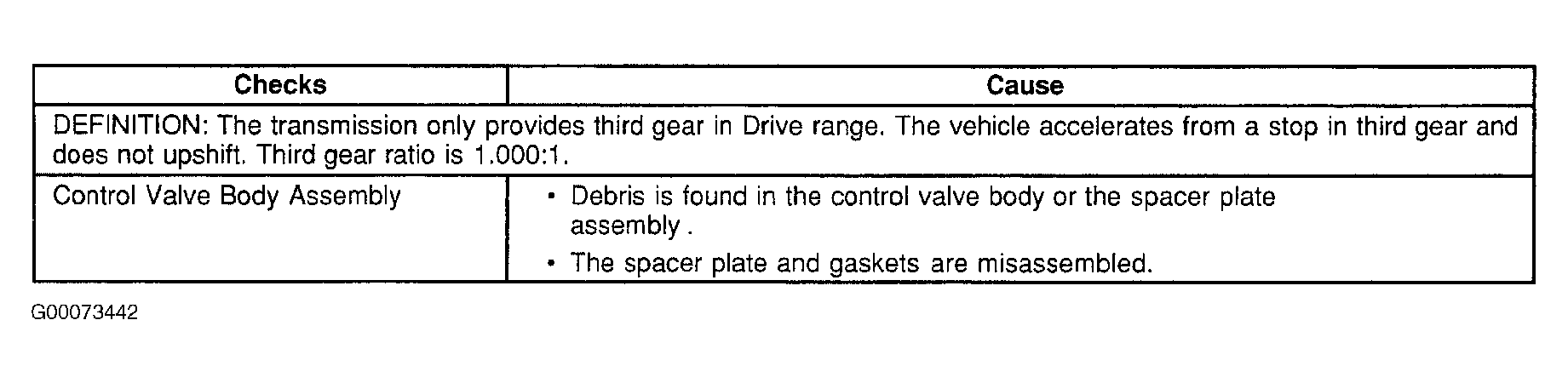

Fig 21: 3rd Gear Only

G00073442

Courtesy of GENERAL MOTORS CORP.

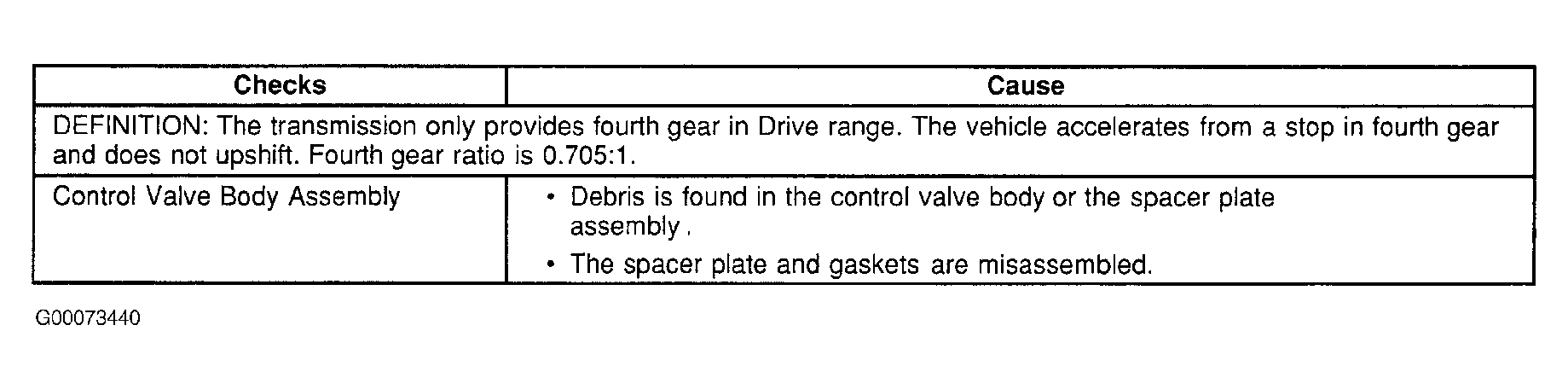

Fig 22: 4th Gear Only

G00073440

Courtesy of GENERAL MOTORS CORP.

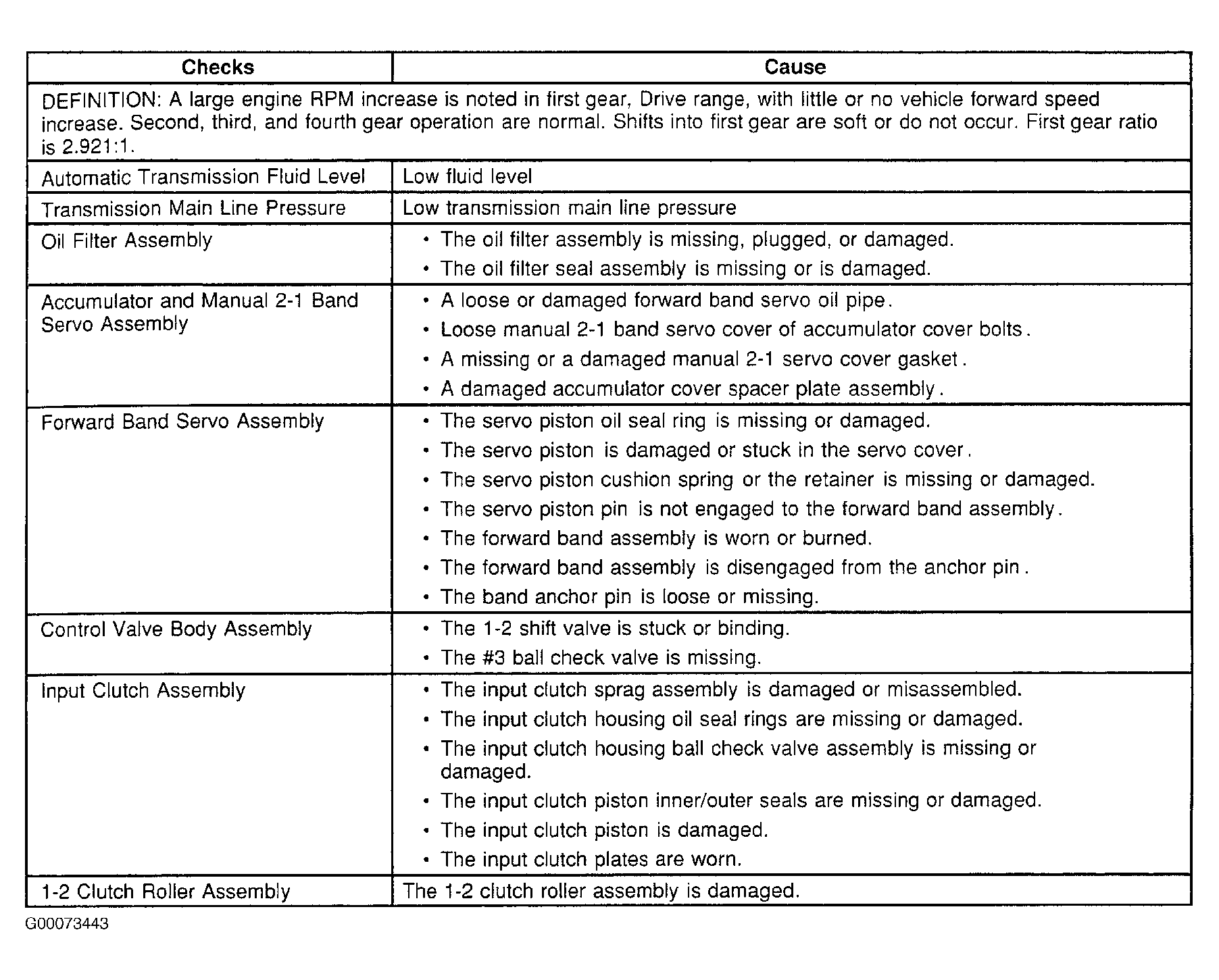

Fig 23: Slipping Or No 1st Gear

G00073443

Courtesy of GENERAL MOTORS CORP.

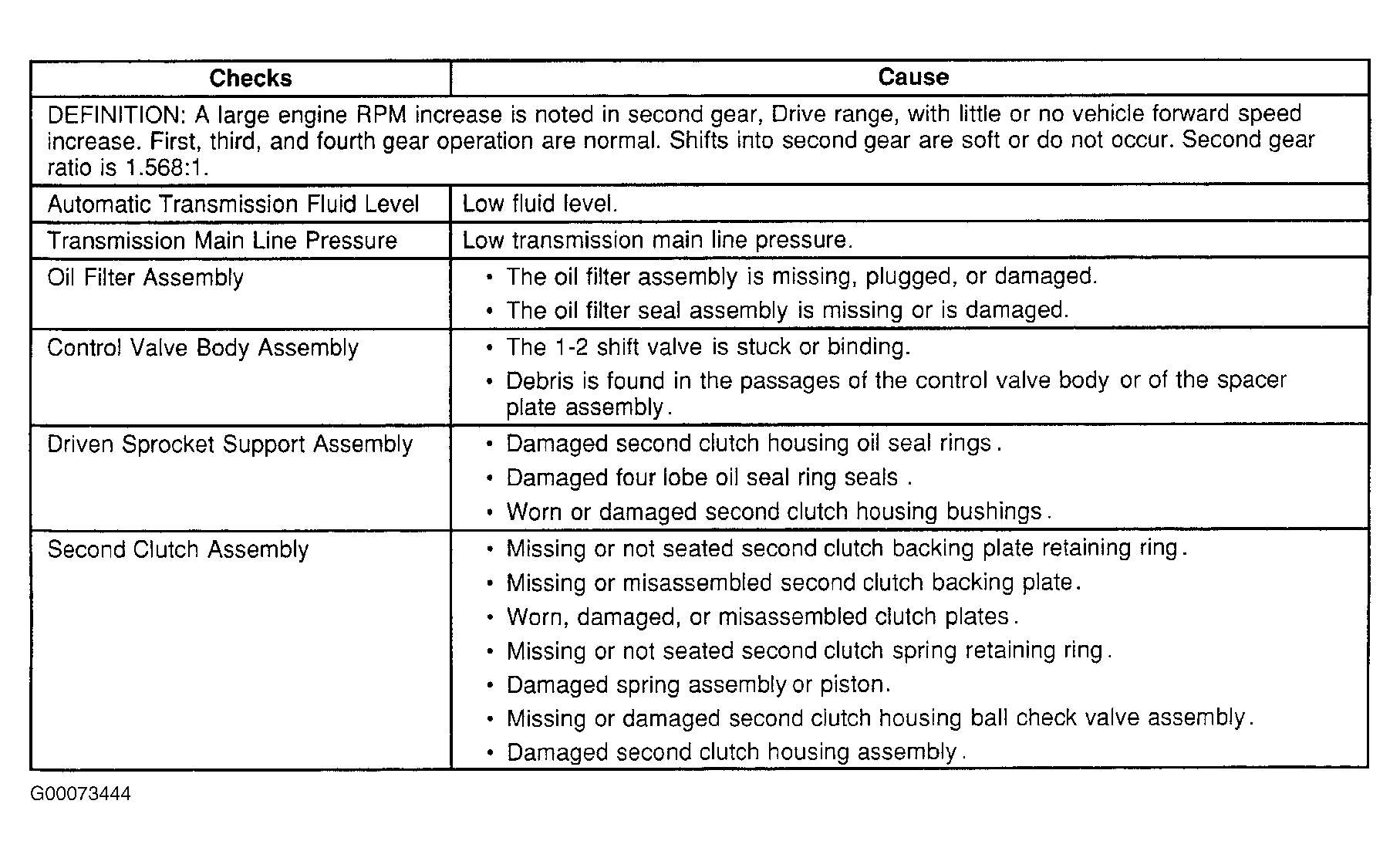

Fig 24: Slipping Or No 2nd Gear

G00073444

Courtesy of GENERAL MOTORS CORP.

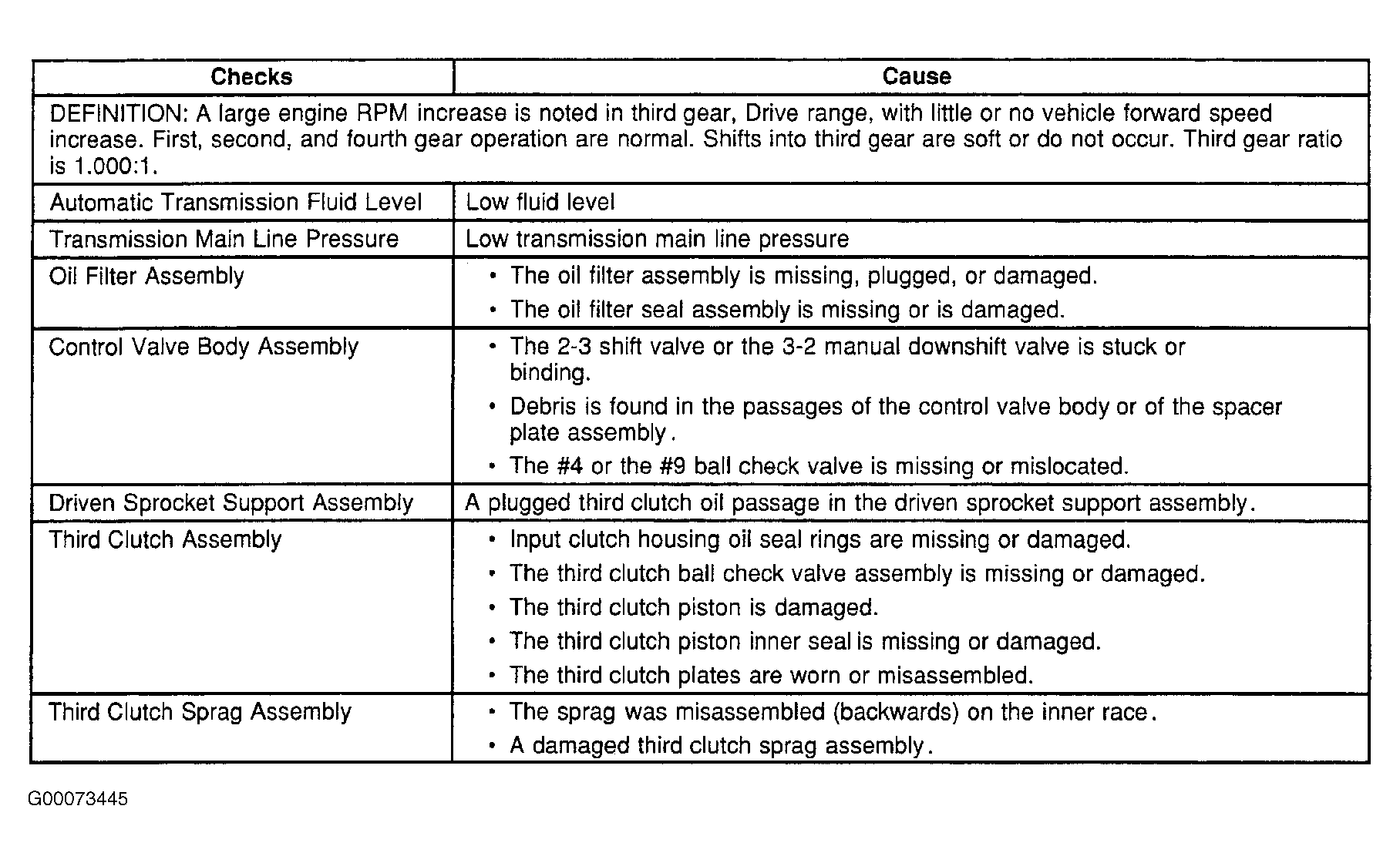

Fig 25: Slipping Or No 3rd Gear

G00073445

Courtesy of GENERAL MOTORS CORP.

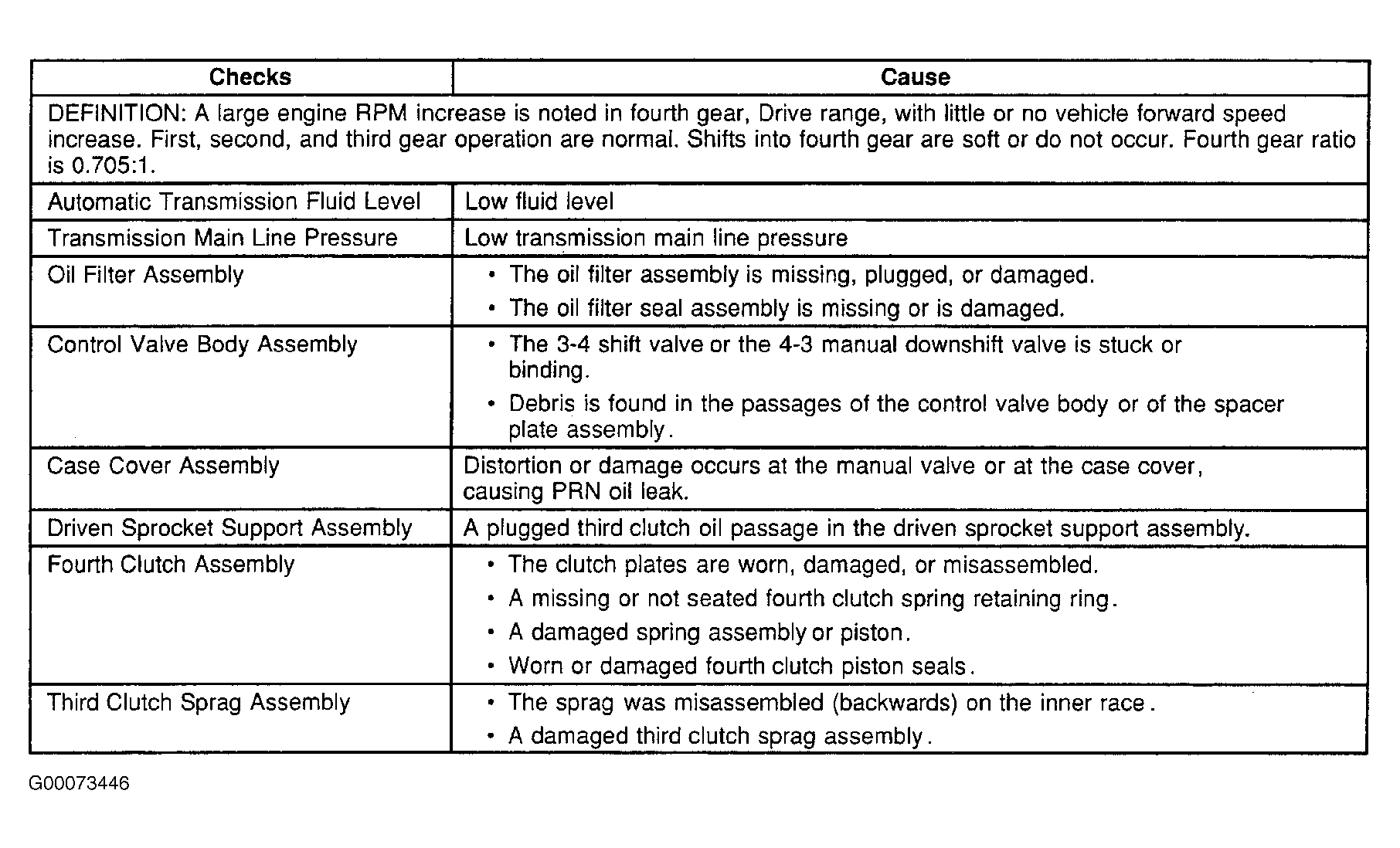

Fig 26: Slipping Or No 4th Gear

G00073446

Courtesy of GENERAL MOTORS CORP.

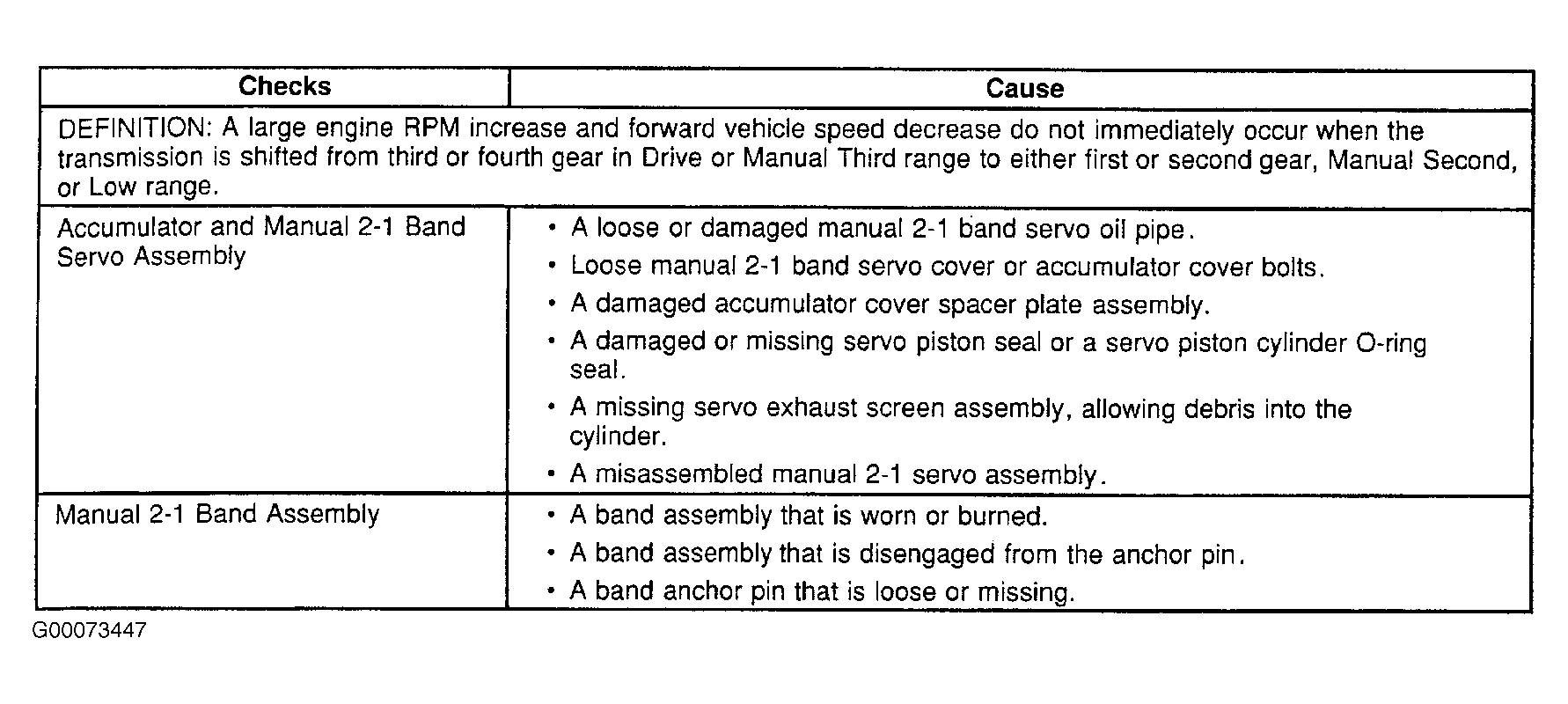

Fig 27: No Engine Braking In Manual 2nd Or Low Range

G00073447

Courtesy of GENERAL MOTORS CORP.

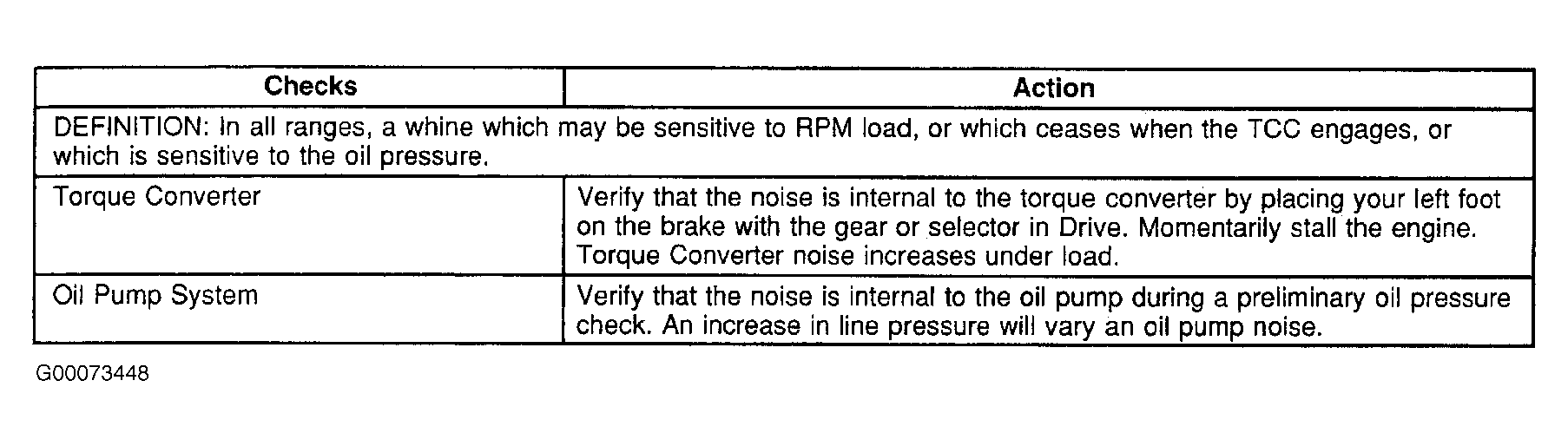

Fig 28: Whine Noise Varying With RPM Or Fluid Pressure

G00073448

Courtesy of GENERAL MOTORS CORP.

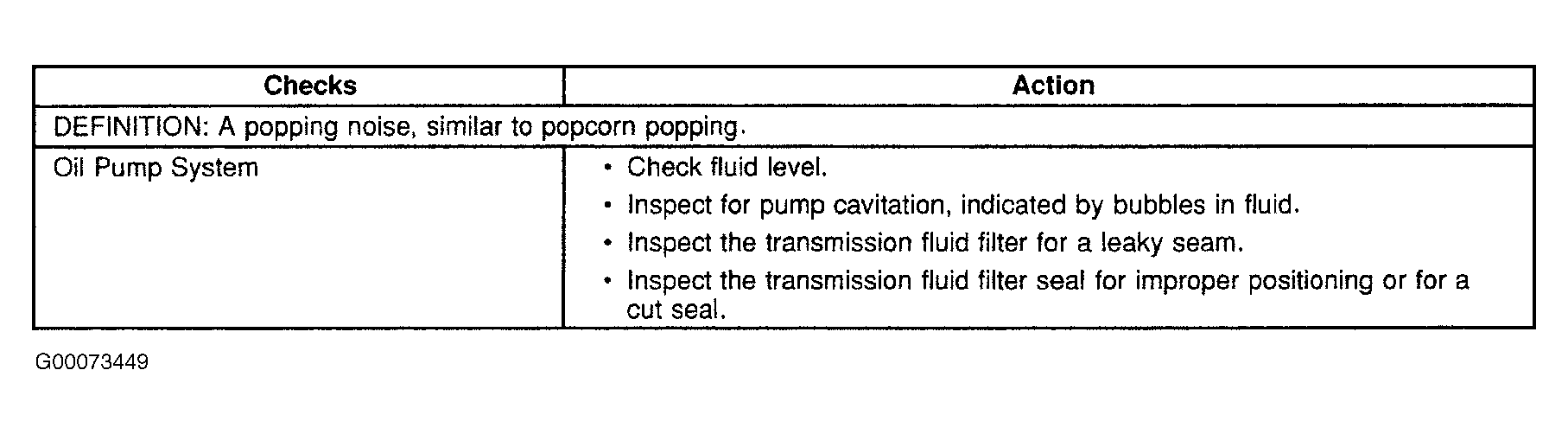

Fig 29: Popping Noise

G00073449

Courtesy of GENERAL MOTORS CORP.

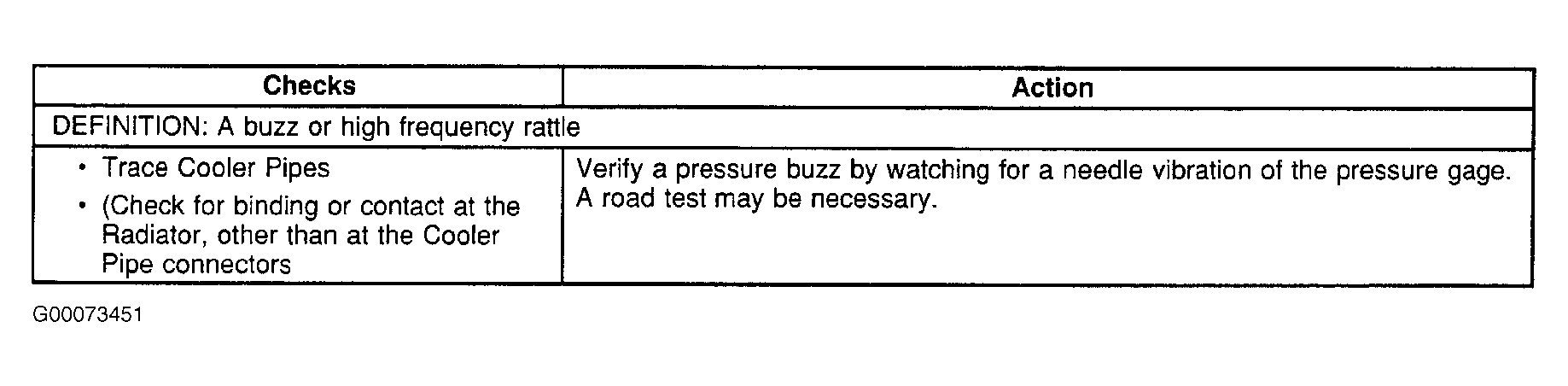

Fig 30: Buzz Noise Or High Frequency Rattle Sound

G00073451

Courtesy of GENERAL MOTORS CORP.

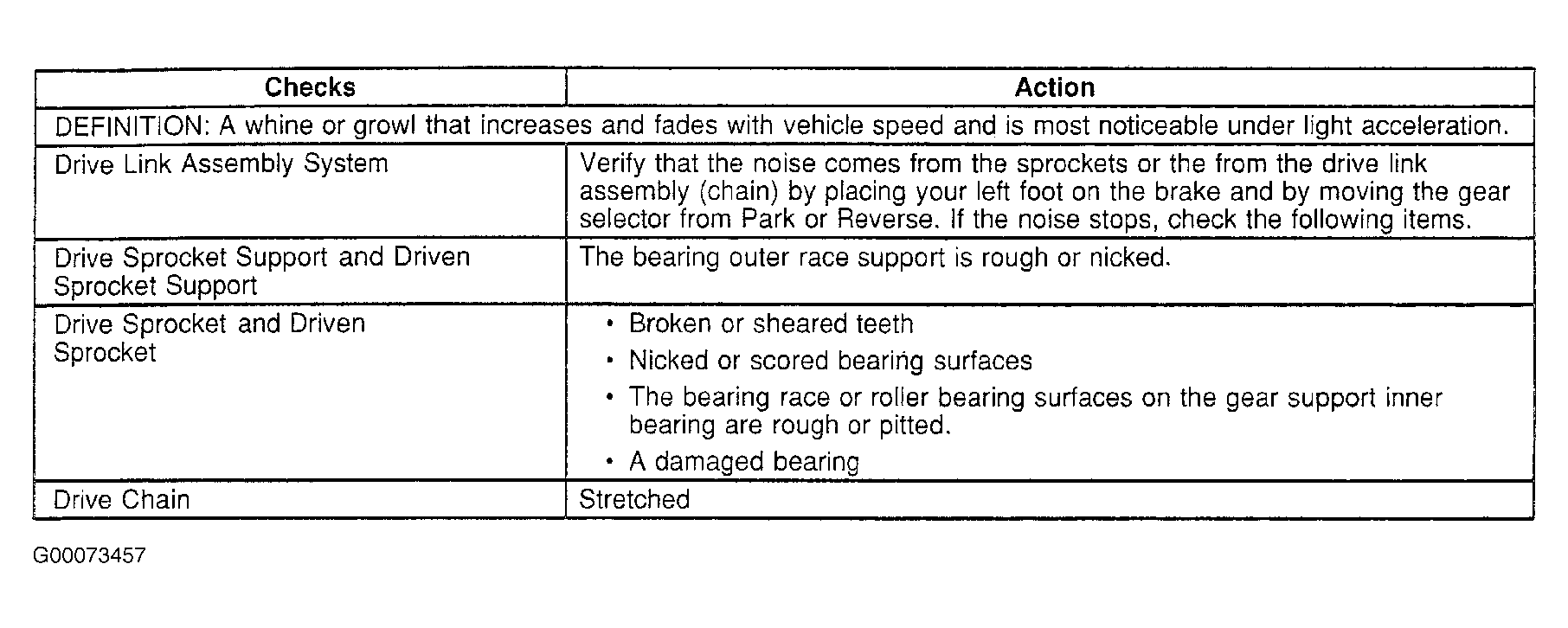

Fig 31: Whine/Growl Noise That Changes With Vehicle Speed

G00073457

Courtesy of GENERAL MOTORS CORP.

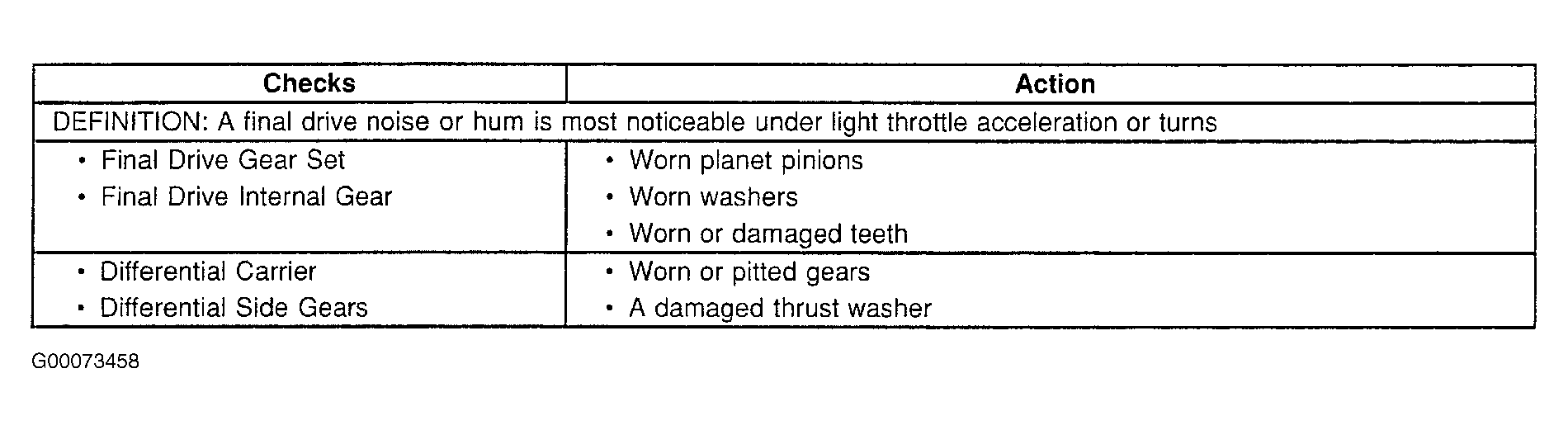

Fig 32: Final Drive Noise Or Hum Noise

G00073458

Courtesy of GENERAL MOTORS CORP.

Fig 33: Noise In 1st, 2nd, 3rd Or 4th

G00073459

Courtesy of GENERAL MOTORS CORP.

Fig 34: Noise In Random Ranges

G00073460

Courtesy of GENERAL MOTORS CORP.

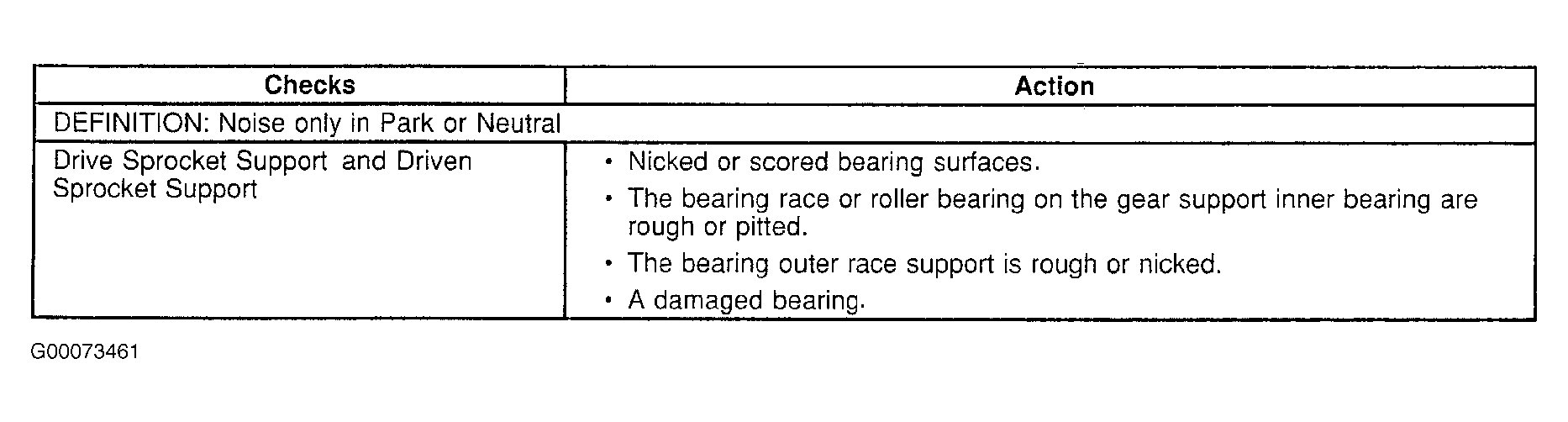

Fig 35: Abnormal Noise In Park Or Neutral

G00073461

Courtesy of GENERAL MOTORS CORP.

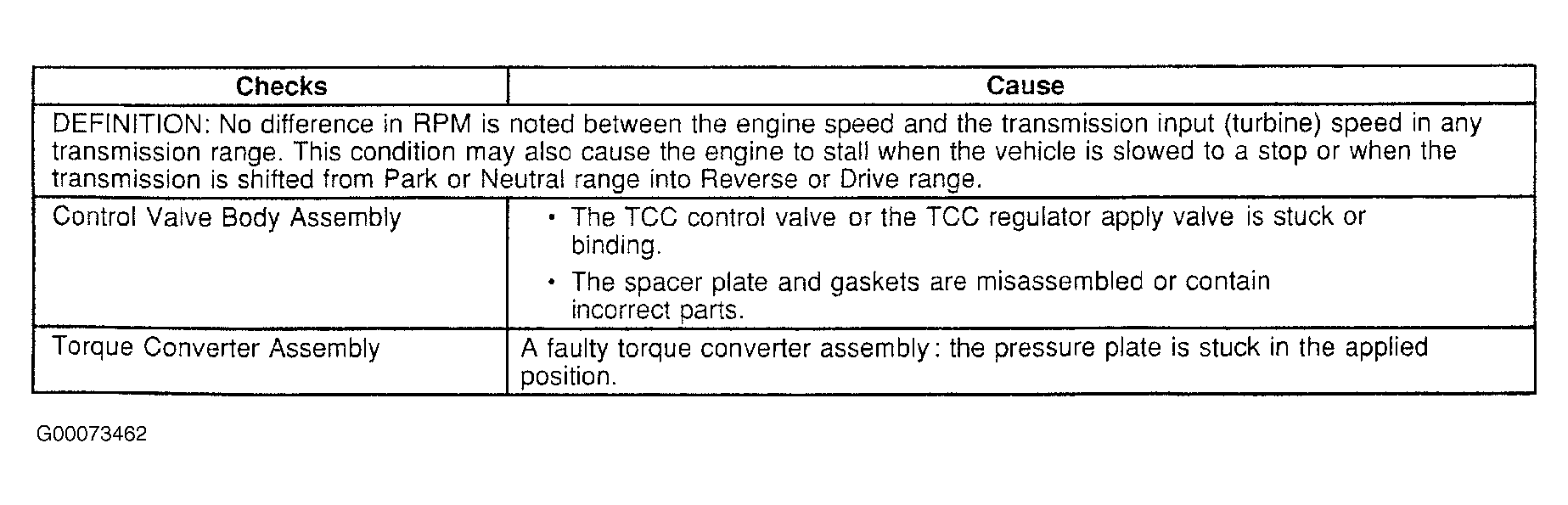

Fig 36: TCC Stuck On In All Gears

G00073462

Courtesy of GENERAL MOTORS CORP.

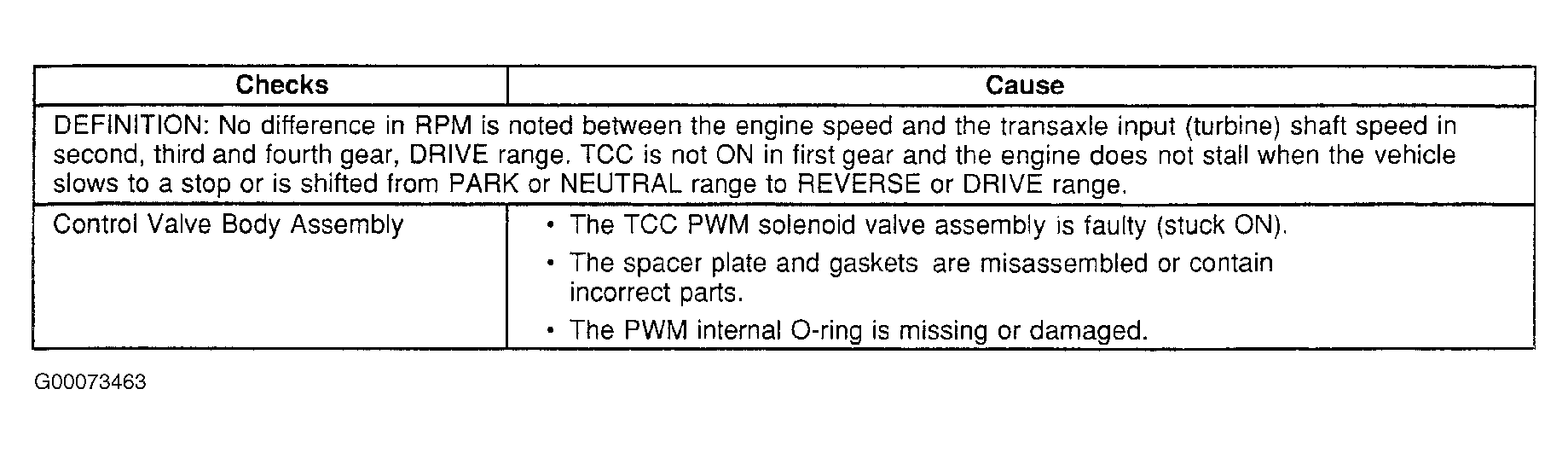

Fig 37: TCC Stuck On In 2nd, 3rd & 4th Gear

G00073463

Courtesy of GENERAL MOTORS CORP.

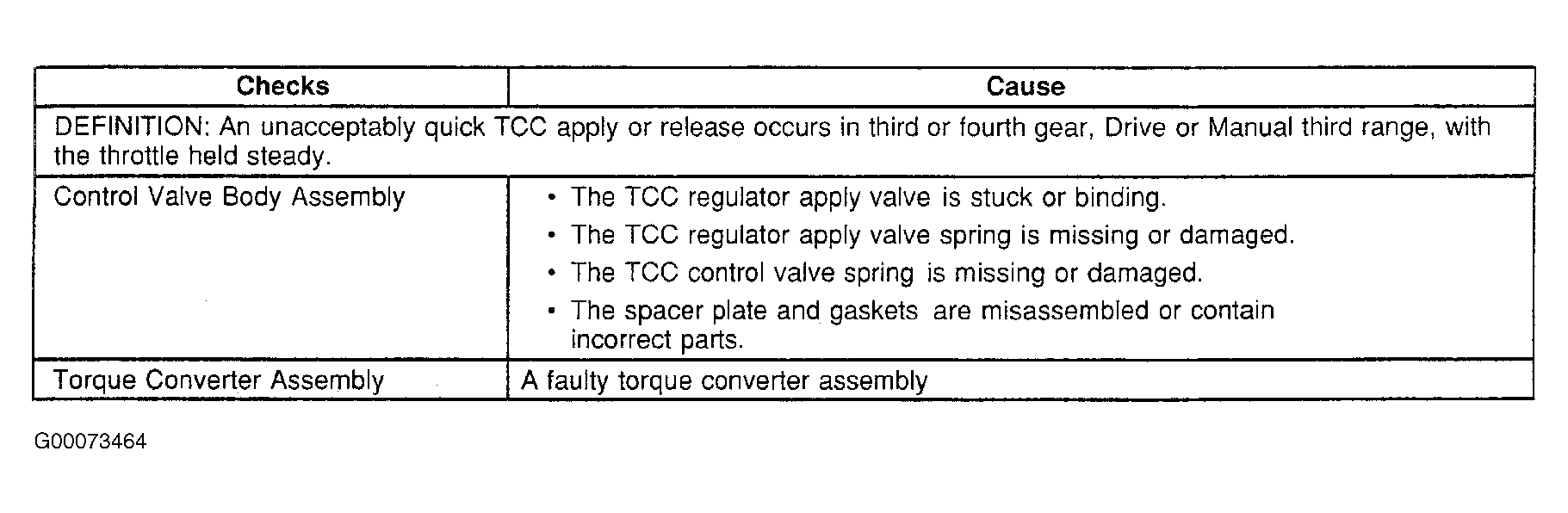

Fig 38: Harsh TCC Apply Or Release

G00073464

Courtesy of GENERAL MOTORS CORP.

Fig 39: TCC Apply Rough, Slips Or Shudders

G00073465

Courtesy of GENERAL MOTORS CORP.

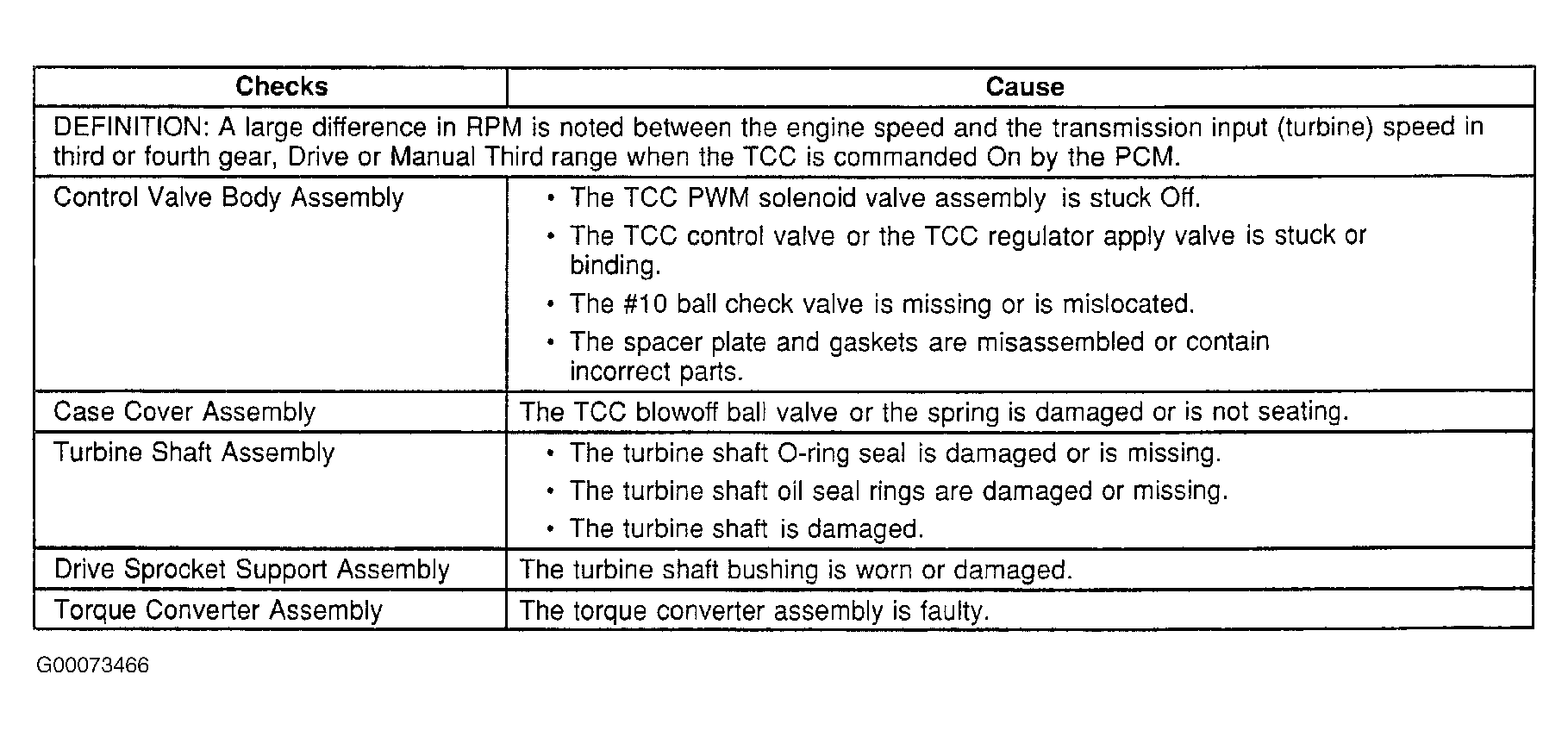

Fig 40: No TCC Apply

G00073466

Courtesy of GENERAL MOTORS CORP.
