Shift Speed Specifications

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For shift speed specifications, see Fig 1 .

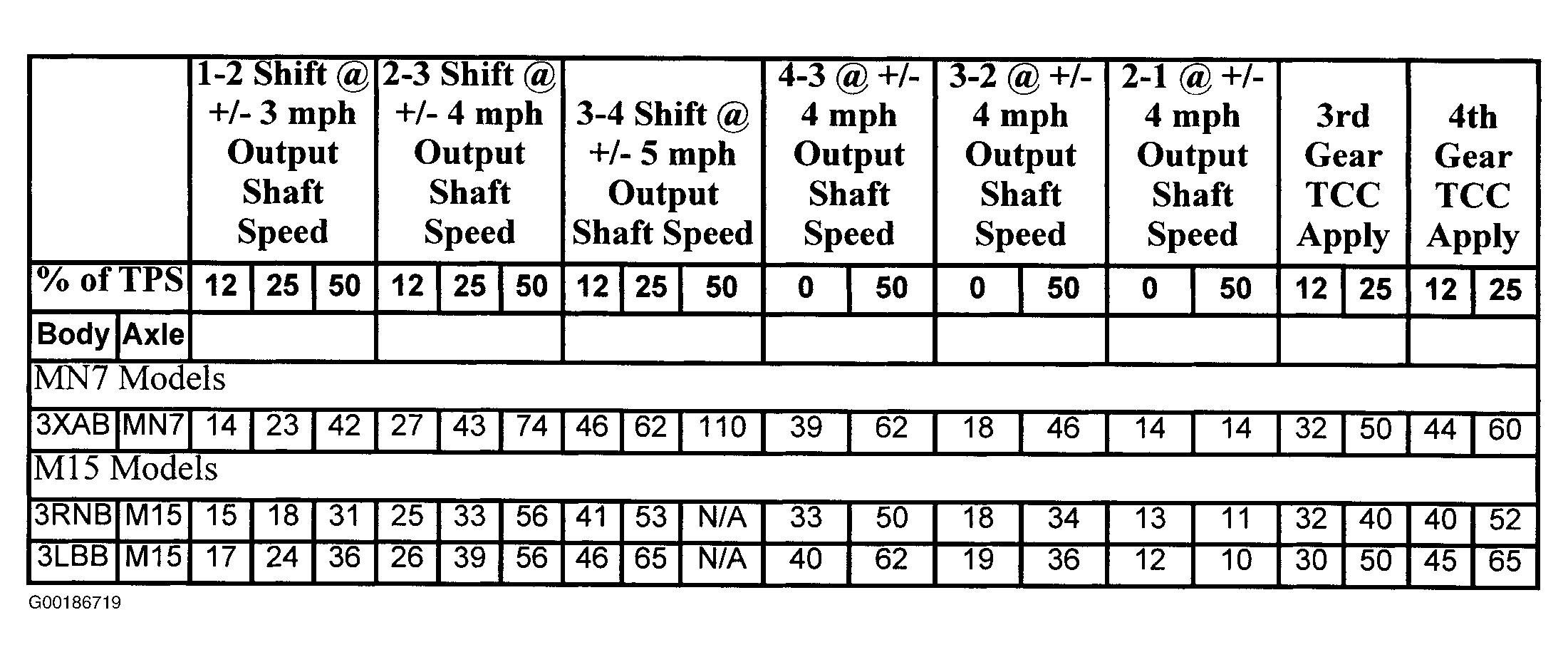

Fig 1: Shift Speed Specifications
G00186719Courtesy of GENERAL MOTORS CORP.
