Component Resistance

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

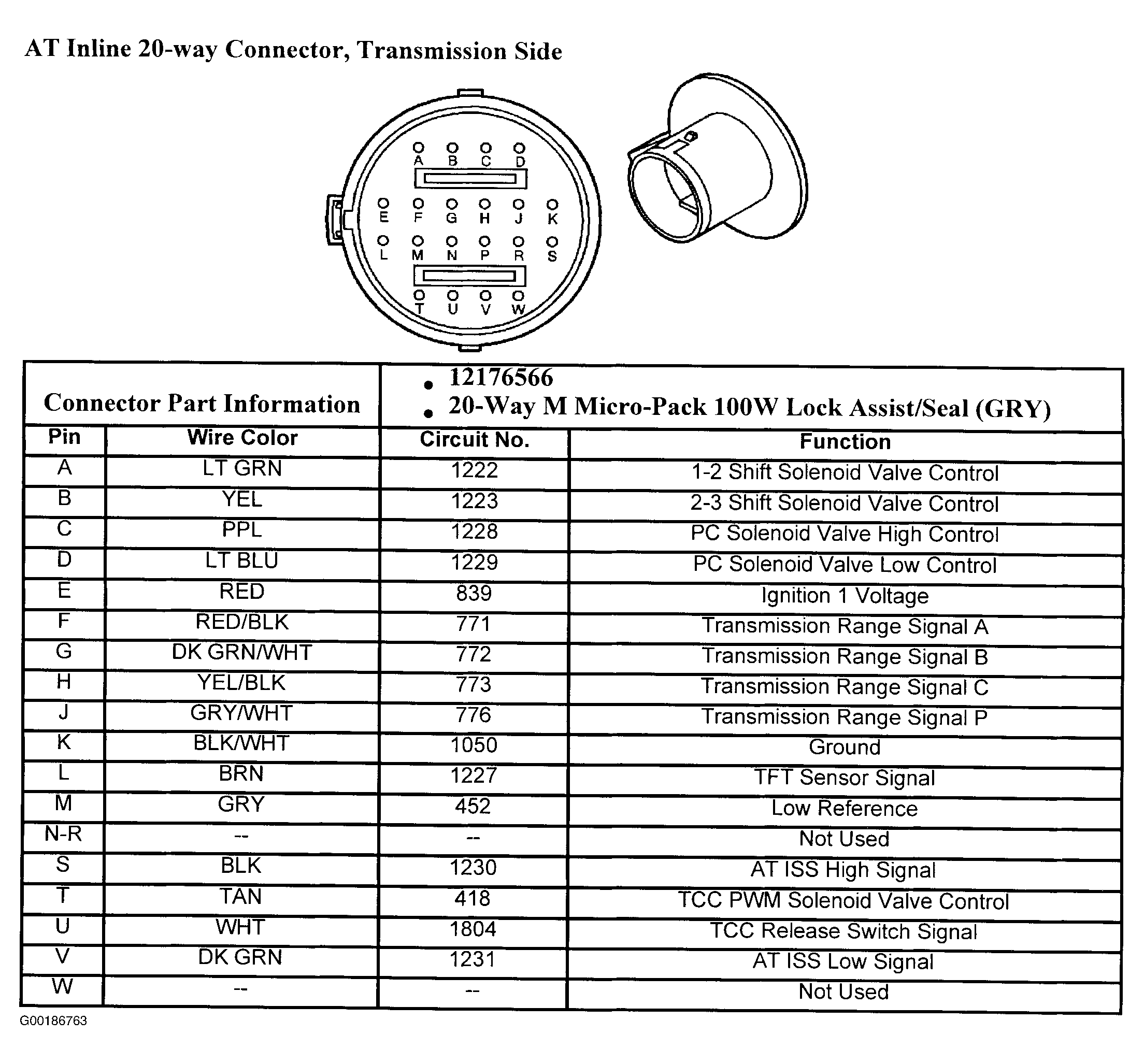

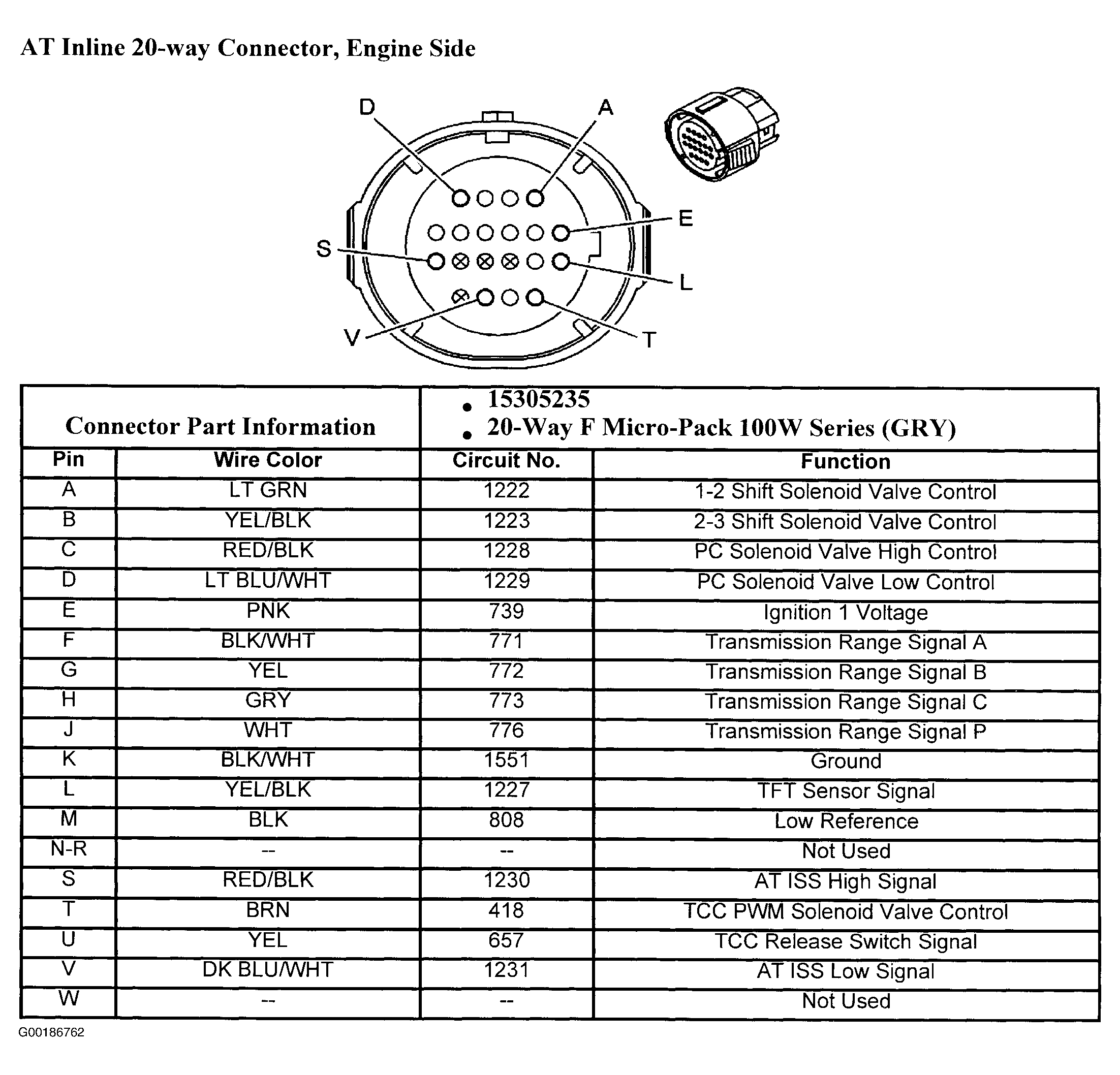

Connect DMM between specified terminals at component or at transaxle in-line 20-pin connector to transaxle. Measure individual component resistance at specified temperature. See Figure and Figure . See COMPONENT RESISTANCE . If resistance is not as specified, replace appropriate component. See Fig 2 .

COMPONENT RESISTANCE

Component

Pass Through Pins

Resistance At 68°F (20°C)

Resistance At 190°F (88°C)

Resistance To Ground (Case)

1-2 Shift Solenoid Valve

A, E

19-24 Ohms

24-31 Ohms

Greater Than 250 K Ohms

2-3 Shift Solenoid Valve

B, E

19-24 Ohms

24-31 Ohms

Greater Than 250 K Ohms

Torque Converter Clutch Pulse Width Modulation Solenoid Valve

T, E

10-12 Ohms

13-15 Ohms

Greater Than 250 K Ohms

Pressure Control Solenoid Valve

C, D

3-5 Ohms

5-6 Ohms

Greater Than 250 K Ohms

Automatic Transmission Input Speed Sensor

S, V

820-1020 Ohms

1132-1428 Ohms

Greater Than 250 K Ohms

Automatic Transmission Fluid Temperature Sensor

M, L ⁽¹⁾

3164-3867 Ohms

225-285 Ohms

Greater Than 10 M Ohms

Vehicle Speed Sensor

A, B VSS CONN

1650-2200 Ohms

2360-3180 Ohms At 302°F (150°C)

Greater Than 10 M Ohms

⁽¹⁾	The resistance of this device changes rapidly with temperature. For other temperatures, refer to Fig 1 .

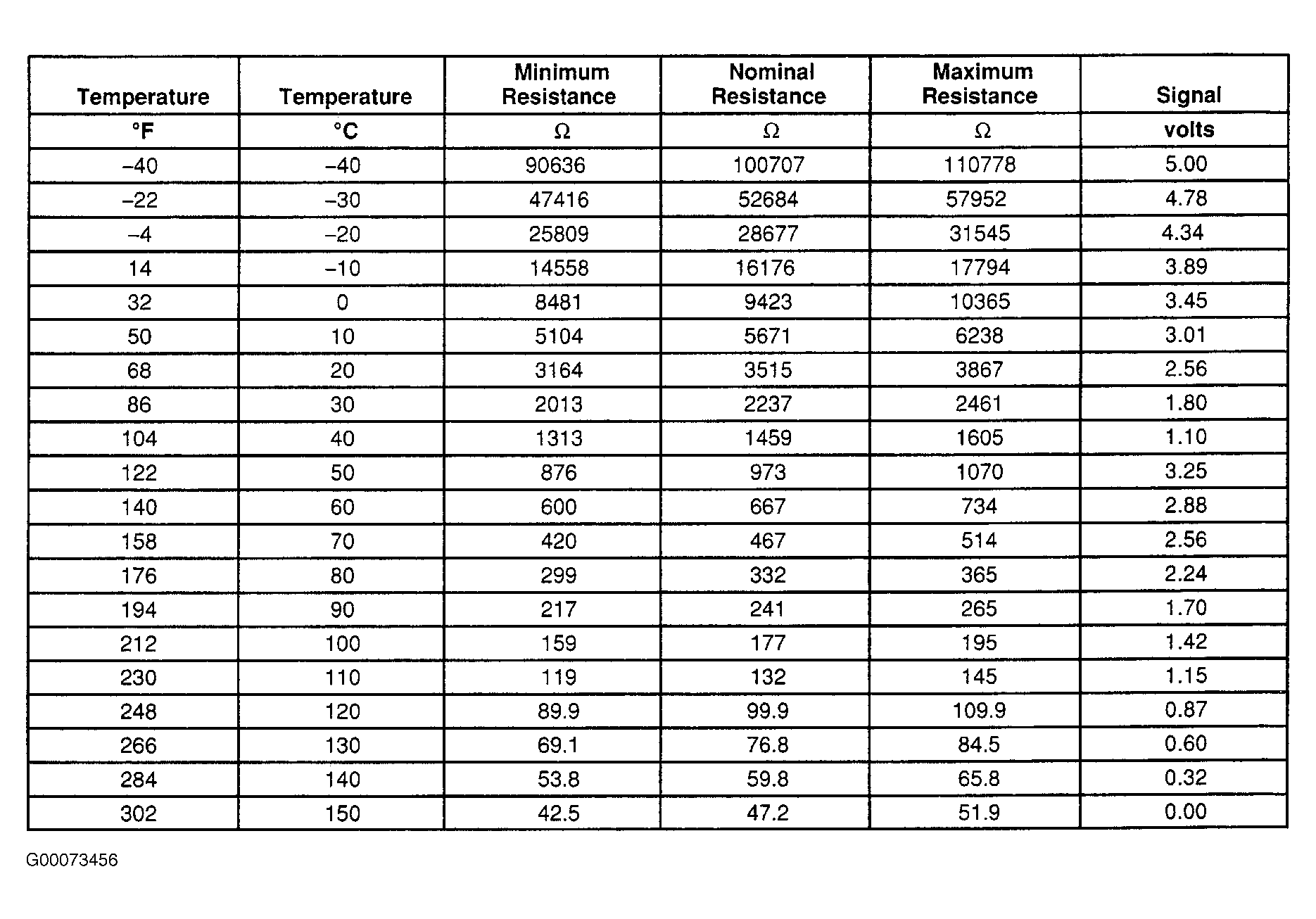

Fig 1: Transmission Fluid Temperature Sensor Specifications

Courtesy of GENERAL MOTORS CORP.

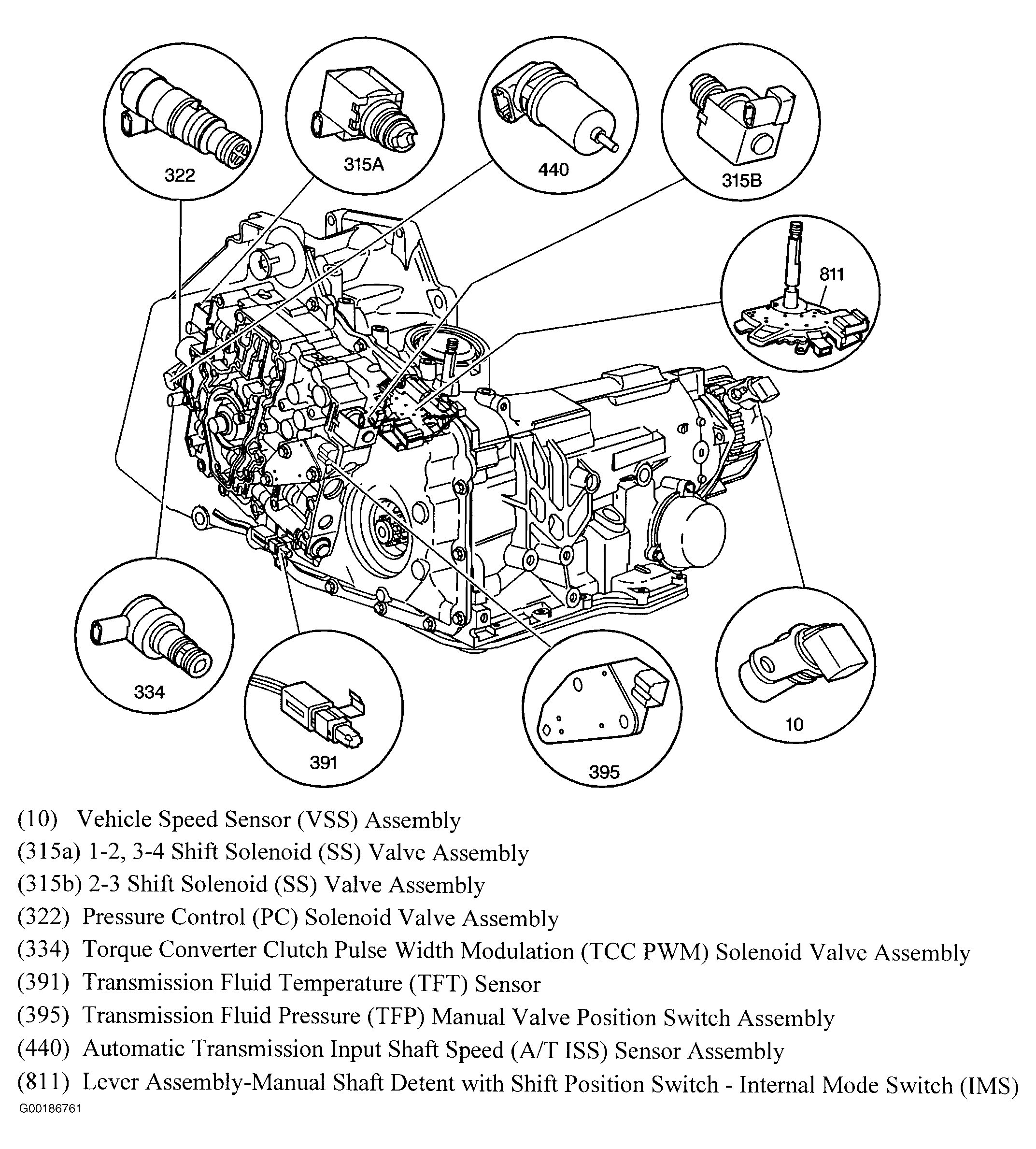

Fig 2: Locating Solenoids, Switches & Sensors

Courtesy of GENERAL MOTORS CORP.
