Preliminary Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 GMC Savana Special, 2001 GMC Savana Camper Special, 2001 GMC Savana, 2001 Chevrolet RV Cutaway, and 2001 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Verify customer complaint by operating suspected system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses. For fuse and/or relay identification, refer to illustrations. See Fig 1 and Fig 2 . Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Pay special attention to harness routing where wires are hinged or make sharp bends. Check fluid levels. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no fault is found, perform appropriate diagnostic system check. See SELF-DIAGNOSTIC SYSTEM .

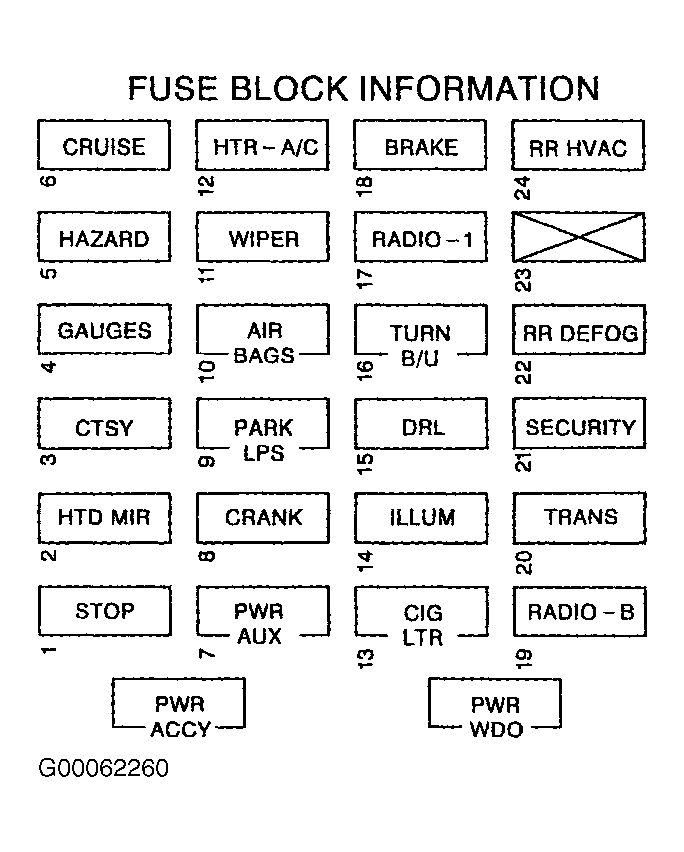

Fig 1: Identifying Instrument Panel Fuse Block Fuses

Courtesy of GENERAL MOTORS CORP.

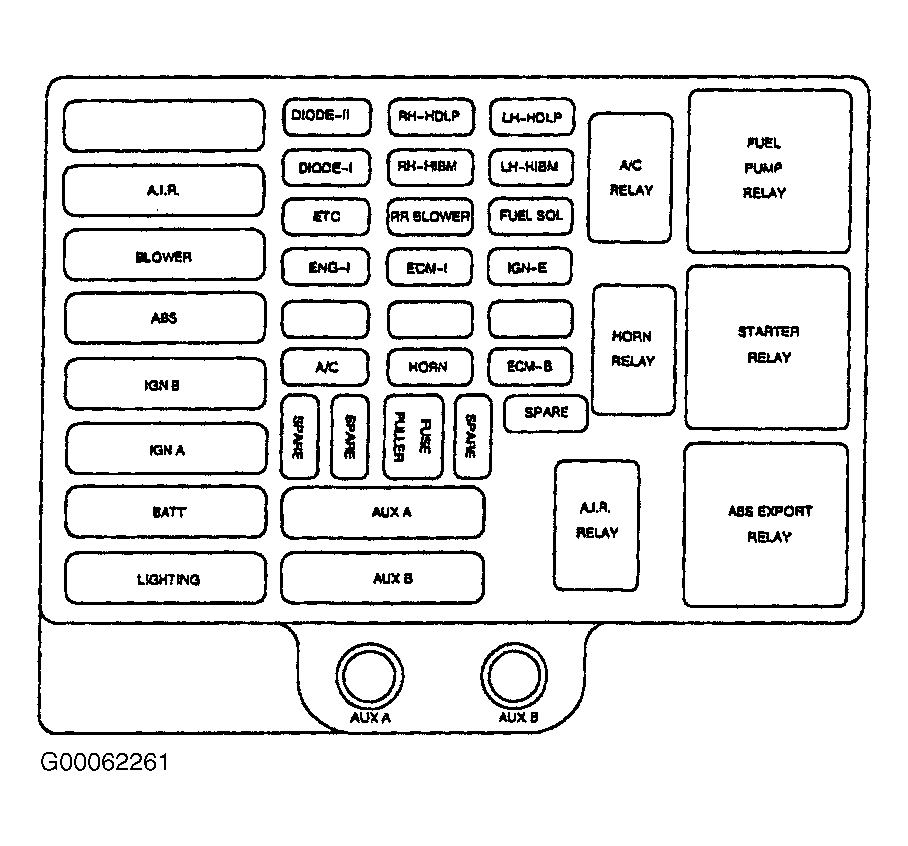

Fig 2: Identifying Underhood Fuse Block Fuses & Relays

Courtesy of GENERAL MOTORS CORP.
