Connector Identification

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

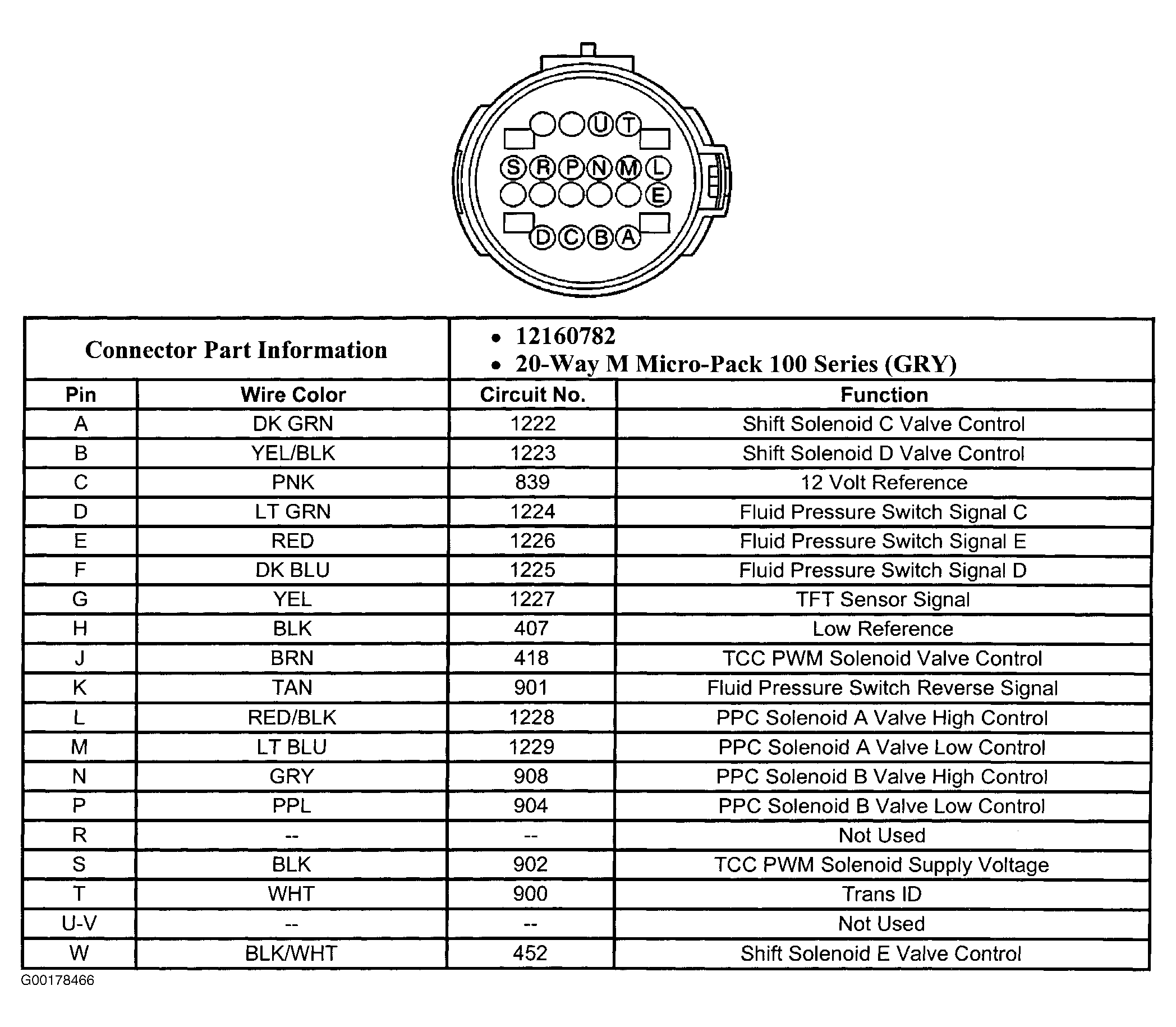

Fig 1: Transmission Inline Harness Connector C175 (Transmission Side)

G00178466

Courtesy of GENERAL MOTORS CORP.

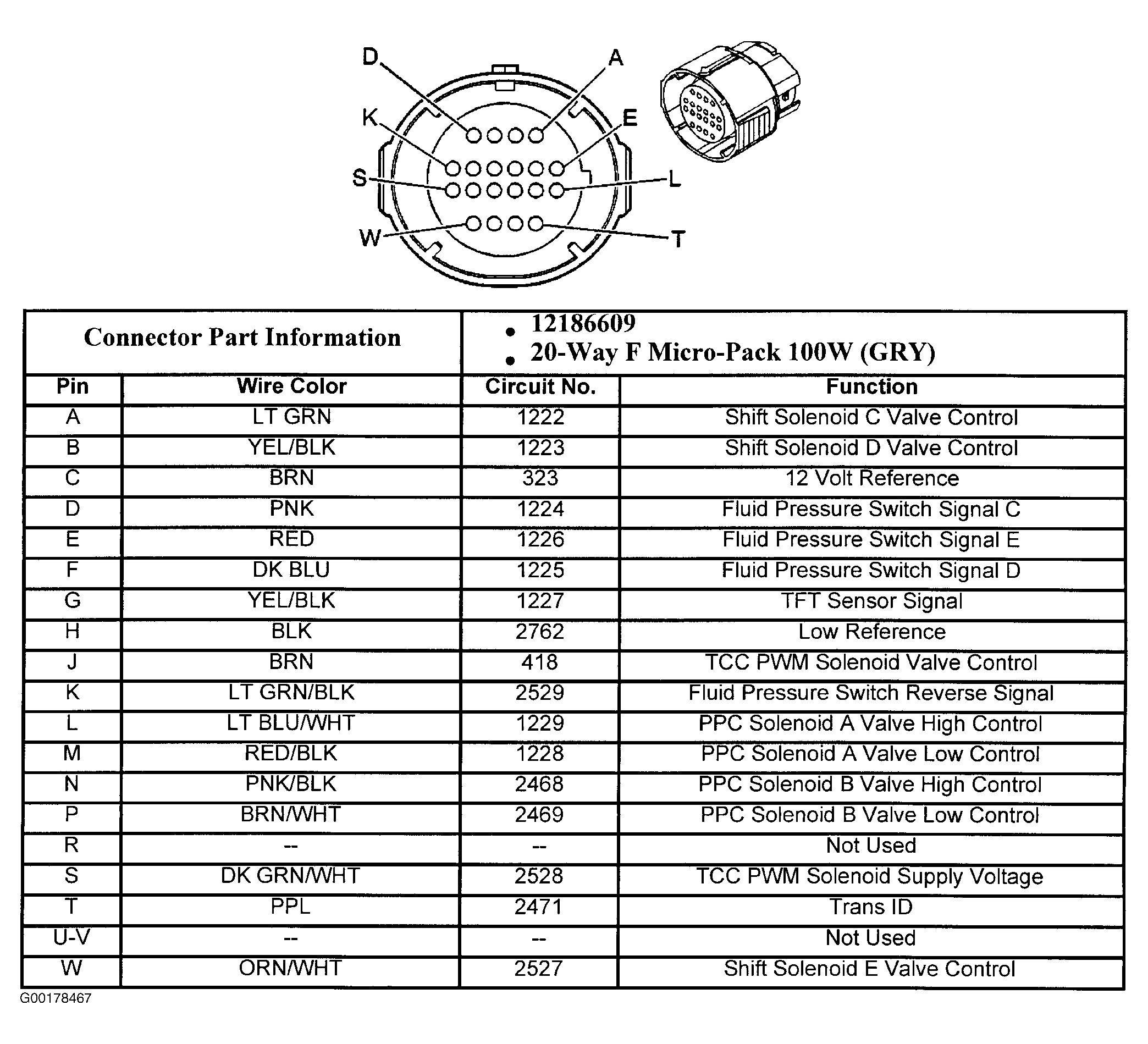

Fig 2: Transmission Inline Harness Connector C175 (Engine Harness Side)

G00178467

Courtesy of GENERAL MOTORS CORP.

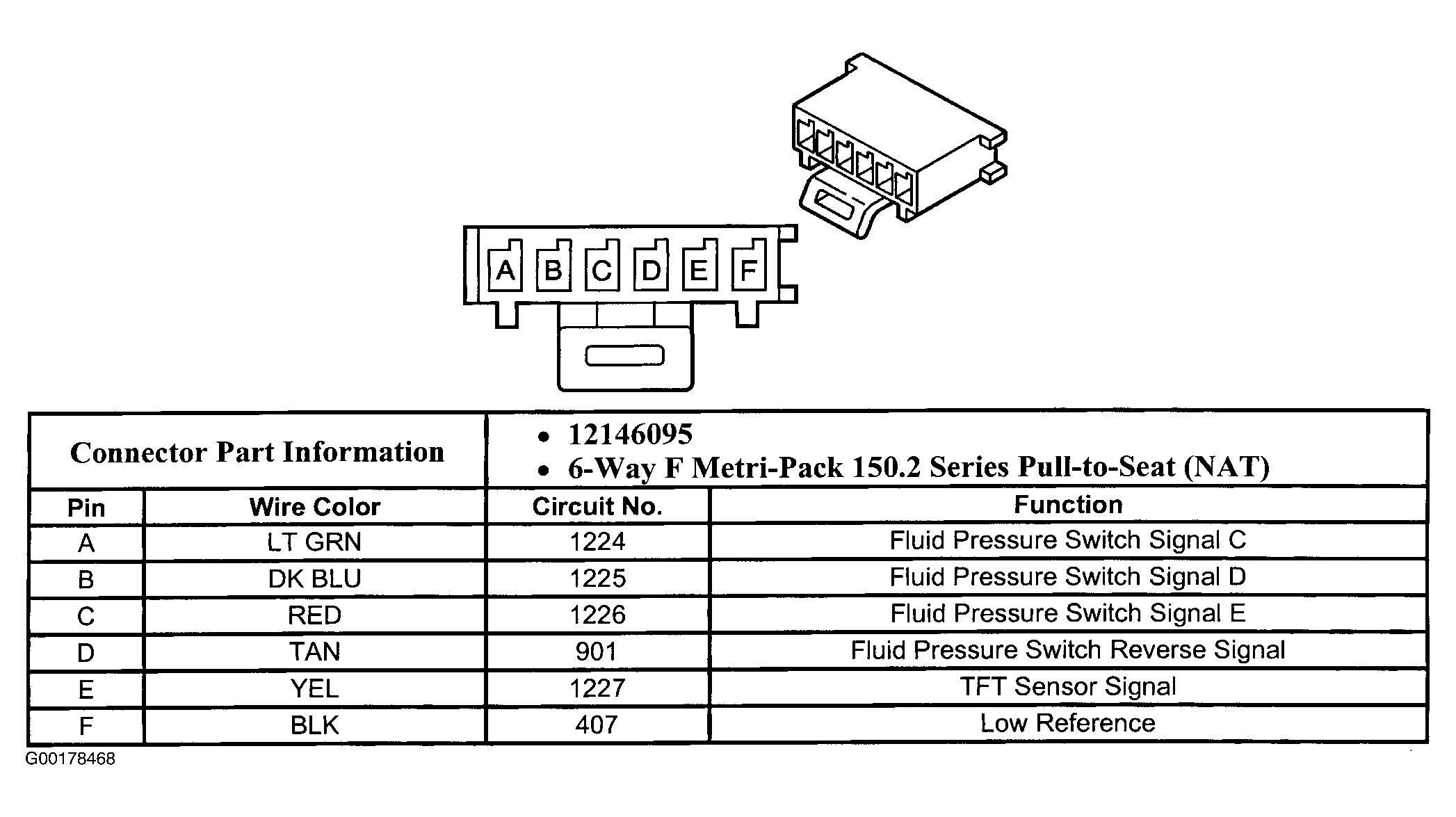

Fig 3: Pressure Switch Manifold Harness Connector

G00178468

Courtesy of GENERAL MOTORS CORP.

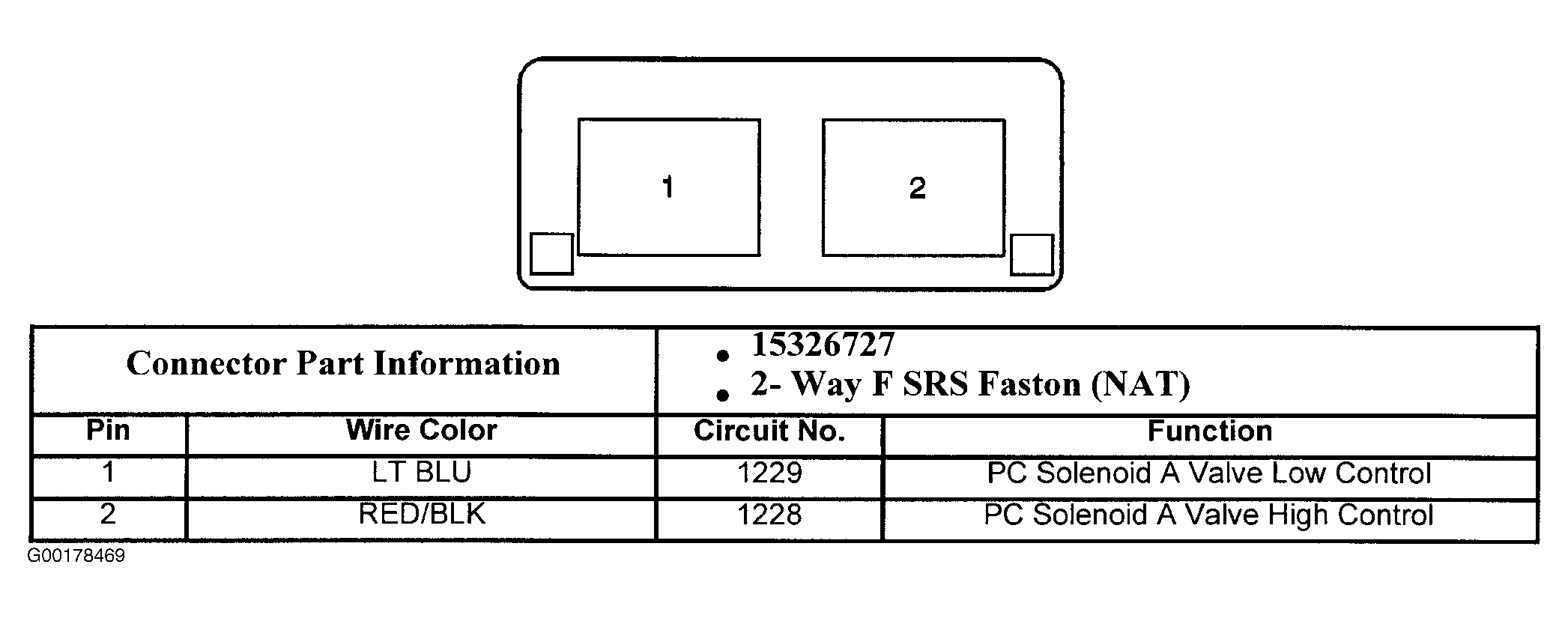

Fig 4: Trim Solenoid "A" Harness Connector

G00178469

Courtesy of GENERAL MOTORS CORP.

Fig 5: Trim Solenoid "B" Harness Connector

G00178470

Courtesy of GENERAL MOTORS CORP.

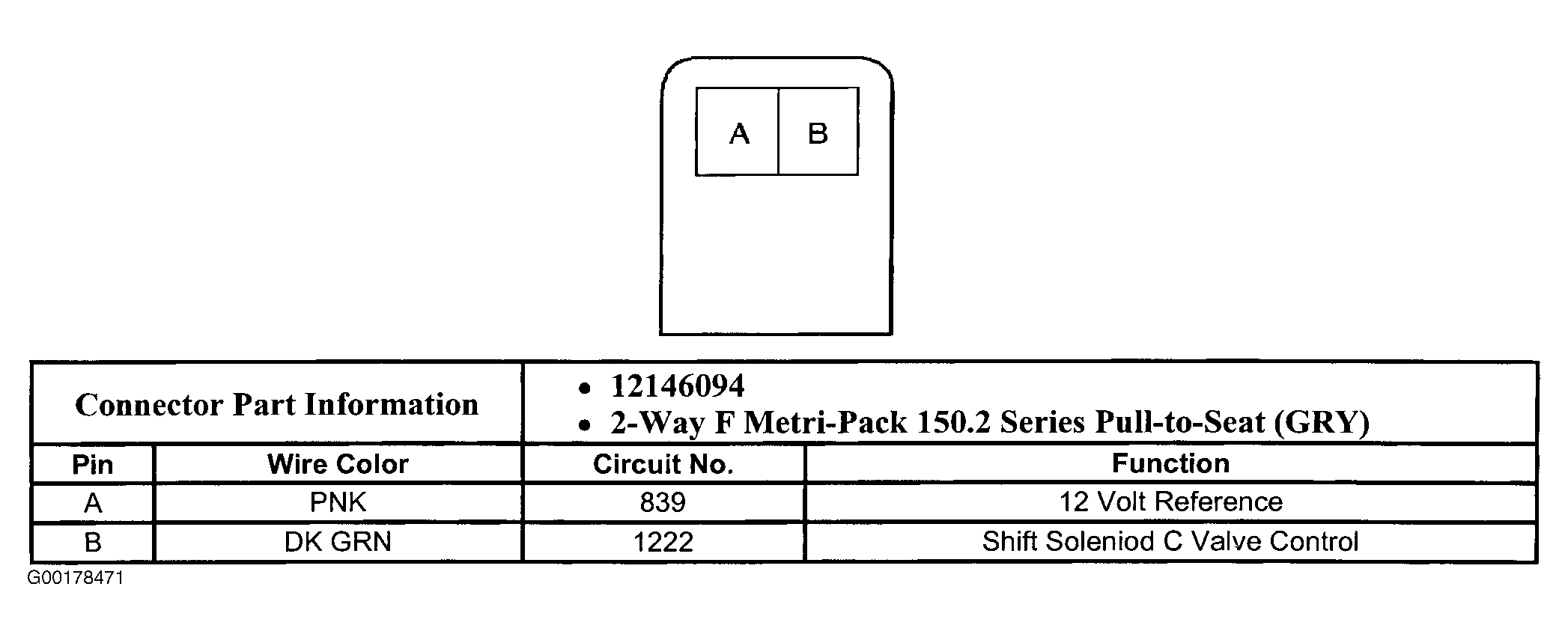

Fig 6: Shift Solenoid "C" Harness Connector

G00178471

Courtesy of GENERAL MOTORS CORP.

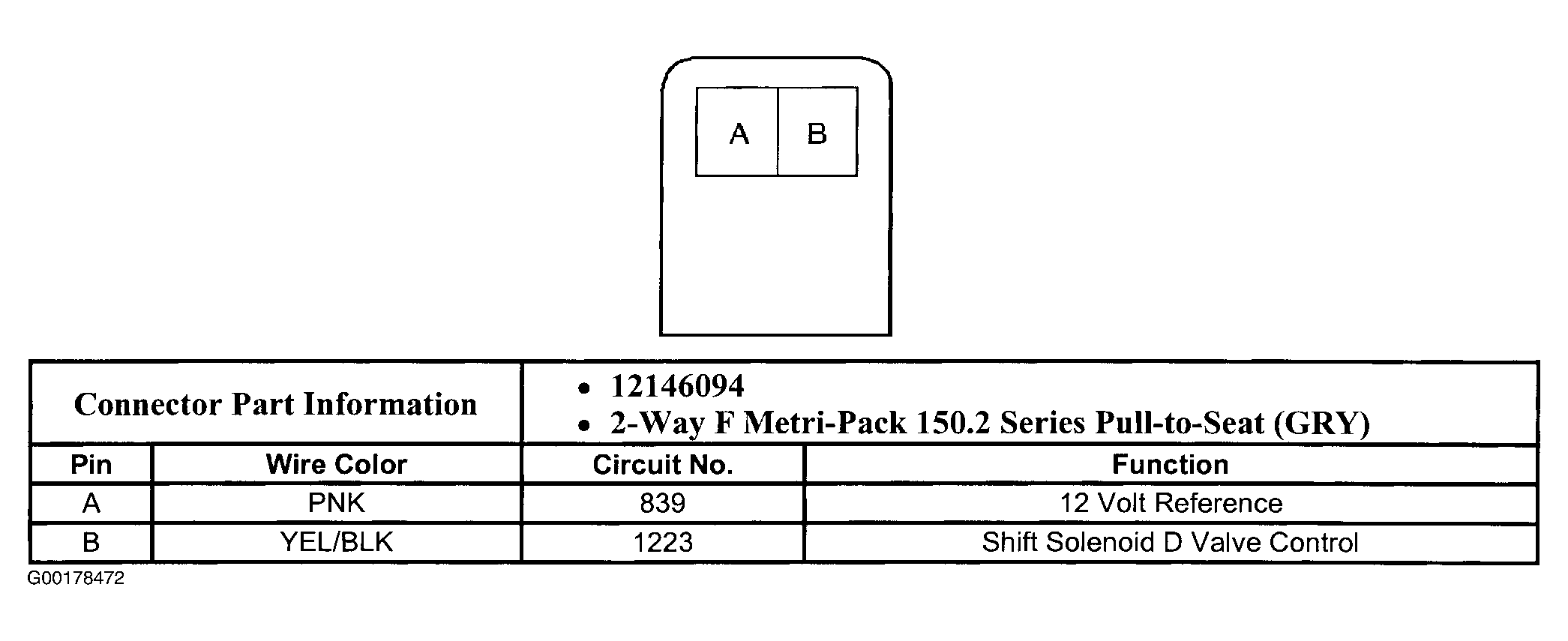

Fig 7: Shift Solenoid "D" Harness Connector

G00178472

Courtesy of GENERAL MOTORS CORP.

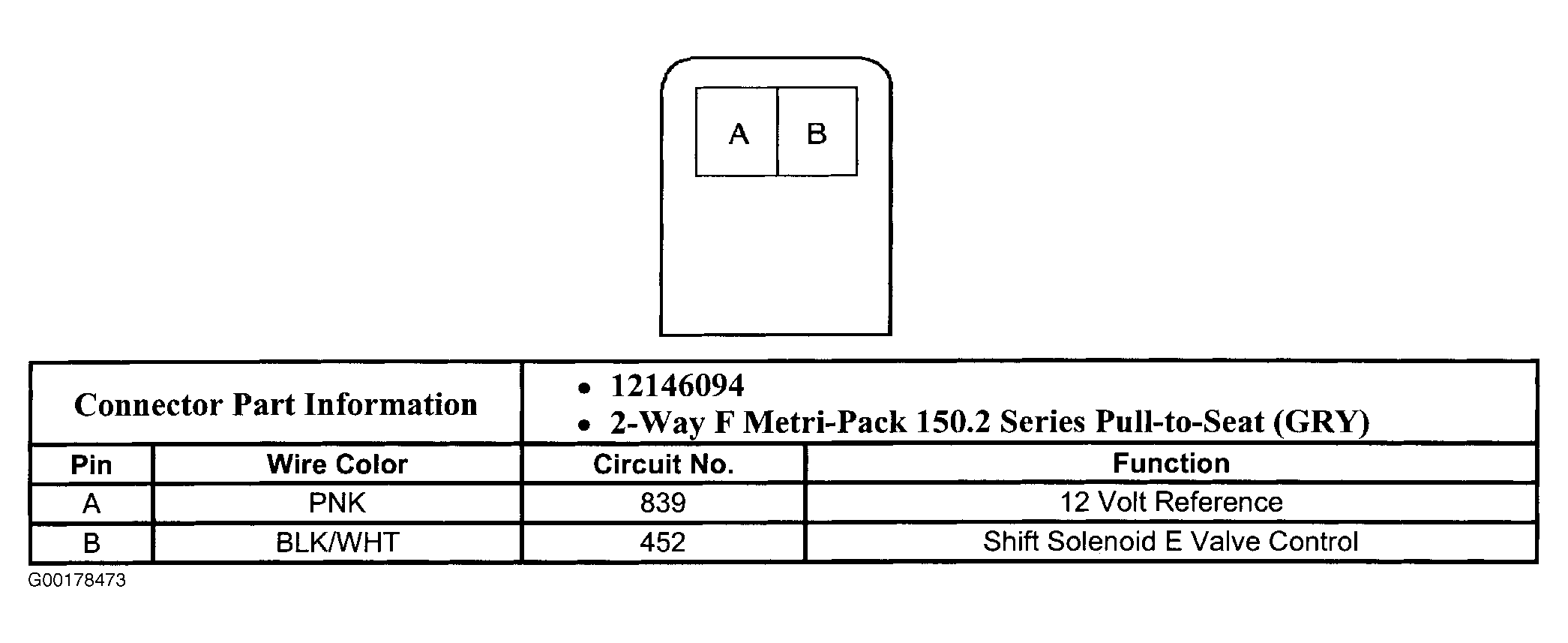

Fig 8: Shift Solenoid "E" Harness Connector

G00178473

Courtesy of GENERAL MOTORS CORP.

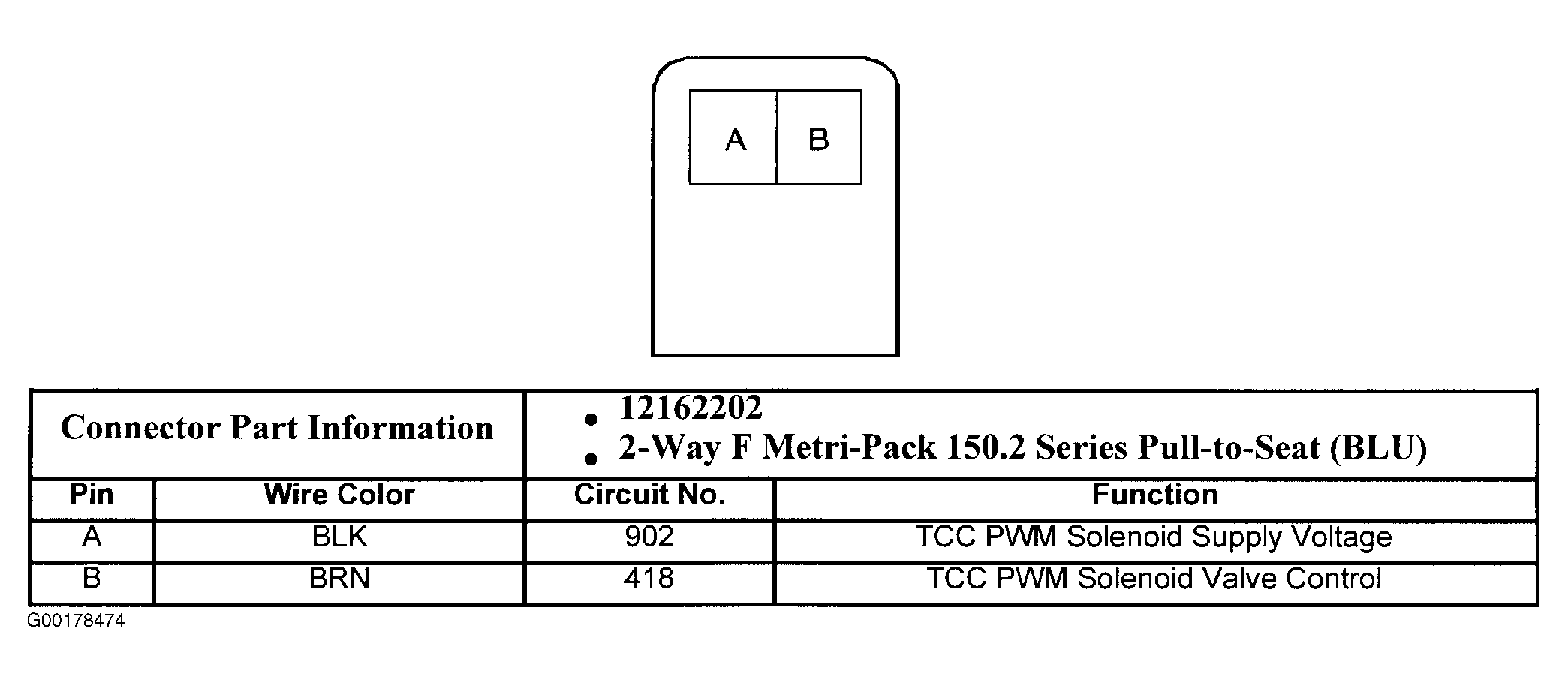

Fig 9: TCC PWM Solenoid "F" Harness Connector

G00178474

Courtesy of GENERAL MOTORS CORP.

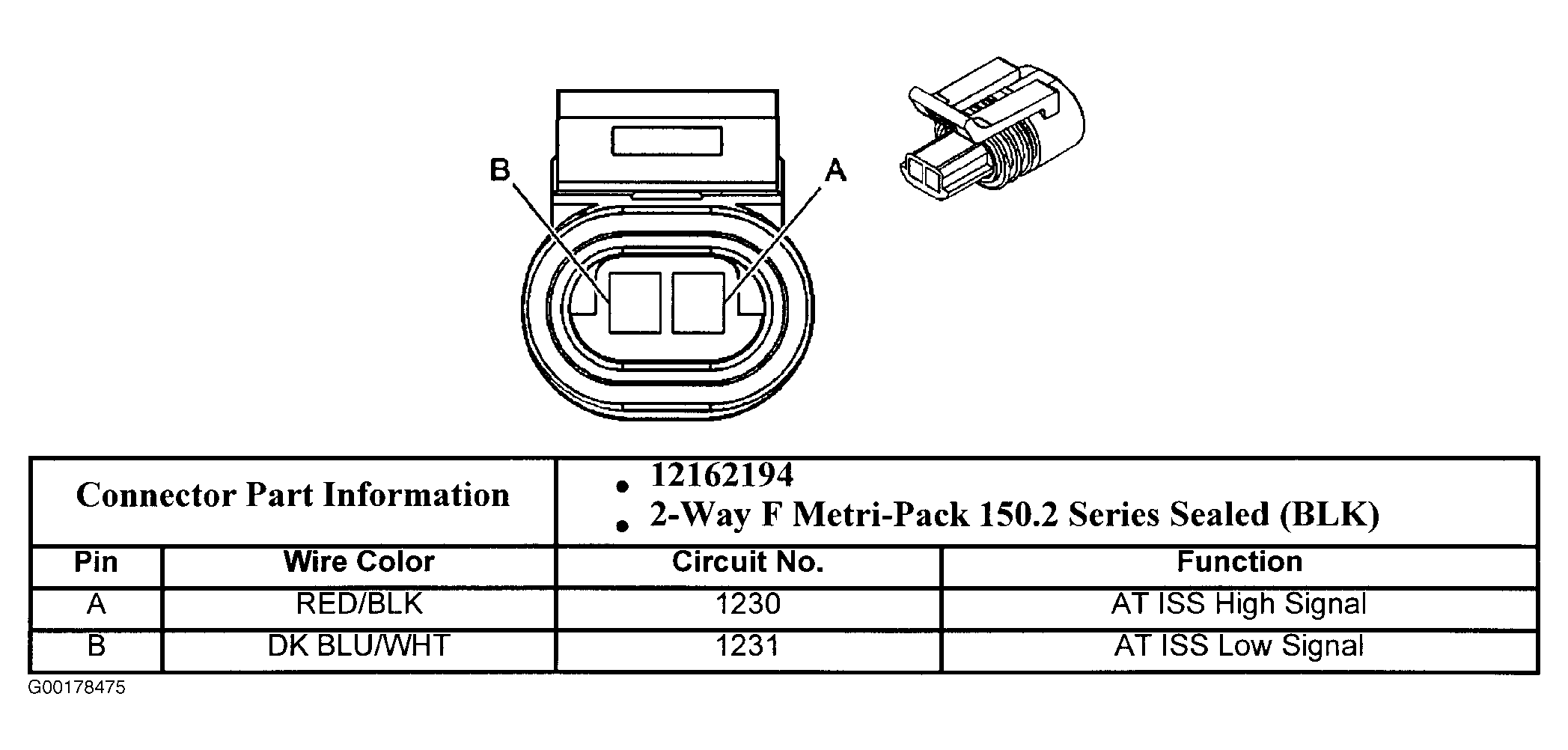

Fig 10: Input Speed Sensor Harness Connector

G00178475

Courtesy of GENERAL MOTORS CORP.

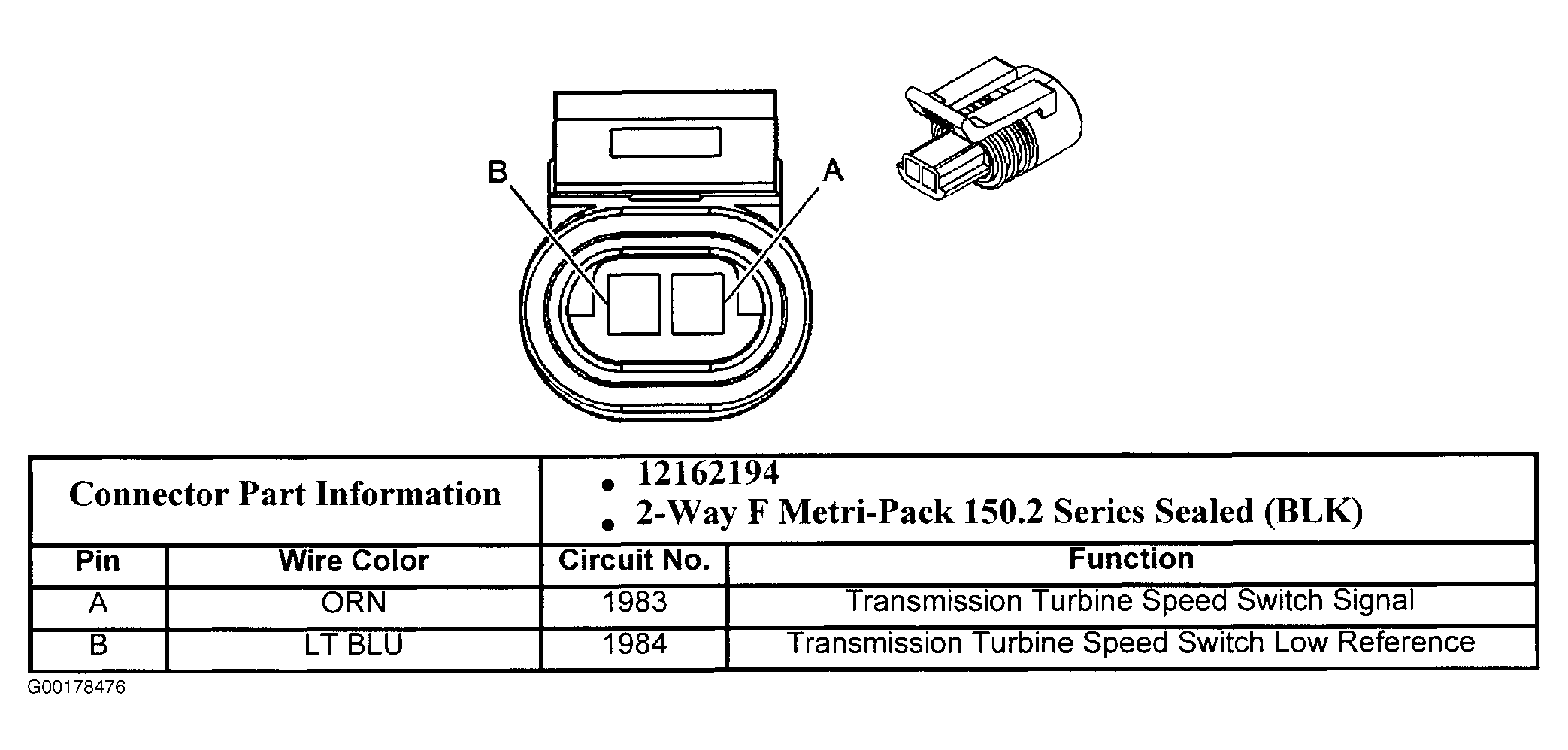

Fig 11: Turbine Speed Sensor Harness Connector

G00178476

Courtesy of GENERAL MOTORS CORP.

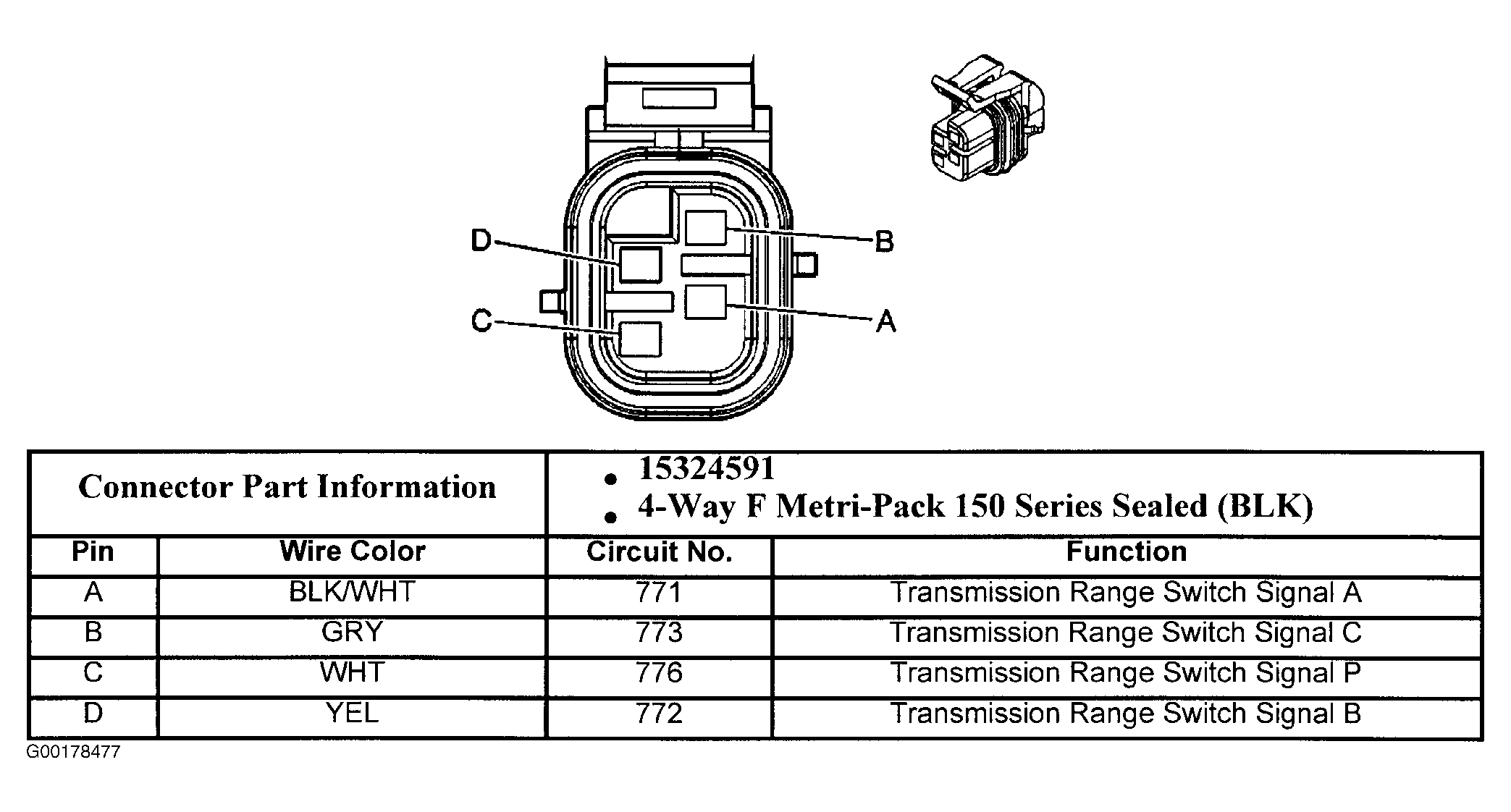

Fig 12: Park/Neutral Position Switch Harness Connector C1

G00178477

Courtesy of GENERAL MOTORS CORP.

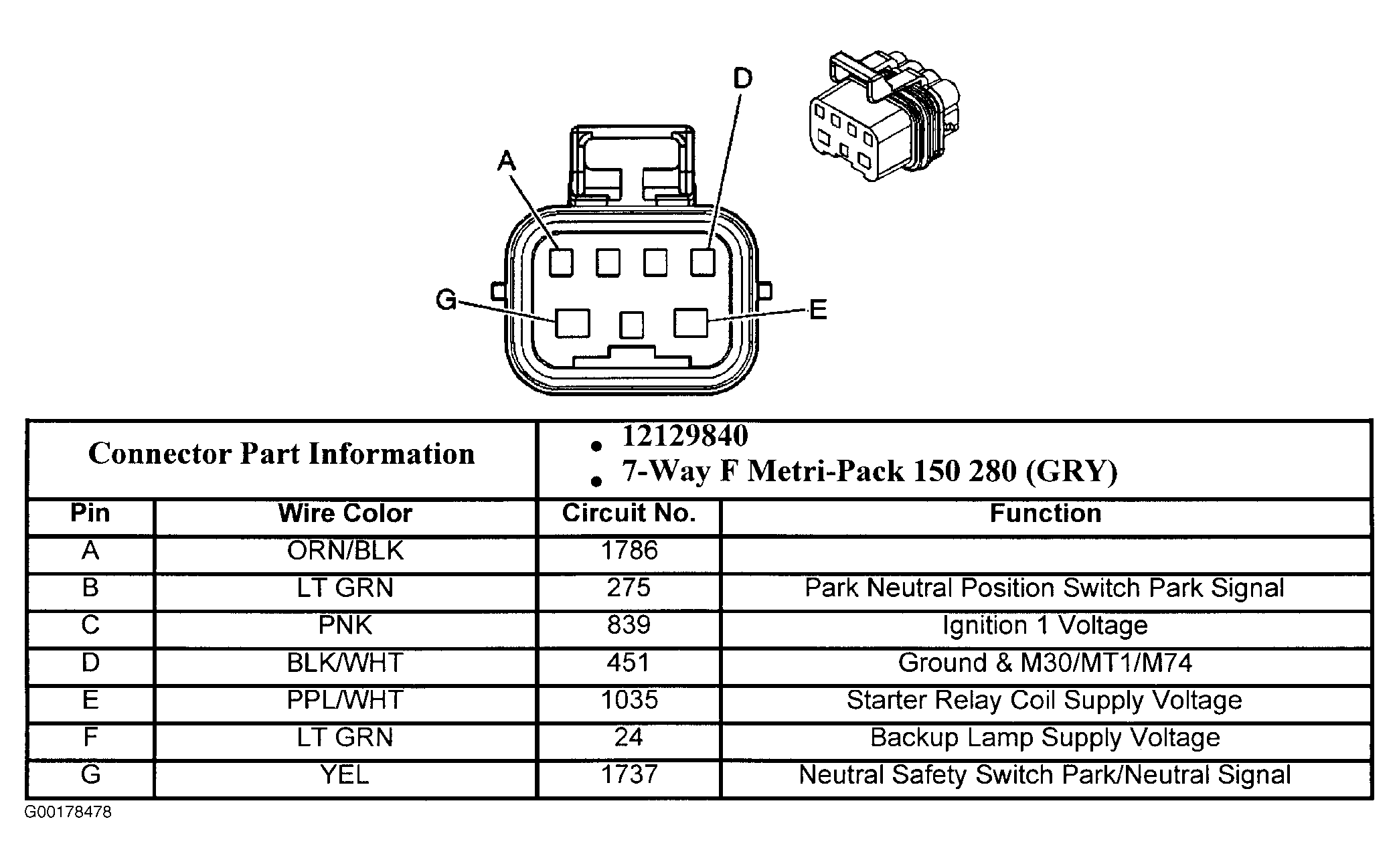

Fig 13: Park/Neutral Position Switch Harness Connector C2

G00178478

Courtesy of GENERAL MOTORS CORP.

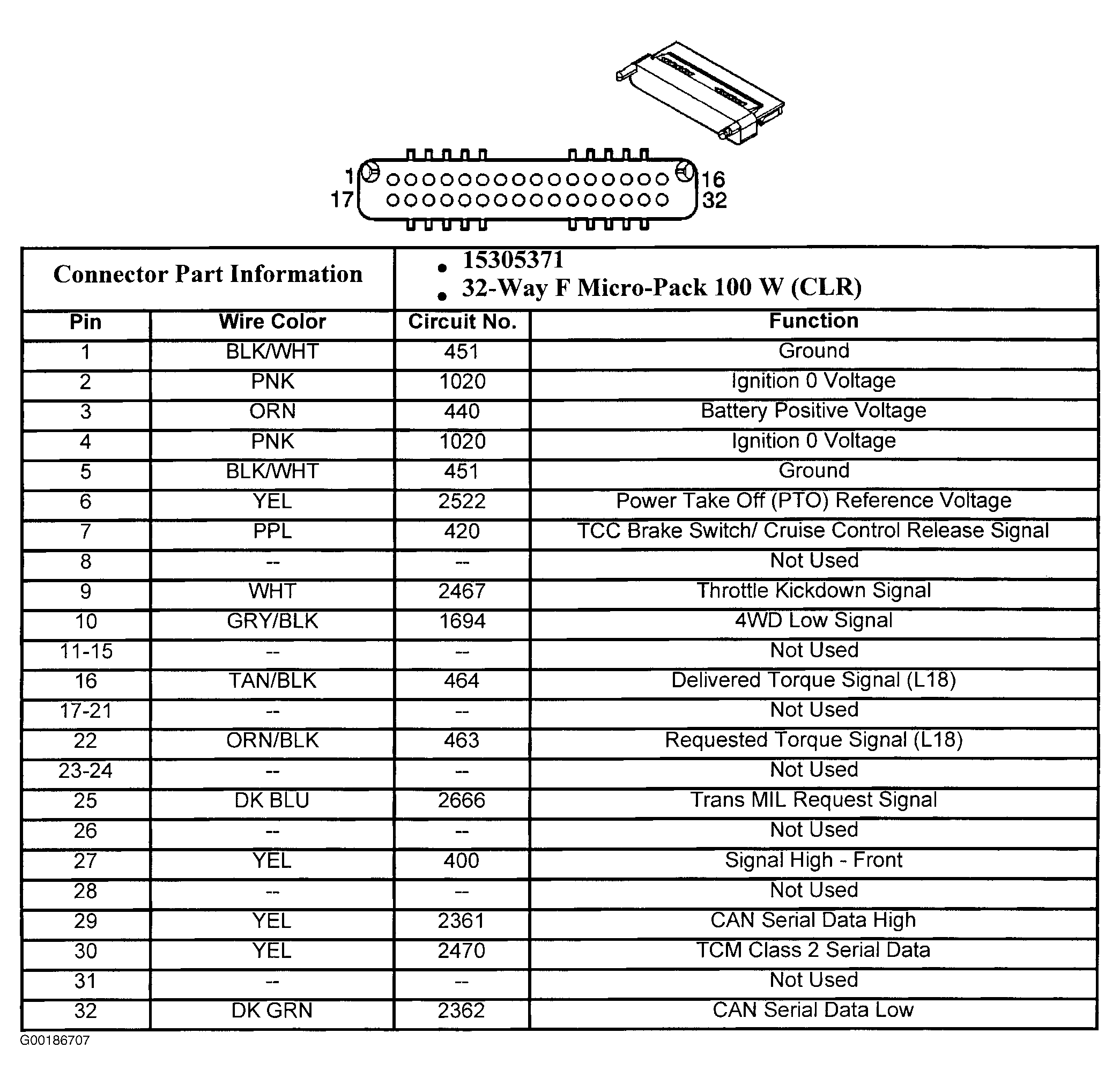

Fig 14: Transmission Control Module Harness Connector C1

G00186707

Courtesy of GENERAL MOTORS CORP.

Fig 15: Transmission Control Module Harness Connector C2

G00186708

Courtesy of GENERAL MOTORS CORP.

Fig 16: Vehicle Speed Sensor Harness Connector

G00186709

Courtesy of GENERAL MOTORS CORP.
