Throttle Position Sensor

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2003 Hummer H2, 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, and 2003 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

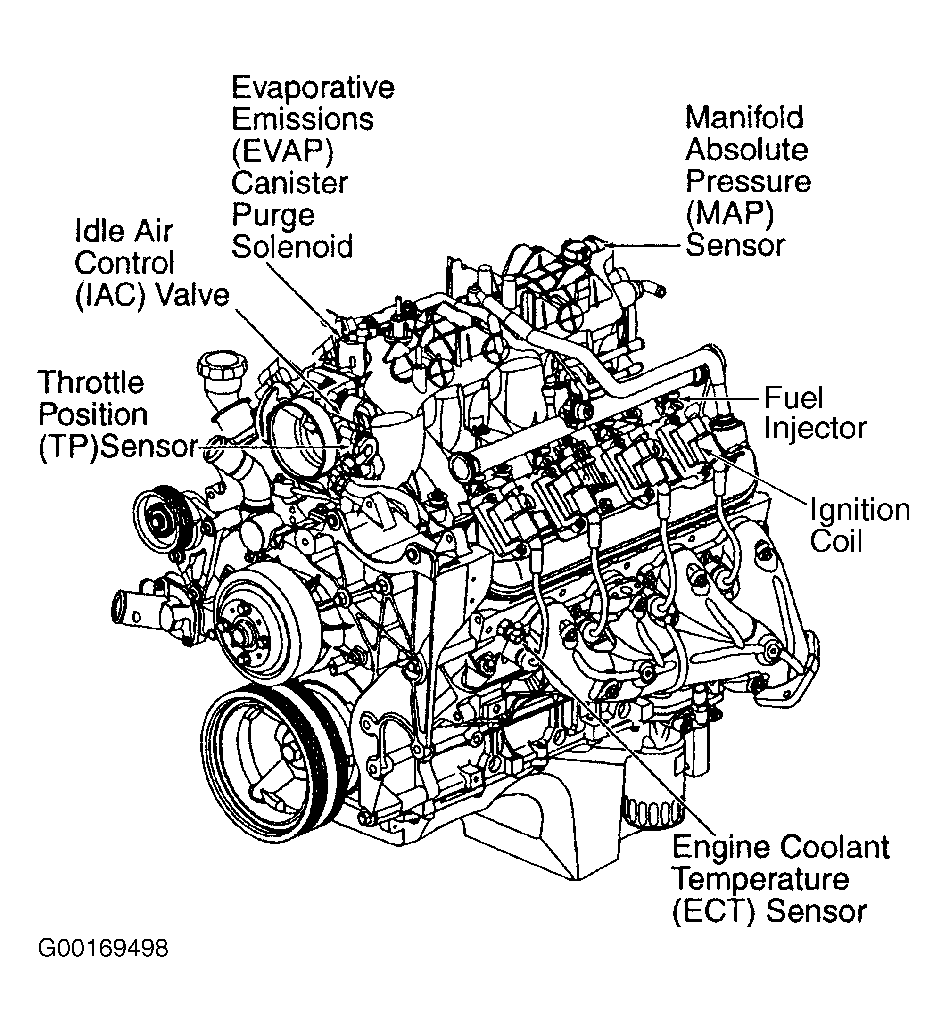

The Throttle Position (TP) sensor is used by the PCM to determine the throttle plate angle for various engine management systems. TP sensor is mounted on throttle body assembly. See Figure. The TP sensor is a potentiometer type sensor with a 5-volt reference circuit, a low reference circuit and a sensor signal circuit. PCM provides the TP sensor with 5 volts on the 5-volt reference circuit and a ground on the low reference circuit. Rotation of the TP sensor rotor from the closed throttle position to Wide Open Throttle (WOT) position provides the PCM with a signal voltage from less than one volt to greater than 4 volts through the TP sensor signal circuit. When TP sensor signal voltage is not within the predicted range, a DTC sets. To diagnose, perform related diagnostic test. See DIAGNOSTIC TROUBLE CODE DEFINITIONS in SELF-DIAGNOSTICS - 4.8L, 5.3L & 6.0L "C", "K" & "N" SERIES - FLEX FUEL & GASOLINE article.
