Solenoids & Wiring Harness: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 5 solenoid harness connectors. See Fig 1 .
  2. Remove the lock plate and bolt, then remove the ATF temperature sensor from the valve body.
  3. Remove the manual detent spring (1) and cover (2) from the valve body. See Fig 2 .
    NOTE: Slowly lower the valve body from the transaxle, the check ball assembly and the accumulator piston located above the valve body may fall out of the transaxle case.
  4. Remove the 13 valve body retaining bolts and the valve body.
  5. Remove the check ball assembly and accumulator. See Fig 3 .
  6. Remove the 2 gaskets.

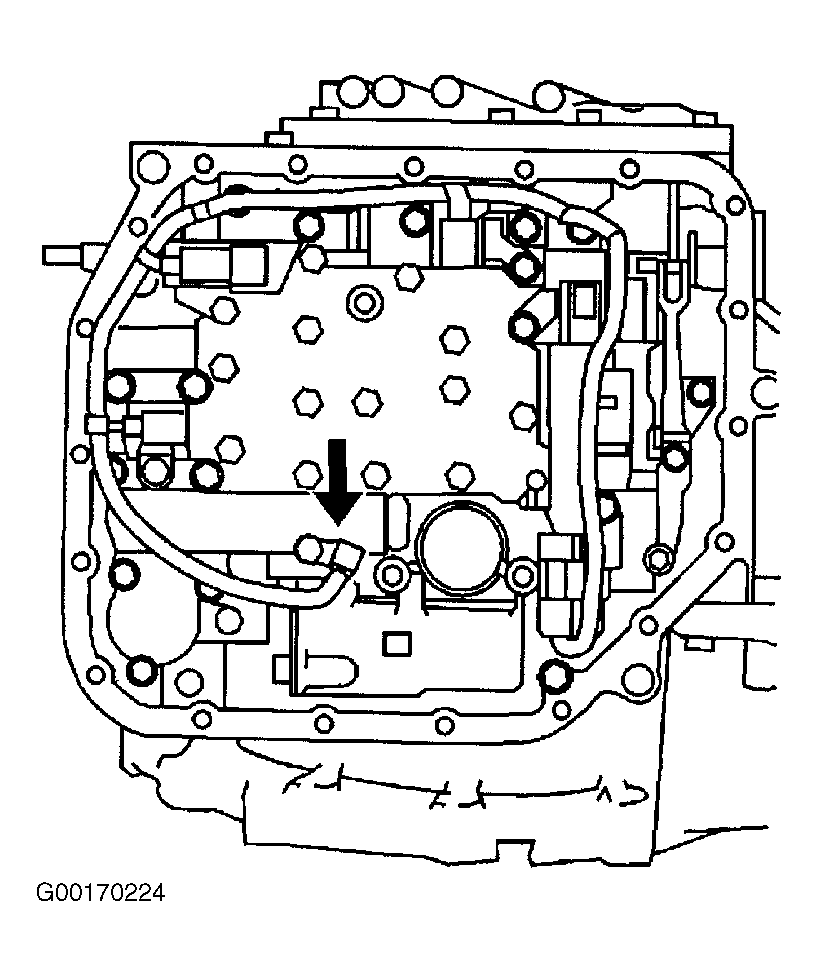

Fig 1: Disconnecting Solenoid Harness Connectors
G00170224Courtesy of GENERAL MOTORS CORP.

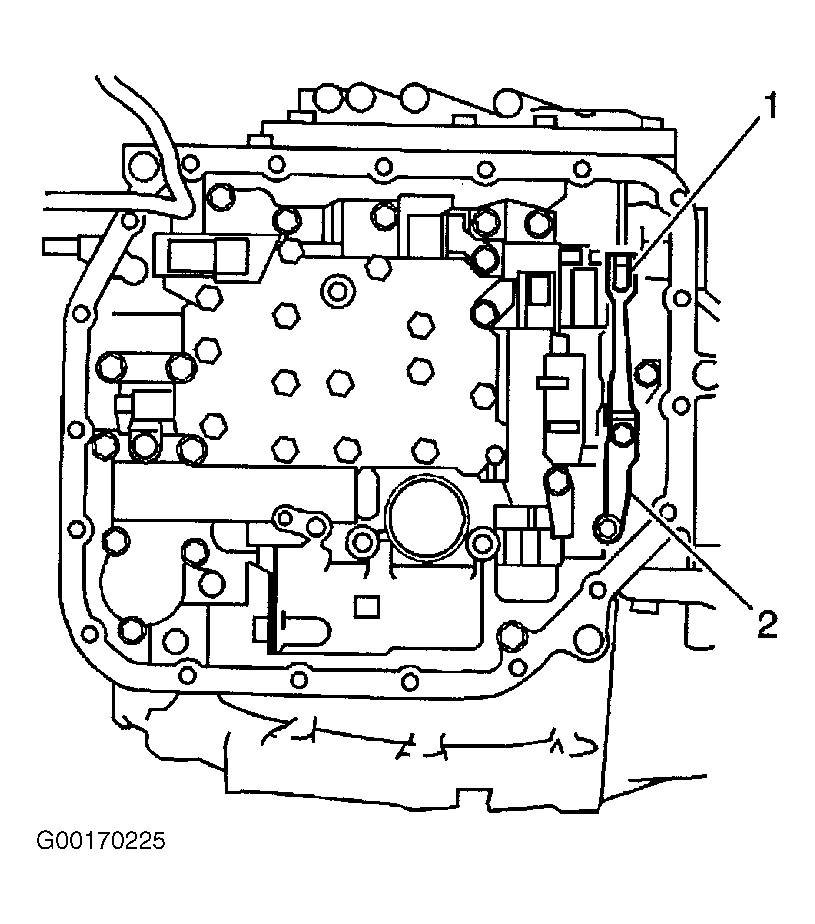

Fig 2: Removing Manual Detent Spring & Cover
G00170225Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Check Ball Assembly & Accumulator
G00170227Courtesy of GENERAL MOTORS CORP.
