Solenoids & Wiring Harness: Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

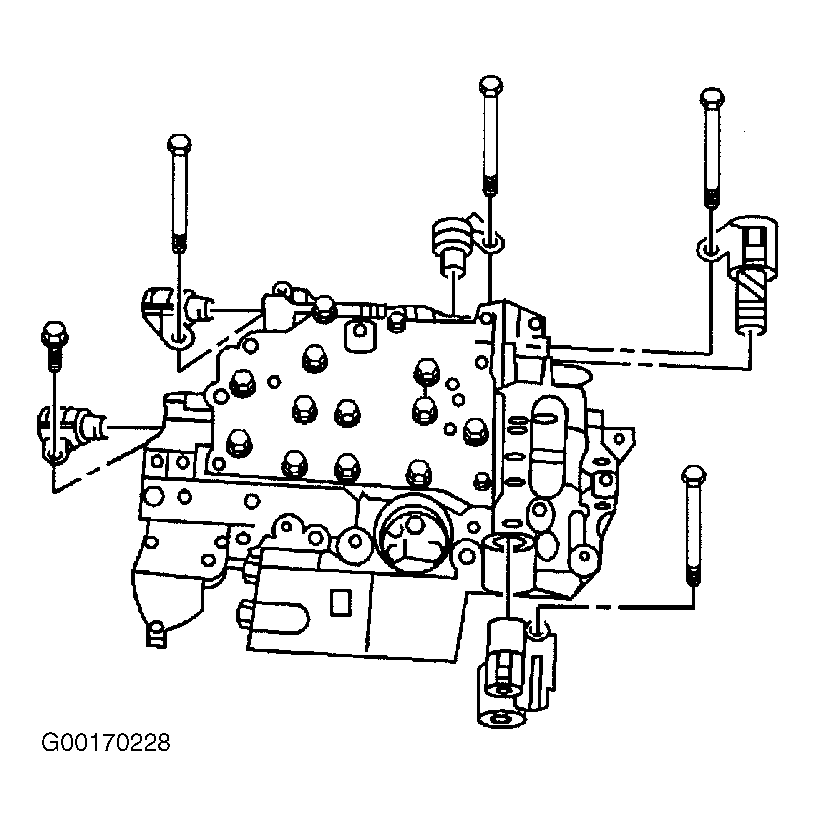

- Install the solenoids on the valve body. See Fig 1 . See TORQUE SPECIFICATIONS .
- Install the 2 new gaskets.
- Install the accumulator and check ball assembly. See Figure .
- Align the groove of the manual valve with the pin of the manual valve lever.
- Temporarily install the valve body with the 13 bolts. See Fig 2
.
- Length of bolt (1) is 1.26" (32 mm).
- Length of bolt (2) is 0.87" (22 mm).
- Length of bolt (3) is 2.17" (.55 mm)
- Length of bolt (4) is 1.77" (45 mm).
- Temporarily install the detent spring (1) and the cover (2). See Figure .
- Make sure the manual valve lever contacts the center of the roller at the tip of the detent spring.
- Tighten the 15 valve body retaining bolts. See TORQUE SPECIFICATIONS .
- Install the ATF temperature sensor, then the lock plate and bolt on the valve body. See TORQUE SPECIFICATIONS .
- Connect the 5 solenoid harness connectors.
- Install the oil filter and pan.
- Install the left engine splash shield.
- Lower the vehicle.
- Connect the negative (-) battery cable.
- Refill the transaxle with appropriate fluid to proper level. See DRAINING & REFILLING under LUBRICATION.
