Park/Neutral Position Switch: Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery.
  2. Remove the 4 battery tray retaining bolts, then remove the battery tray from the vehicle.
  3. Remove the shift cable retaining clip. See Fig 1 .
  4. Disconnect the cable from the bracket.
  5. Remove the shift cable retaining nut, then disconnect the cable from the manual lever.
  6. Disconnect the PNP switch electrical connector (1) from the PNP switch. See Fig 2 .
  7. Remove one nut, one lock washer and the manual lever from the manual shaft. See Fig 3 .
  8. Unstake the lock plate (1) behind the manual shaft nut (3).
  9. Remove the manual shaft nut and the lock plate from the PNP switch.
  10. Remove the 2 bolts and the PNP switch from the transaxle.

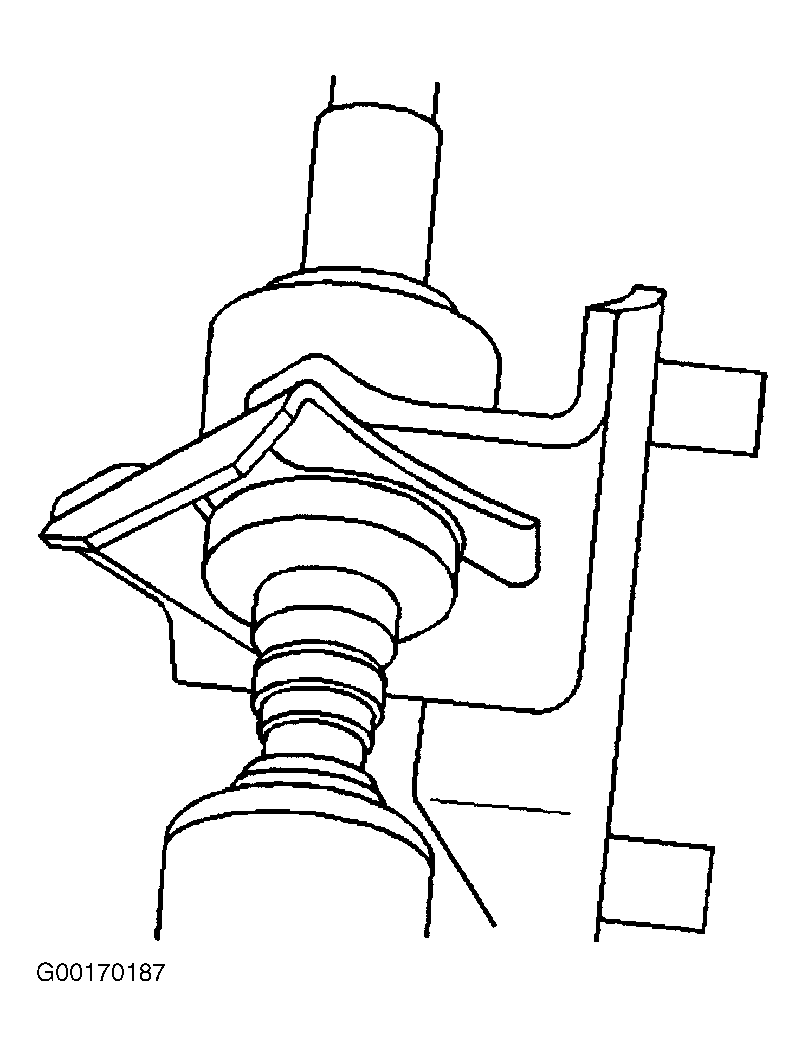

Fig 1: Removing Shift Cable Retaining Clip
G00170187Courtesy of GENERAL MOTORS CORP.

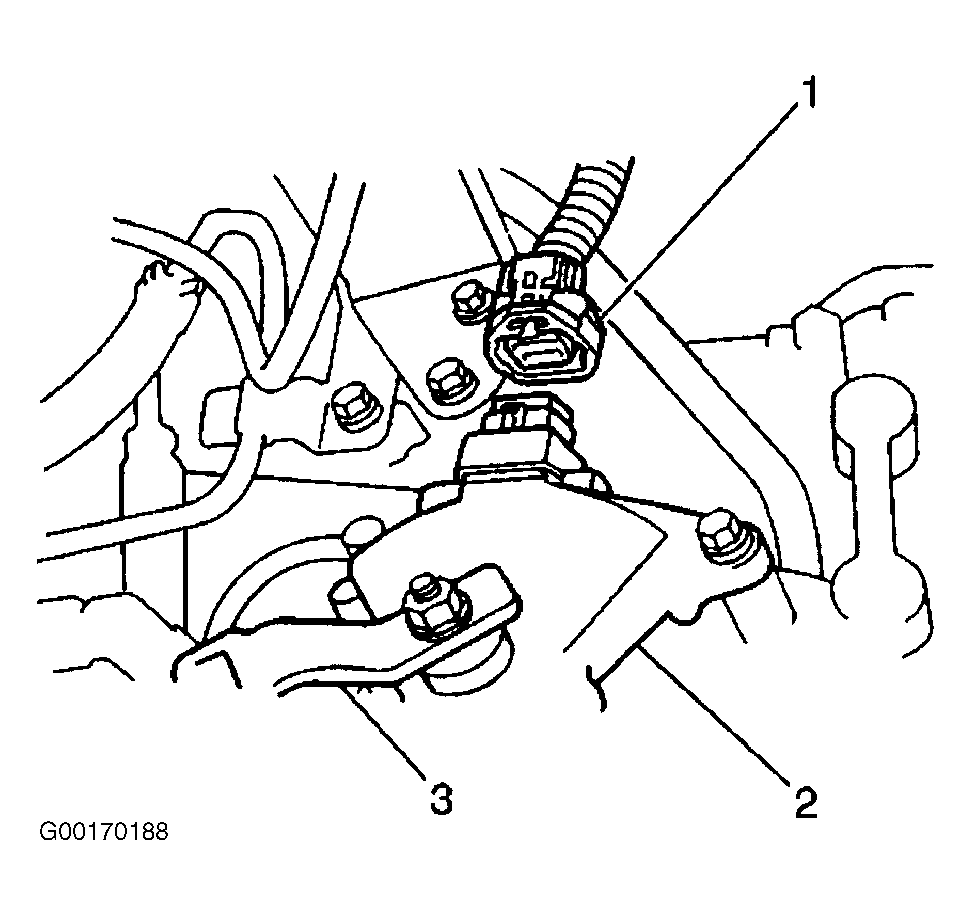

Fig 2: Disconnecting PNP Switch Electrical Connector
G00170188Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Manual Lever
G00170189Courtesy of GENERAL MOTORS CORP.
