Park/Neutral Position Switch: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PNP switch to the transaxle. Secure with 2 bolts. DO NOT tighten fully.

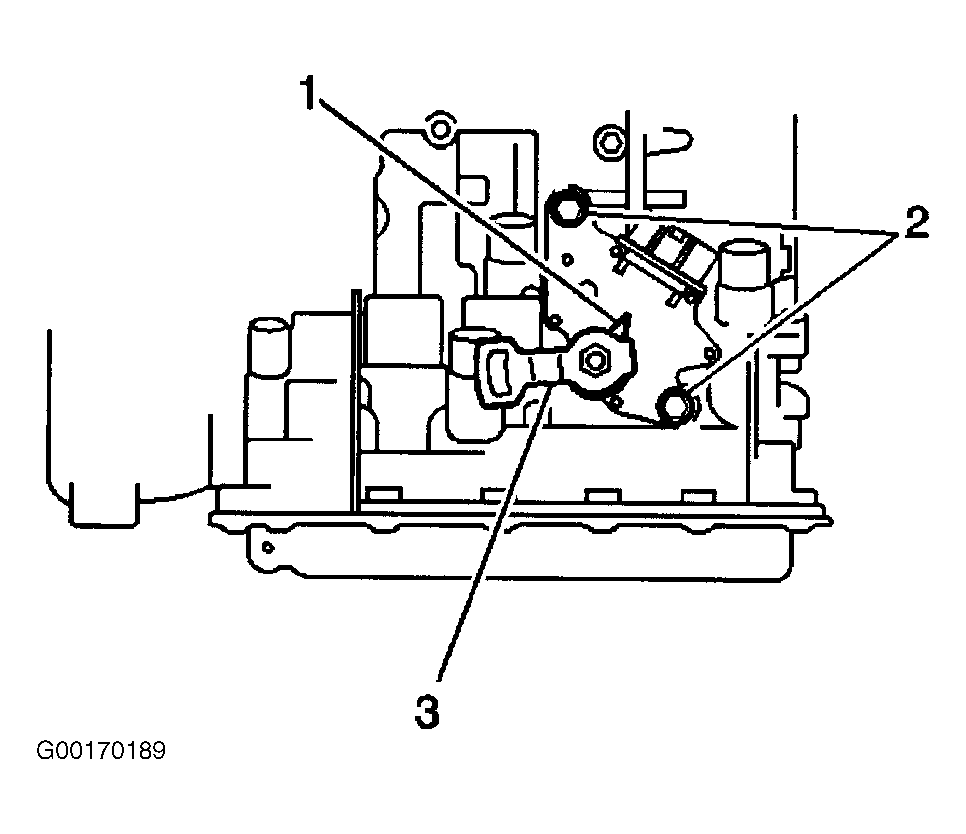

  2. Install a new lock plate (1) and the manual shaft nut (3) onto the PNP switch. See Figure . Tighten nut to specification. See TORQUE SPECIFICATIONS  .
  3. Temporarily install the manual lever.
  4. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches. See Fig 1 .
  5. Remove the manual lever.
  6. Align the groove (1) with the neutral base line (2). See Fig 2 .
  7. Hold the switch in position, then tighten the 2 PNP switch bolts to specification. See TORQUE SPECIFICATIONS  .
  8. Stake the lock plate over the manual shaft nut. See Fig 3 .
  9. Install the manual lever onto the manual shaft. Secure the manual lever with one lock washer and nut. Tighten nut to specification. See TORQUE SPECIFICATIONS  .
  10. Install the PNP shift electrical connector to the PNP switch.
  11. Install the shift select cable and nut to the manual lever. See Fig 4 . Tighten nut to specification. See TORQUE SPECIFICATIONS  .
  12. Install the shift select cable in the retaining bracket (2), then install the clip (3).
  13. Install the battery tray in the vehicle, then the 4 battery tray retaining bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
  14. Install the battery.
  15. Apply the parking brake and block the vehicle wheels.
  16. With the manual selector in Park position, turn the ignition switch to START and verify that the starter motor operates.
  17. Stop the engine and return the ignition switch to the ON position.
  18. Move the manual selector from the Park position to the Neutral position and verify that the starter motor operates.
  19. Verify that the starter motor DOES NOT operate in "D", "2", "L" or "R".

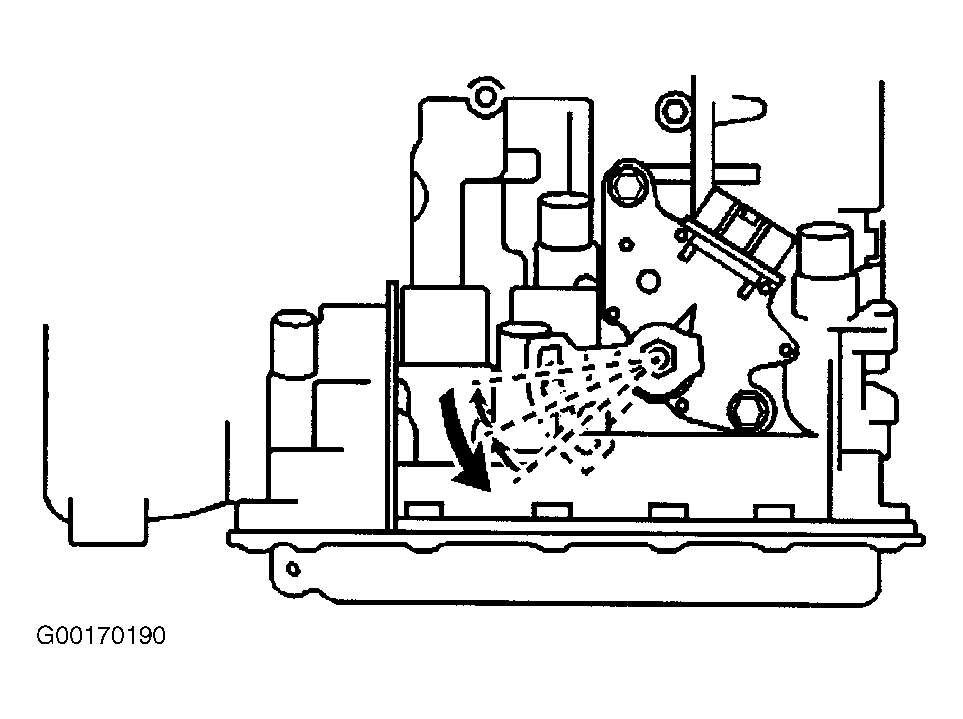

Fig 1: Locating Manual Lever
G00170190Courtesy of GENERAL MOTORS CORP.

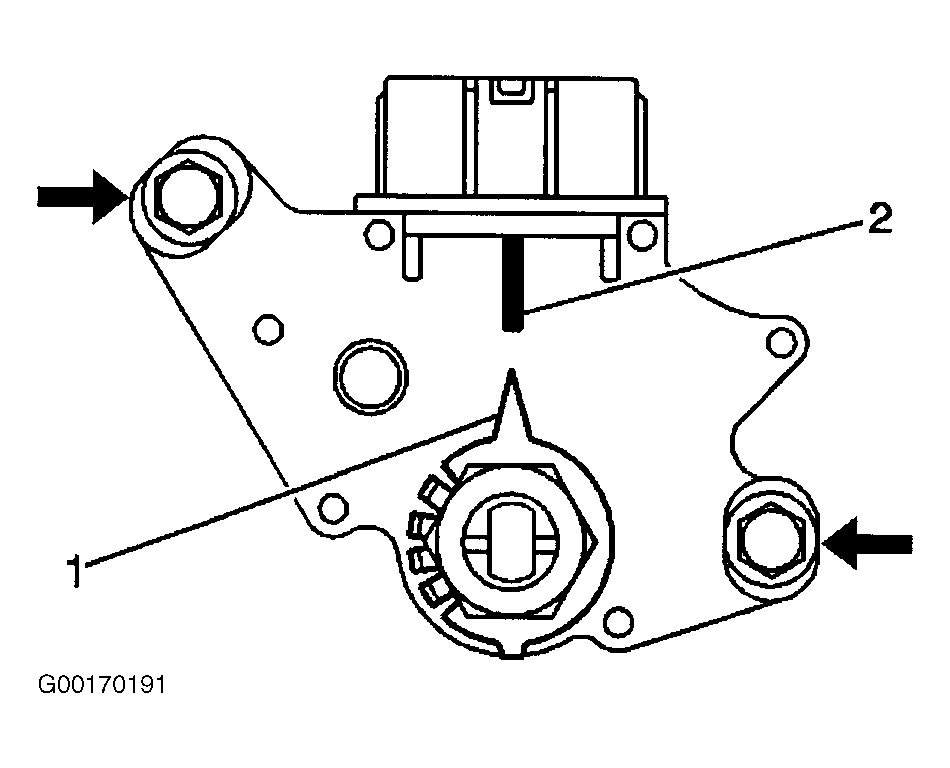

Fig 2: Alining Groove & Neutral Base Line
G00170191Courtesy of GENERAL MOTORS CORP.

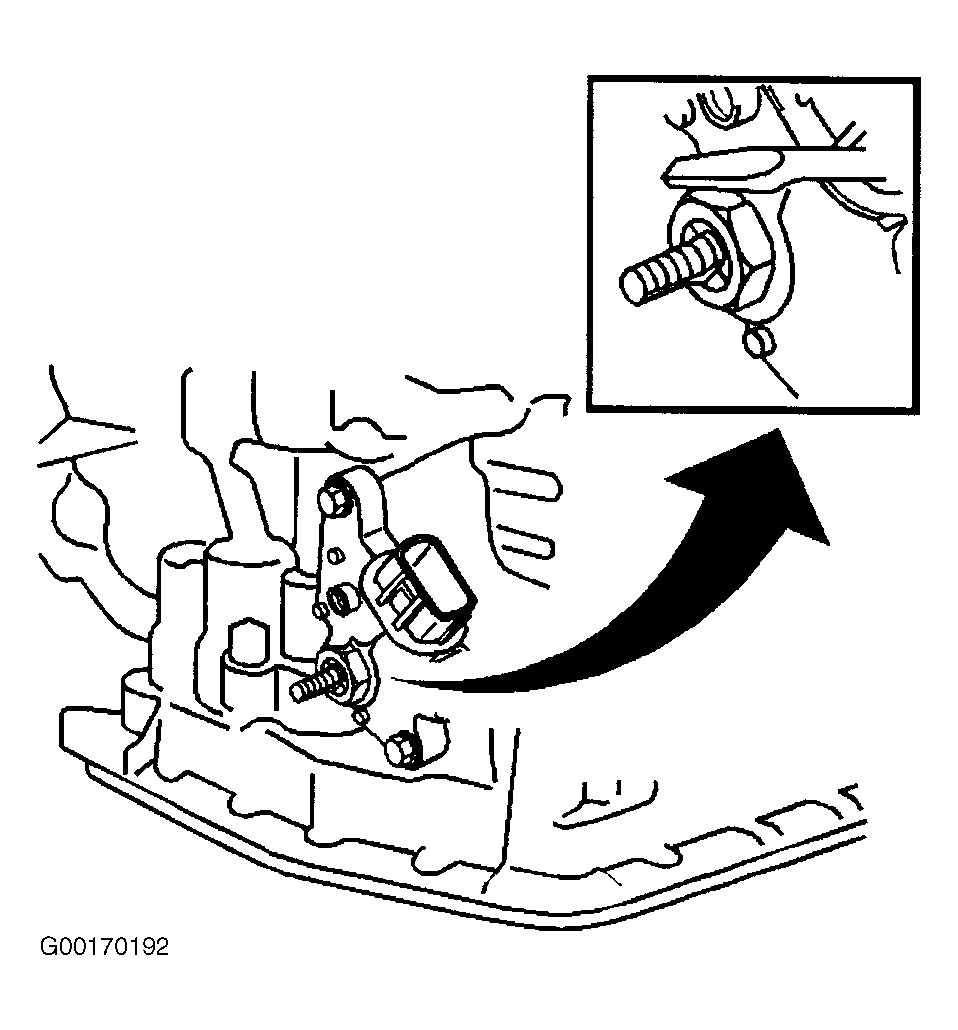

Fig 3: Staking Lock Plate
G00170192Courtesy of GENERAL MOTORS CORP.

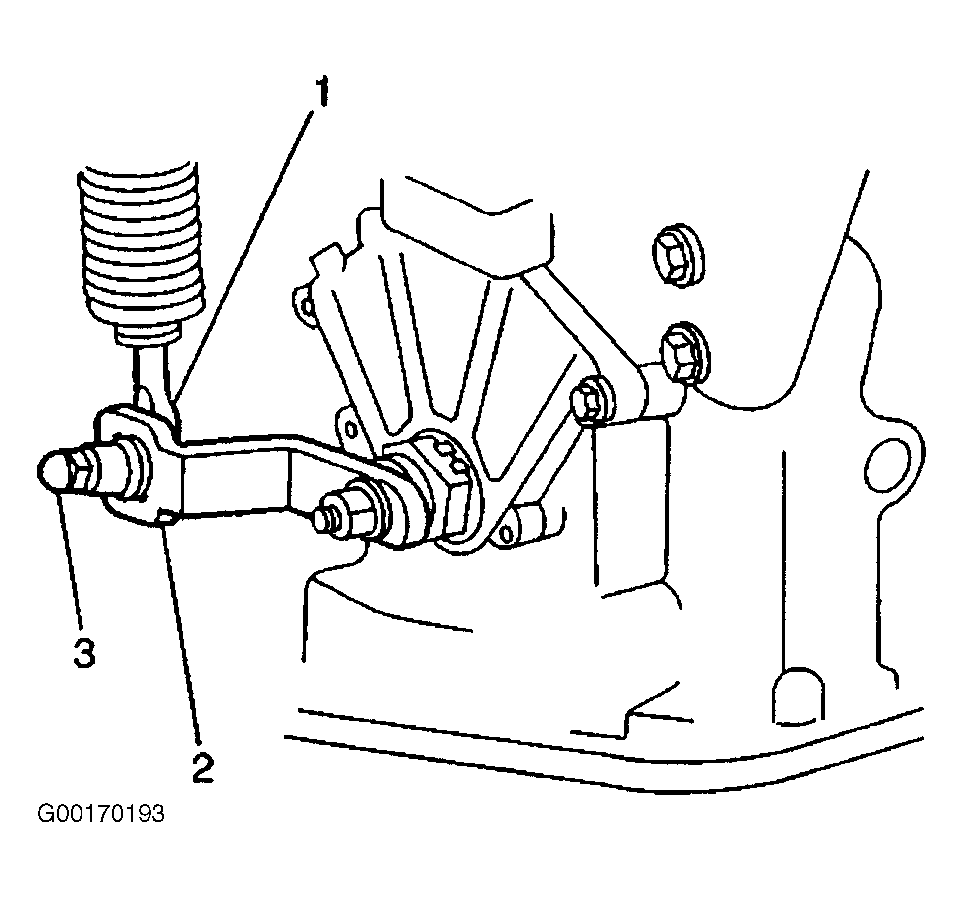

Fig 4: Installing Shift Select Cable
G00170193Courtesy of GENERAL MOTORS CORP.
