Windshield Wiper Motor

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

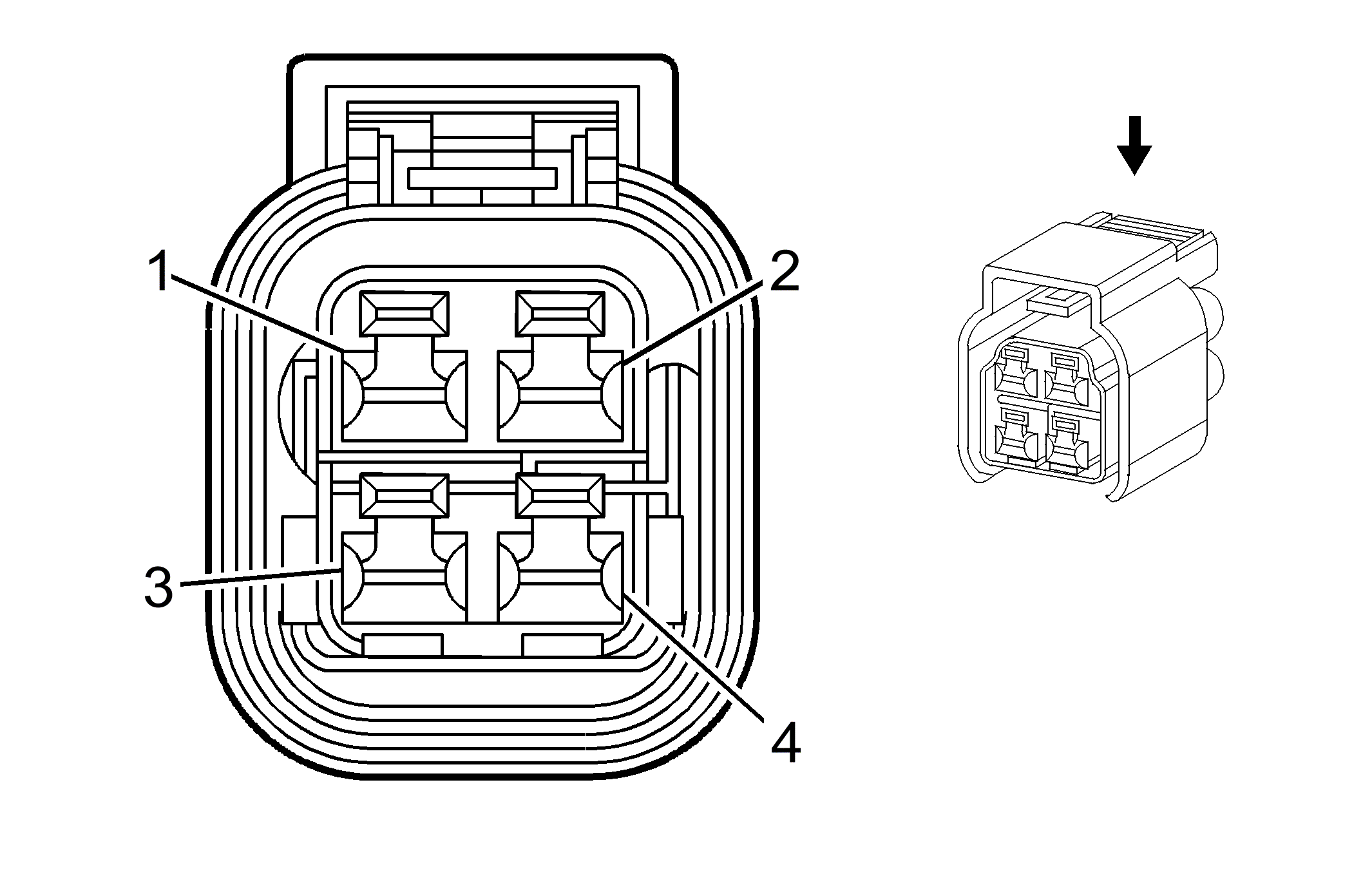

Fig 1: Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 YE	196	Windshield Wiper Motor Park Switch Signal
2	1 BK	150	Ground
3	1 PU	92	Windshield Wiper Motor High Speed
4	1 D-GN	95	Windshield Washer Switch Signal

Connector Part Information

OEM: 13579273
Service: See Catalog
Description: 4-Way F 2.8 MCP-E, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
