Windshield Washer Fluid Pump - Front

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

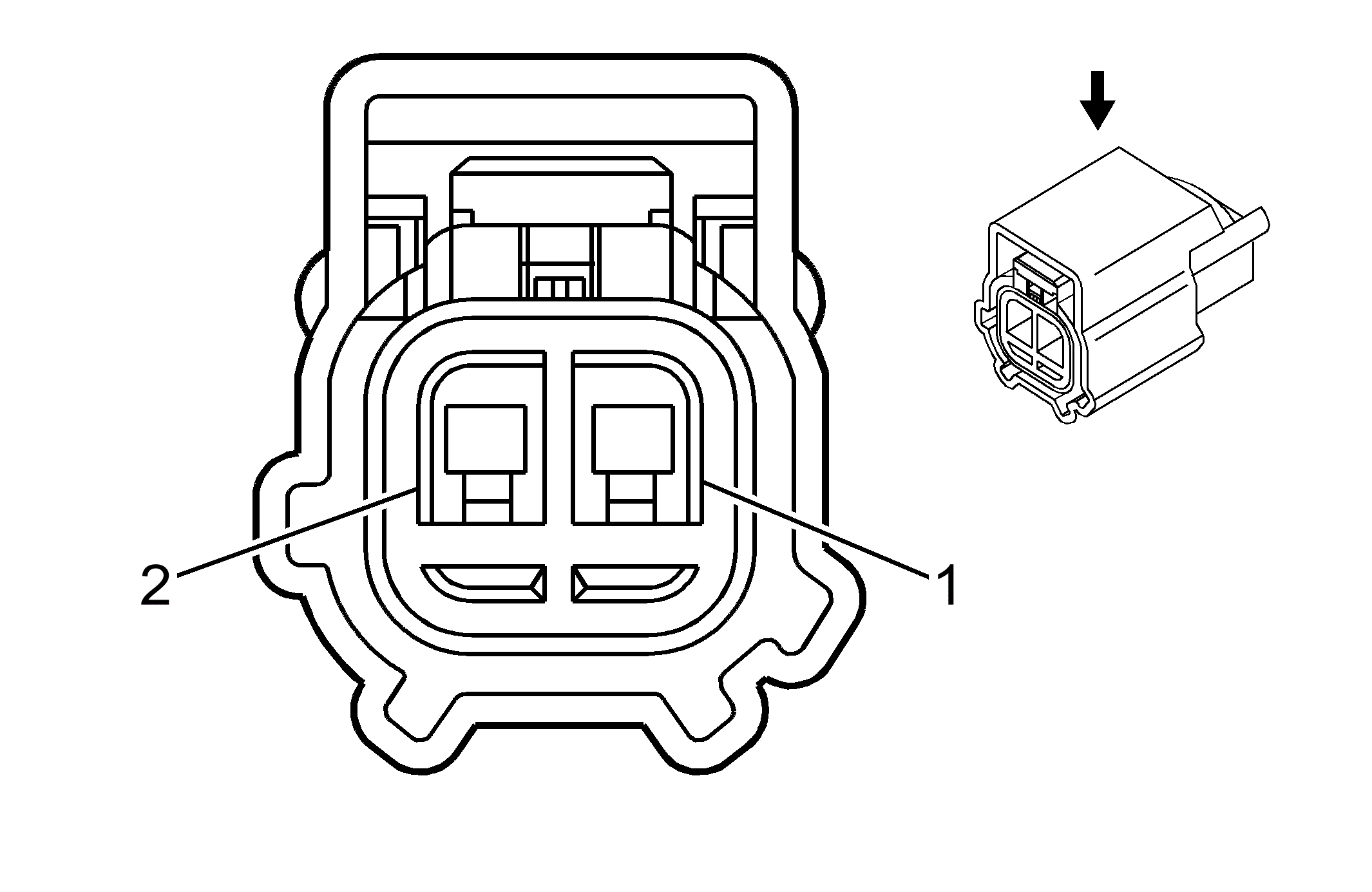

Fig 1: Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 OG	228	Windshield Washer Pump Control
2	0.5 BK	150	Ground

Connector Part Information

OEM: 15416991
Service: See Catalog
Description: 2-Way F 1.5, Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)
