Window Switch - Passenger

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

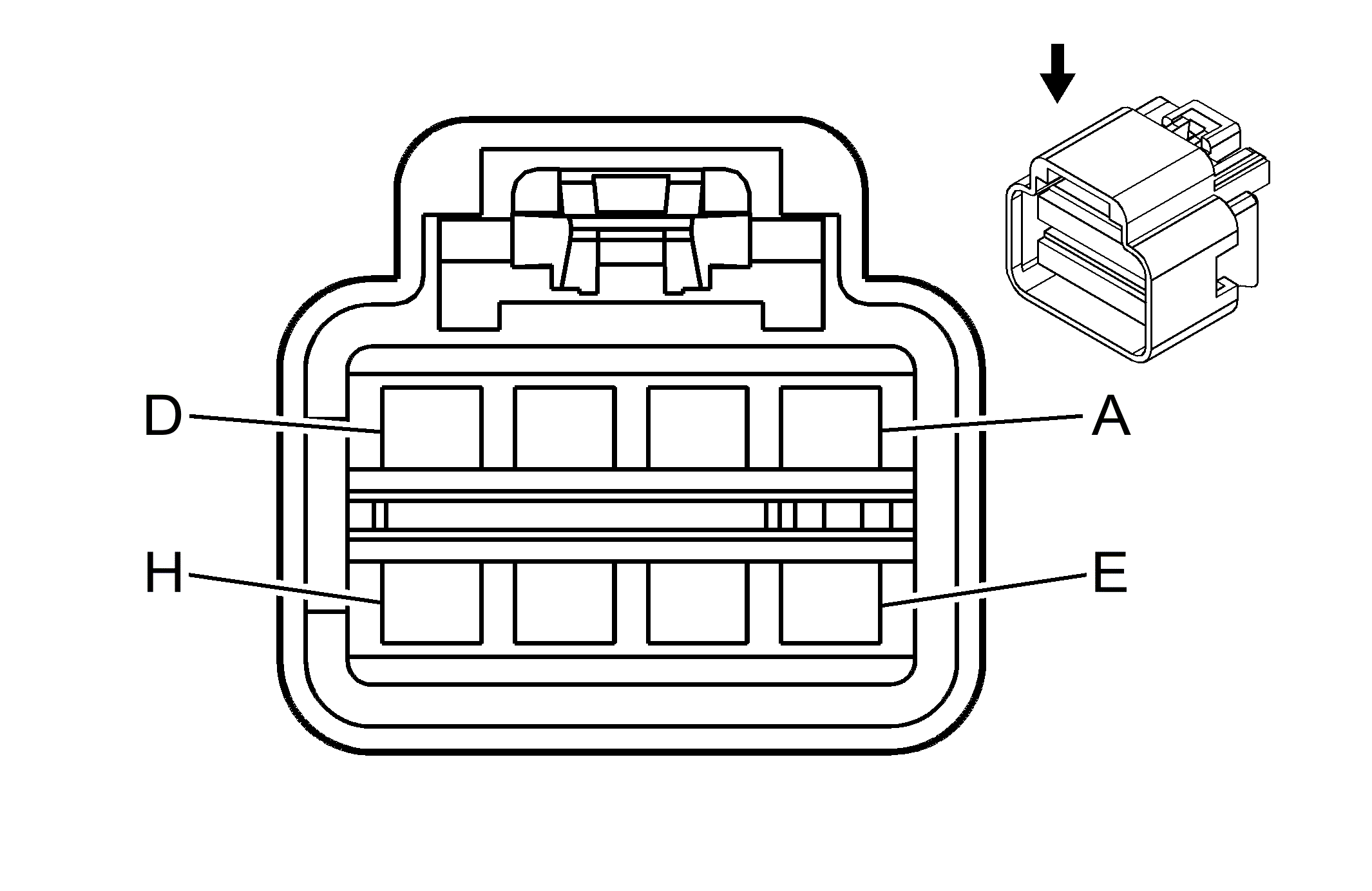

Fig 1: Window Switch - Passenger Connector End View
GM655835Courtesy of GENERAL MOTORS CORP.
Window Switch - Passenger

Pin Wire Circuit Function
A 2 L-BU 166 Power Window Master Switch Right Front Up Signal
B 2 YE 743 Accessory Voltage
C 0.35 BK 450 Ground
D 2 TN 167 Power Window Master Switch Right Front Down Signal
E 2 D-BU 666 Power Window Motor Right Front Up Control
F-G - - Not Used
H 2 BN 667 Power Window Motor Right Front Down Control
Connector Part Information
  • OEM: 15326925
  • Service: See Catalog
  • Description: 8-Way F GT 280 Series, Sealed (BK)
Terminal Part Information
  • Pins: A-B, D-E, H
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: C
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
