Window Motor - Passenger

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

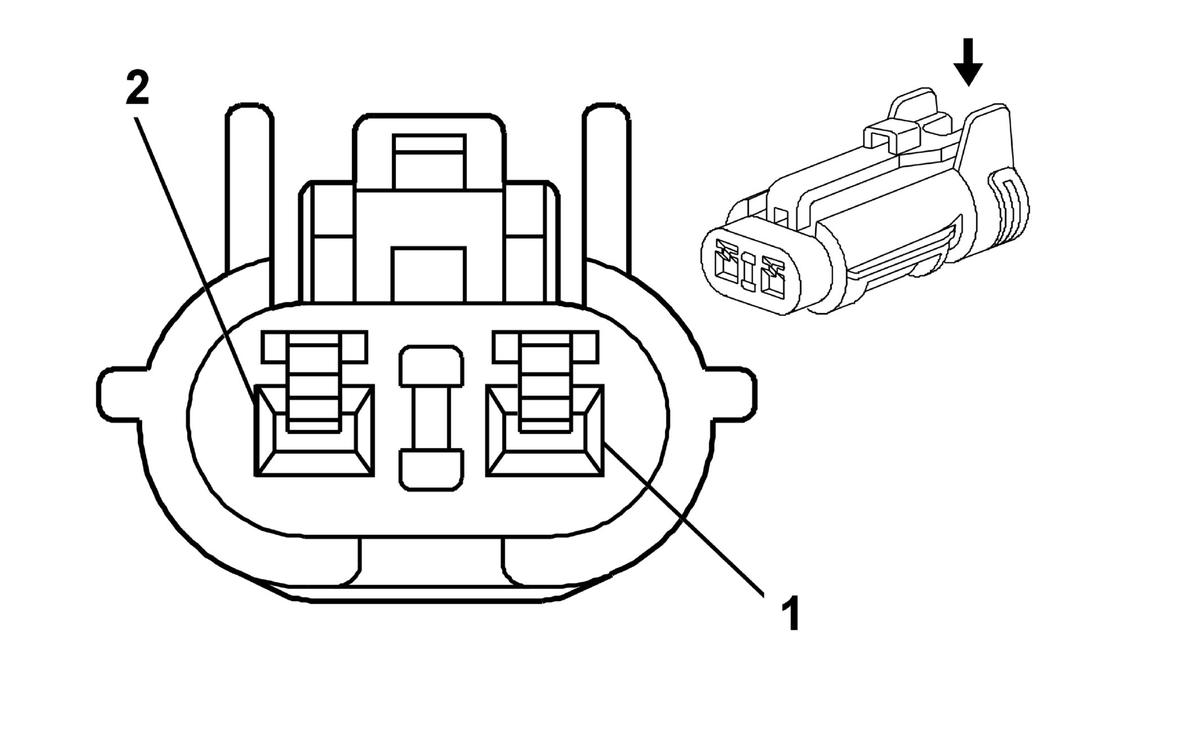

Fig 1: Window Motor - Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	2 D-BU	666	Power Window Motor Right Front Up Control
2	2 BN	667	Power Window Motor Right Front Down Control

Connector Part Information

OEM: 15386517
Service: See Catalog
Description: 2-Way F 070 SWP Sealed (WH)

Terminal Part Information

Terminal/Tray: 7116-1472/12
Core/Insulation Crimp: C/5
Release Tool/Test Probe: 12094429/J-35616-33 (YE)
