Window Motor - Left Rear

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

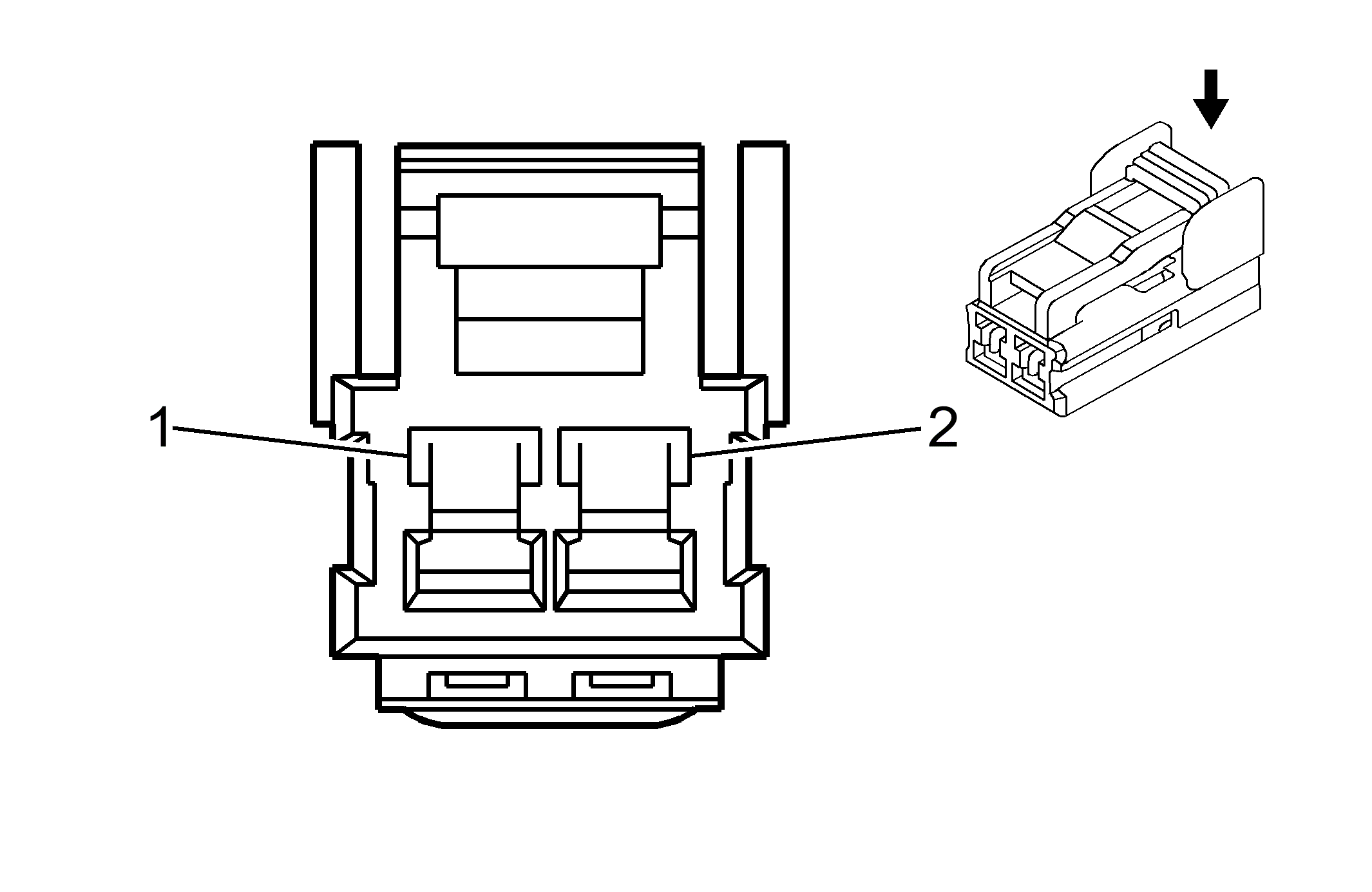

Fig 1: Window Motor - Left Rear Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	2 D-BU	668	Power Window Motor Left Rear Up Control
2	2 BN	669	Power Window Motor Left Rear Down Control

Connector Part Information

OEM: 13524077
Service: See Catalog
Description: 2-Way F 250 Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
