Tail/Stop Lamp - Right
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

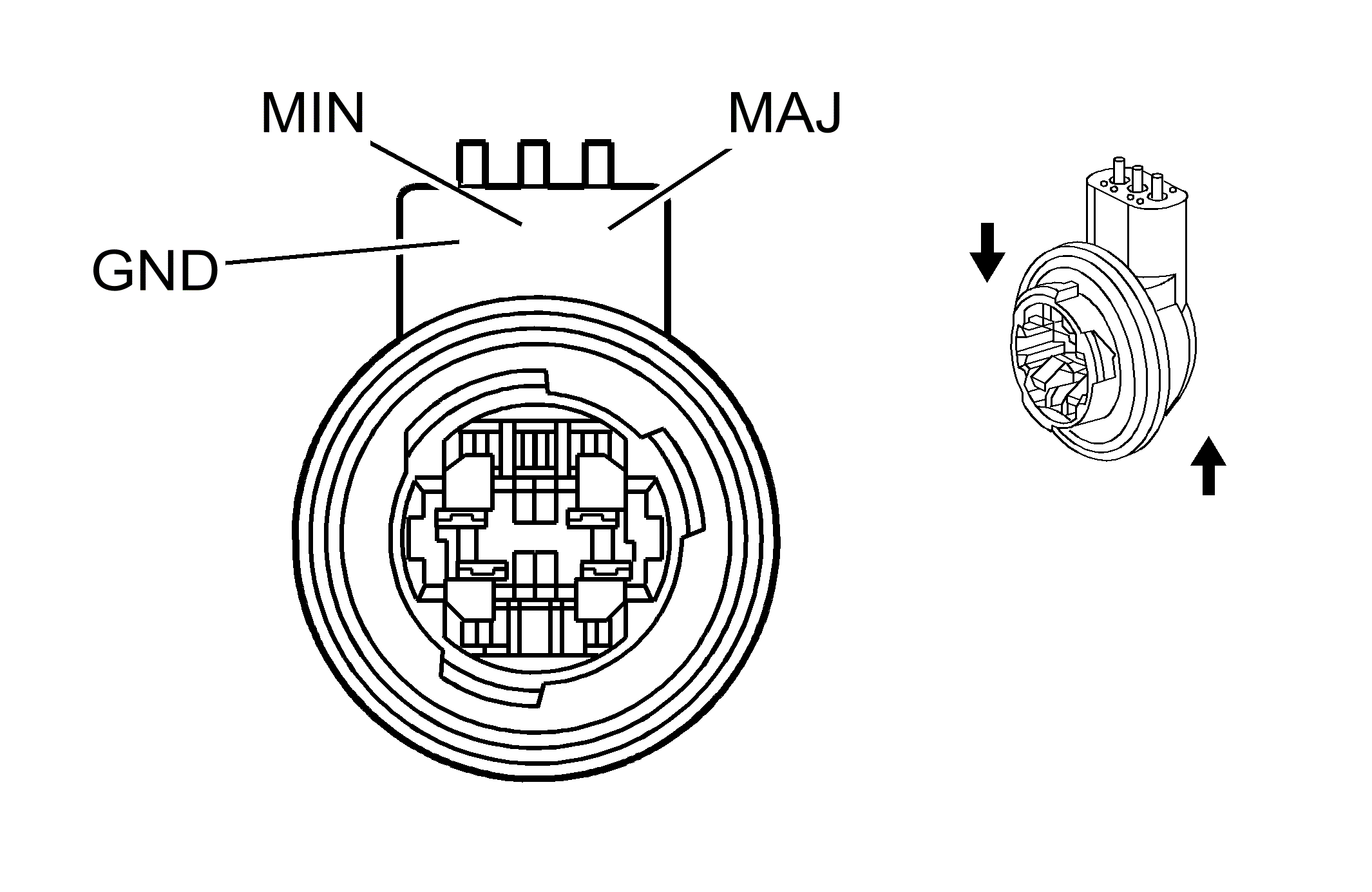

Courtesy of GENERAL MOTORS CORP. Tail/Stop Lamp - Right
| Pin |
Wire |
Circuit |
Function |
| MAJ |
0.5 RD |
20 |
Stop Lamp Supply Voltage |
| MIN |
0.5 D-BU |
309 |
Park Lamp Supply Voltage |
| GND |
0.5 BK |
550 |
Ground |
Connector Part Information
- OEM: 021940459
- Service: See Catalog
- Description: 3-Way F Bulb 3057 Socket Sealed (BK)
|
