Steering Wheel Control Switch - Left (UK3)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

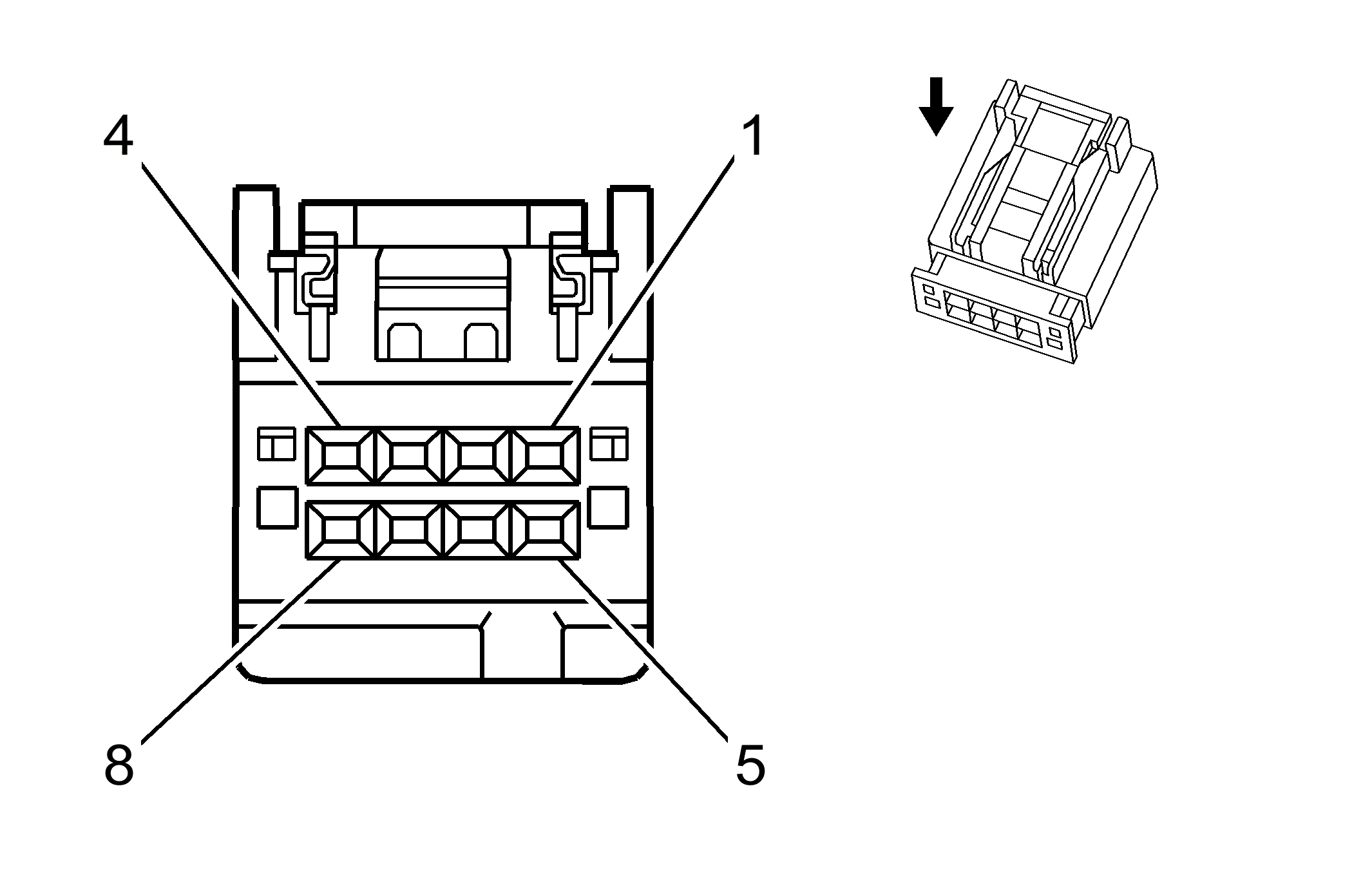

Fig 1: Steering Wheel Control Switch - Left (UK3) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 PU	7005	Instrument Panel Lamp Supply Voltage
2-4	-	-	Not Used
5	0.35 D-BU	351	Ground
6	0.35 GY	1884	Cruise Control Switch Signal
7	0.35 GN	7158	Cruise Control Indicator Dimming Signal
8	0.35 PK	1444	5 Volt Reference

Connector Part Information

OEM: 50-57-9407
Service: See Catalog
Description: 8-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
