Steering Angle Sensor (LY7/LZ4)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

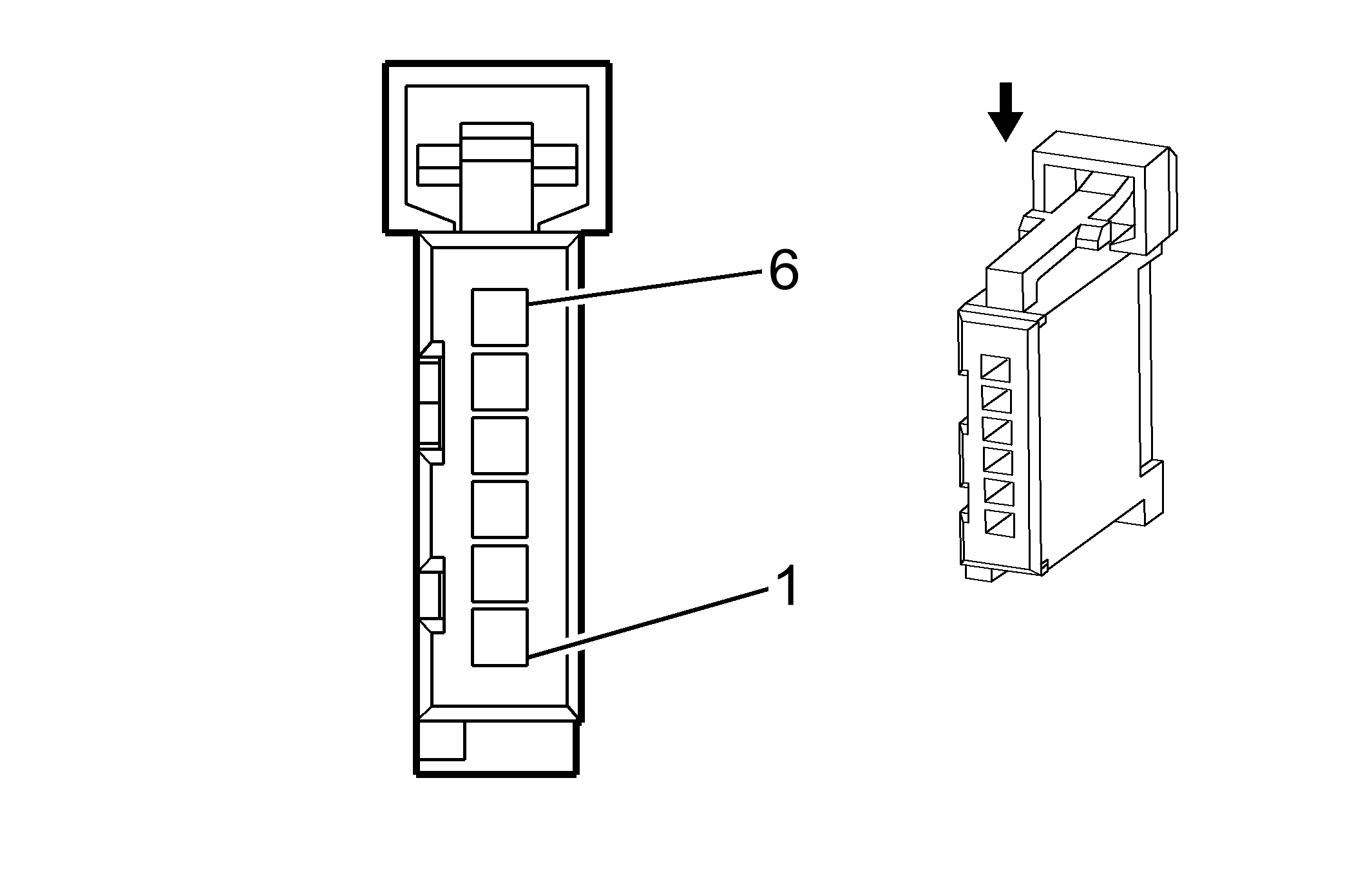

Fig 1: Steering Angle Sensor (LY7/LZ4) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 GY	6044	Steering Angle Sensor 5-Volt Reference
2	0.5 BN/WH	6437	CAN Bus High Serial Data
3	0.5 TN/WH	6433	CAN Bus High Serial Data
4	0.5 L-GN/BK	6432	CAN Bus Low Serial Data
5	0.5 WH/BK	6436	CAN Bus Low Serial Data
6	0.5 OG/BK	6045	Steering Angle Sensor Low Reference

Connector Part Information

OEM: 13547374
Service: See Catalog
Description: 6-Way F 064 GET Series (BK)

Terminal Part Information

Terminal/Tray: 1393364-2/7
Core/Insulation Crimp: K/K
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
