Seat Adjuster Motor Assembly - Driver (AE8)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

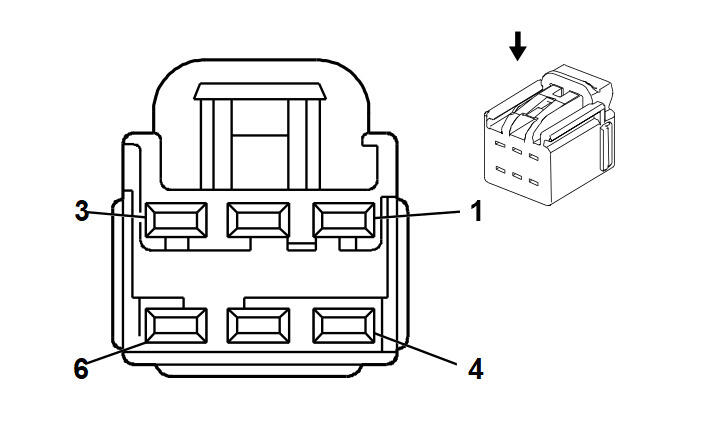

Fig 1: Seat Adjuster Motor Assembly - Driver (AE8) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	3 PU	285	Seat Horizontal Forward Control
2	3 L-GN	284	Seat Horizontal Rearward Control
3	3 L-BU	286	Seat Front Vertical Up Control
4	3 L-GN	287	Seat Front Vertical Down Control
5	3 BN	282	Seat Rear Vertical Up Control
6	3 GY	283	Seat Rear Vertical Down Control

Connector Part Information

OEM: 15326924
Service: See Catalog
Description: 6-Way F GT 280 Series (BK)
