Rear Wheel Drive Module Clutch (AWD)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

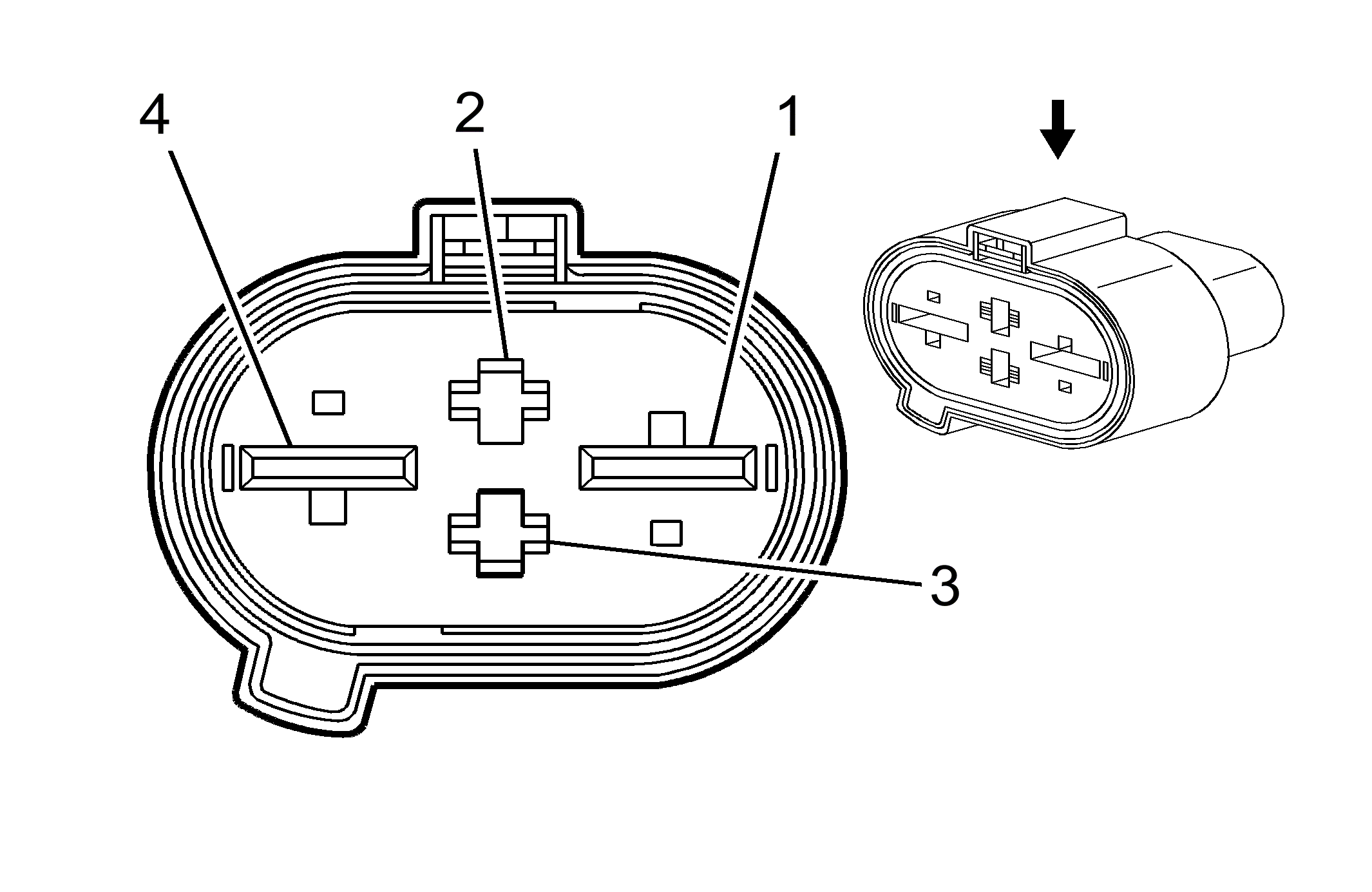

Fig 1: Rear Wheel Drive Module Clutch (AWD) Connector End View
GM2002691Courtesy of GENERAL MOTORS CORP.
Rear Wheel Drive Module Clutch (AWD)

Pin Wire Circuit Function
1 0.5 TN 1569 Lock Solenoid Control
2 0.5 OG 1568 Diagnostic Enable
3 0.5 D-BU 5094 Low Reference
4 0.5 L-BU 5095 Coil Temperature Sensor Signal
Connector Part Information
  • OEM: 10756588
  • Service: See Catalog
  • Description: 4-Way F 5.8 Timer 9.5 Series Sealed (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
