Rear Differential Clutch Control Module X1 (AWD)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

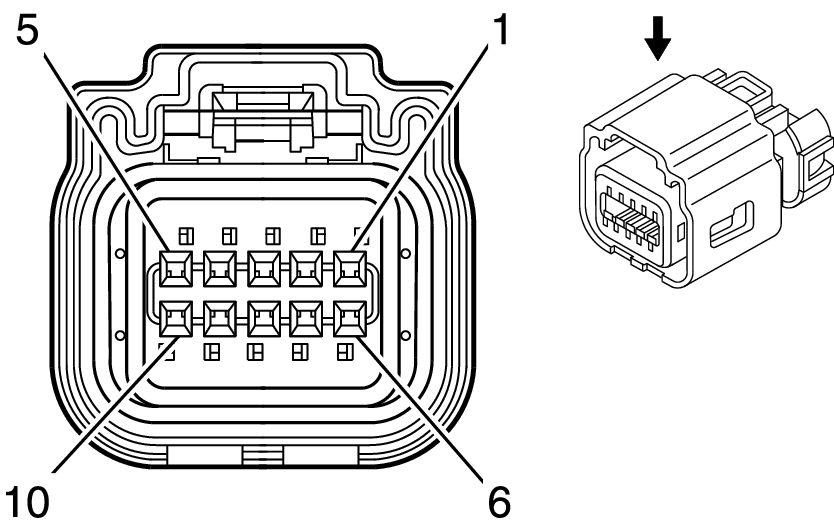

Fig 1: Rear Differential Clutch Control Module X1 (AWD) Connector End View
GM1845114Courtesy of GENERAL MOTORS CORP.
Rear Differential Clutch Control Module X1 (AWD)

Pin Wire Circuit Function
1-2 - - Not Used
3 0.5 BK 550 Ground
4 - - Not Used
5 0.5 L-BU 5986 Serial Data Communication Enable
6 0.5 RD/WH 2140 Battery Positive Voltage
7 - - Not Used
8 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
9 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
10 - - Not Used
Connector Part Information
  • OEM: 13509360
  • Service: See Catalog
  • Description: 10-Way F Kaizen 0.64 Series, Sealed (BK)
Terminal Part Information
  • Pins: 3, 5-6, 8-9
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215A/J-35616-64B (L-BU)
