Radio Antenna

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

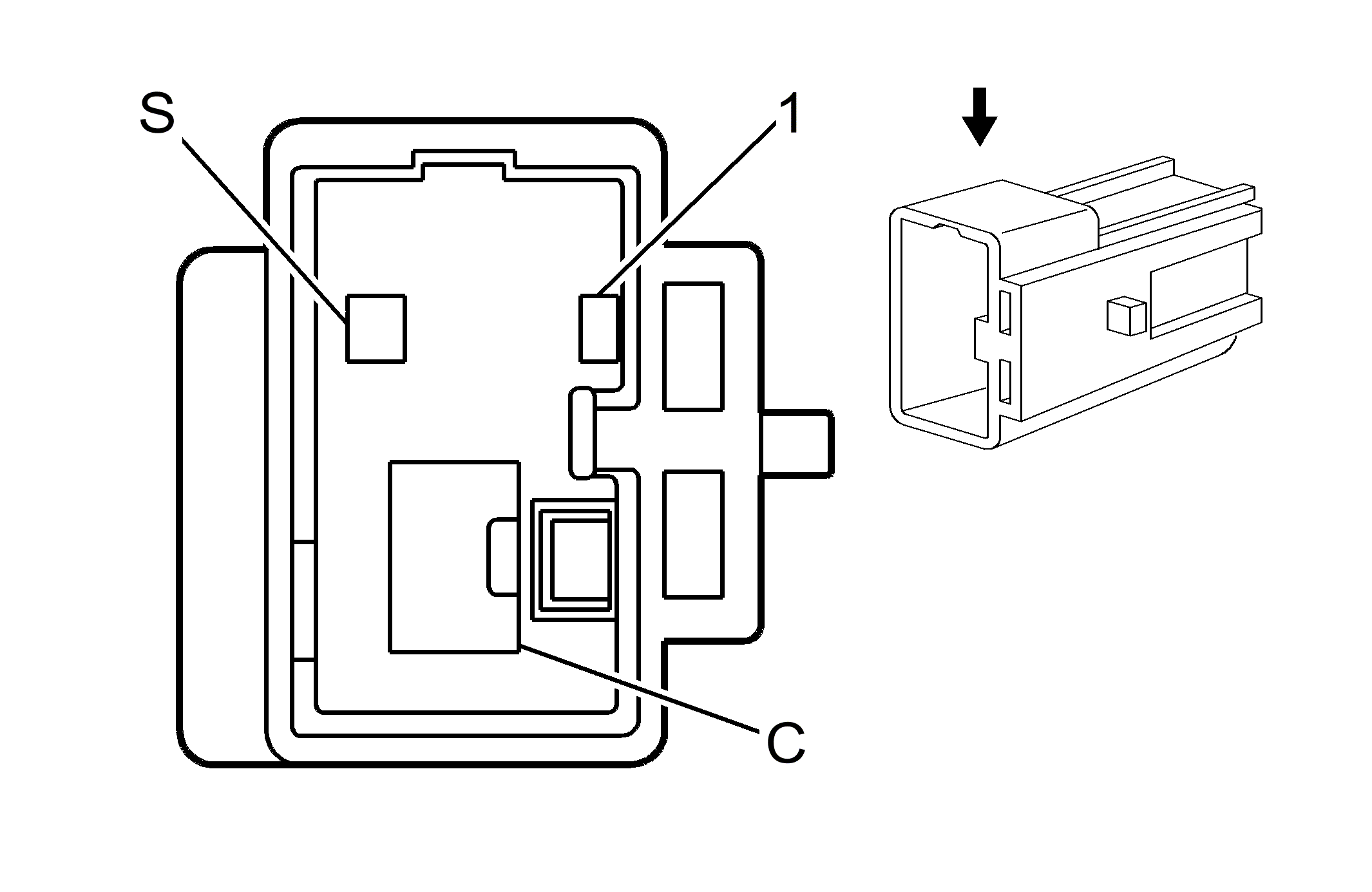

Fig 1: Radio Antenna Connector End View
GM1850607Courtesy of GENERAL MOTORS CORP.
Radio Antenna

Pin Wire Circuit Function
1 0.35 RD 7066 Entertainment Remote Enable Signal
C - - Coax
S - - Not Used
Connector Part Information
  • OEM: GT13GM-1/1S-HU
  • Service: See Catalog
  • Description: 3-Way M GT13 Coaxial Series (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
