Liftgate Latch Assembly

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

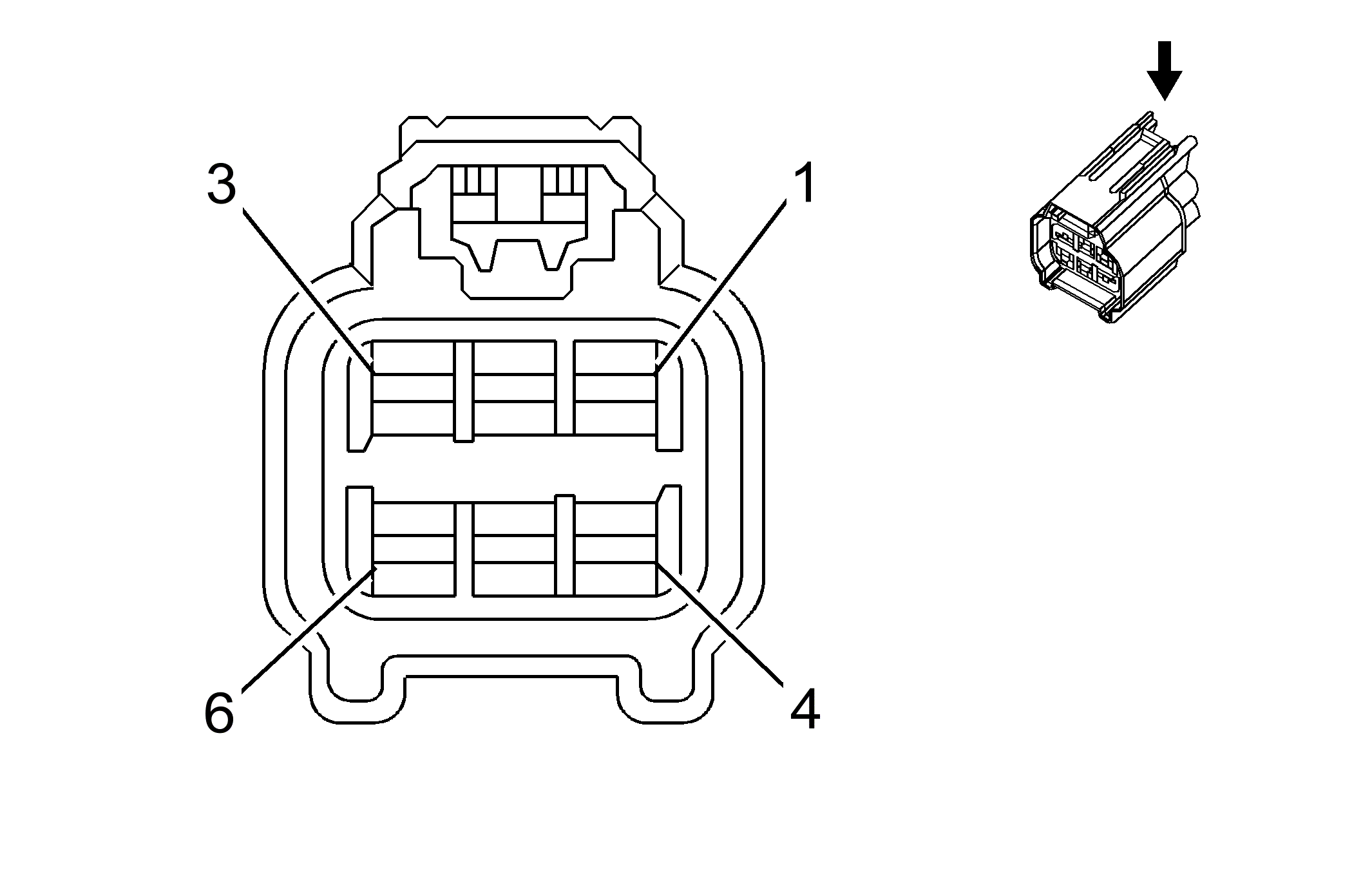

Fig 1: Liftgate Latch Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 L-BU	6128	Rear Closure Unlatch Motor Unlatch Control
2	-	-	Not Used
3	0.5 BK	650	Ground
4	-	-	Not Used
5	0.5 BK	650	Ground
6	0.35 PK/BK	1303	Liftgate Ajar Switch Signal

Connector Part Information

OEM: 15476199
Service: 88988358
Description: 6-Way F GT 280 Series, Sealed (GN)

Terminal Part Information

Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
