Inside Rearview Mirror (ISRVM)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

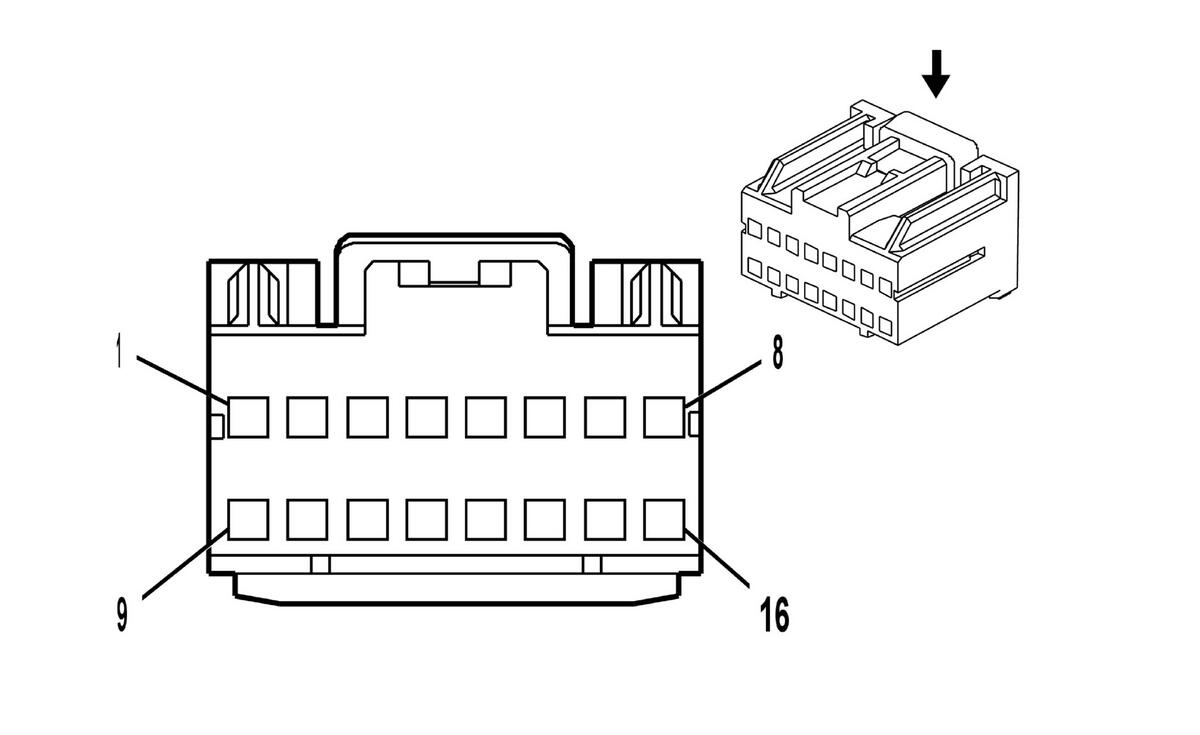

Fig 1: Inside Rearview Mirror (ISRVM) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1-5	-	-	Not Used
6	0.35 PK	6972	Camera Signal (+) (UVC)
7	0.35 L-BU	6973	Camera Signal (-) (UVC
8	0.35 BK	650	Ground
9	0.35 L-GN	24	Backup Lamp Supply Voltage
10-12	-	-	Not Used
13	0.35 PK	239	Ignition 1 Voltage
14-16	-	-	Not Used

Connector Part Information

OEM: 15441350
Service: See Catalog
Description: 16-Way FMicro Pack 100A (BK)

Terminal Part Information

Terminal/Tray: 928999-5/15
Core/Insulation Crimp: H/H
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
