Inflatable Restraint Vehicle Rollover Sensor

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

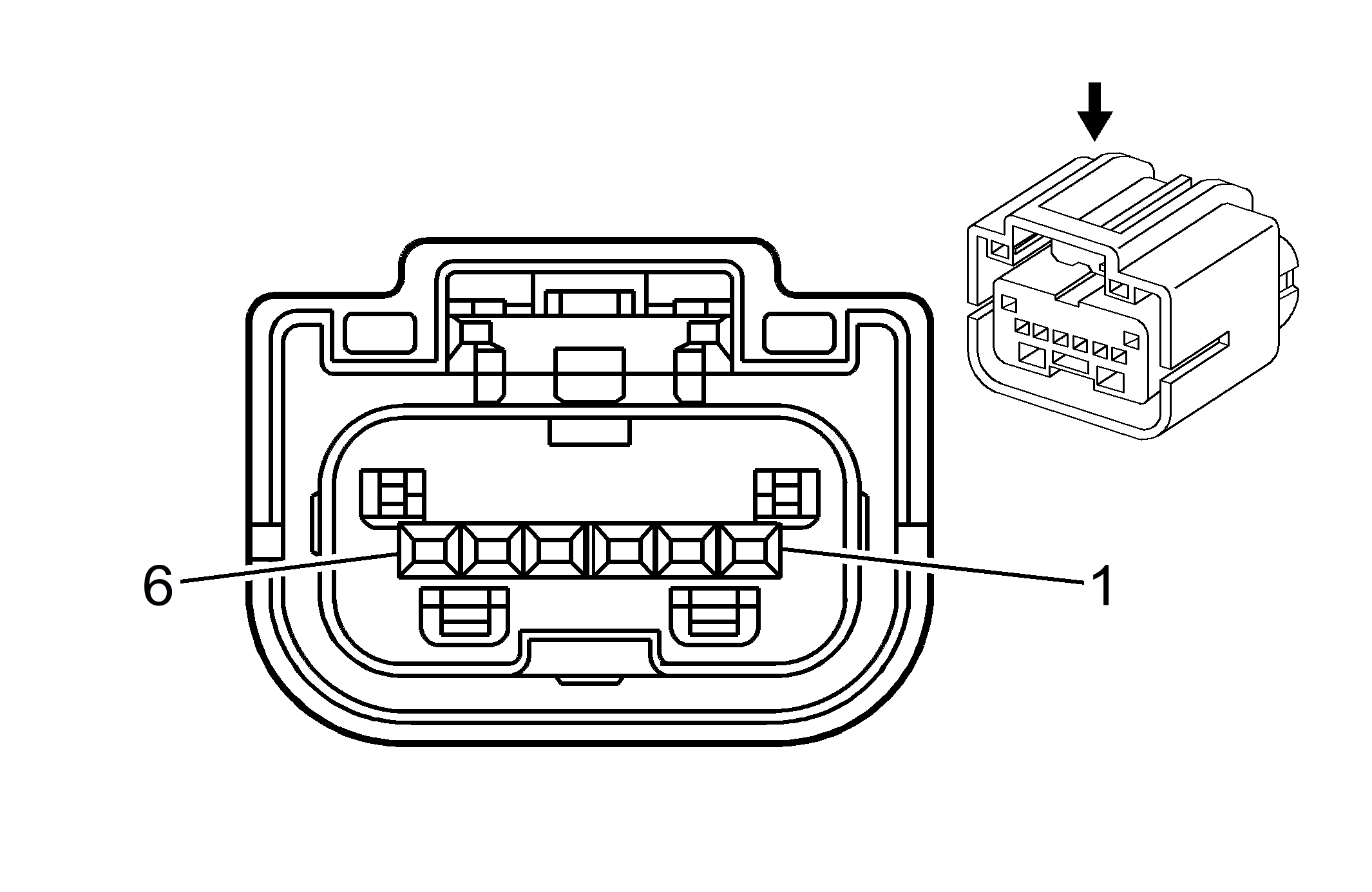

Fig 1: Inflatable Restraint Vehicle Rollover Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 RD/WH	740	Battery Positive Voltage
2	-	-	Not Used
3	0.5 D-GN	5060	Low Speed GMLAN Serial Data
4	-	-	Not Used
5	0.5 YE/BK	5229	Roll Over Sensor High Signal
6	0.5 BK/WH	851	Ground

Connector Part Information

OEM: 13551672
Service: 19149297
Description: 6-Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
