Inflatable Restraint Steering Wheel Module Coil X2

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

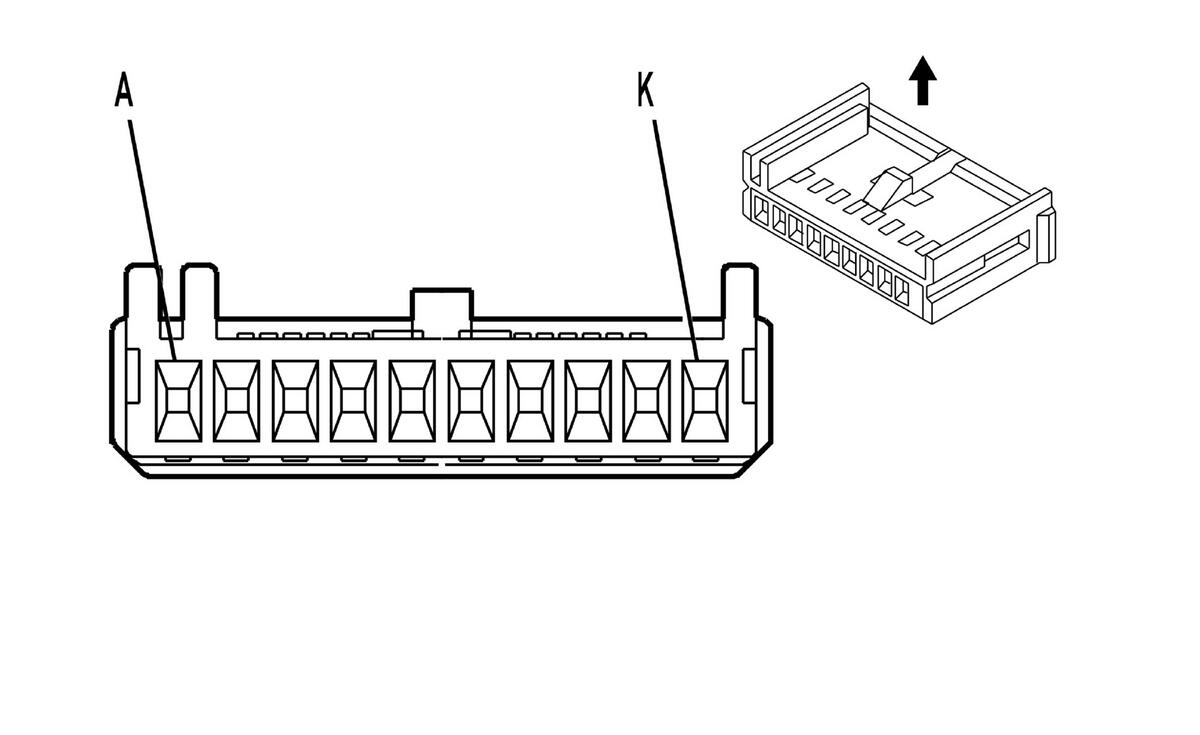

Fig 1: Inflatable Restraint Steering Wheel Module Coil X2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	-	-	Not Used
B	0.35 BN	1011	Remote Radio Control Signal
C	0.35 PK/BK	350	Ground
D	0.35 GY	1884	Cruise Control Switch Signal
E	0.35 D-BU	1444	12-Volt Reference
F	0.35 PU/BK	7005	I/P Lamp Supply Voltage
G	0.35 D-GN	7158	Cruise Control Switch Signal
H	-	-	Not Used
J	0.35 BK	350	Ground
K	0.35 RD	28	Horn Relay Control

Connector Part Information

OEM: 15393433
Service: 22710638
Description: 10-Way F Micro-Pack 64 Series (BK)

Terminal Part Information

Terminal/Tray: Service with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)
