Inflatable Restraint Side Impact Sensor (SIS) - Left

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

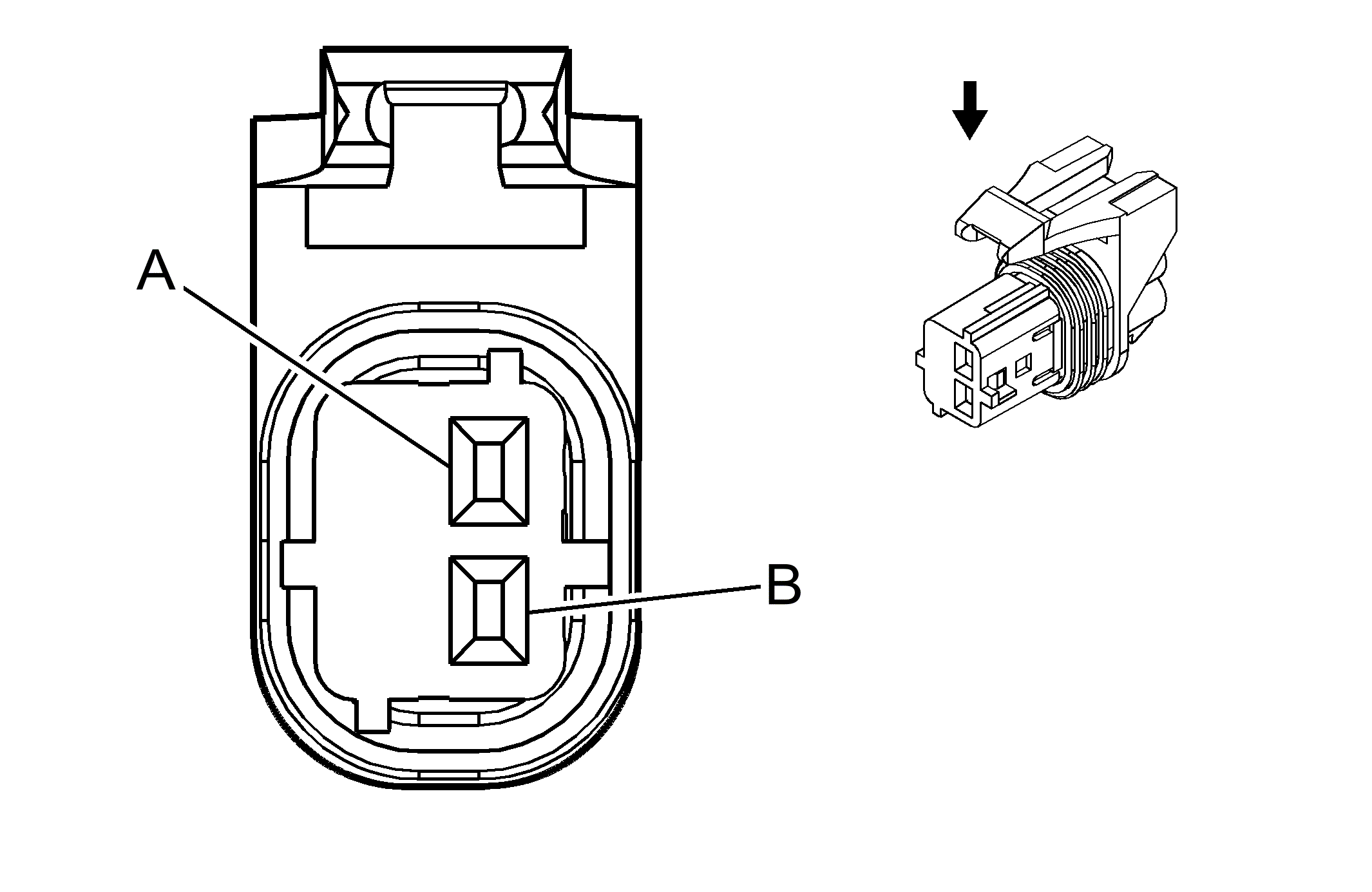

Fig 1: Inflatable Restraint Side Impact Sensor (SIS) - Left Connector End View
GM744046Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Sensor (SIS) - Left

Pin Wire Circuit Function
A 0.35 GY/BK 6621 Left Middle Side Impact Sensing Module Low Reference
B 0.35 D-GN/WH 6620 Left Middle Side Impact Sensing Module Signal
Connector Part Information
  • OEM: 15356723
  • Service: 15356723
  • Description: 2-Way F GT 150 Series Sealed 4.0 (YE)
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
