Inflatable Restraint Side Impact Module - Right (-APL)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

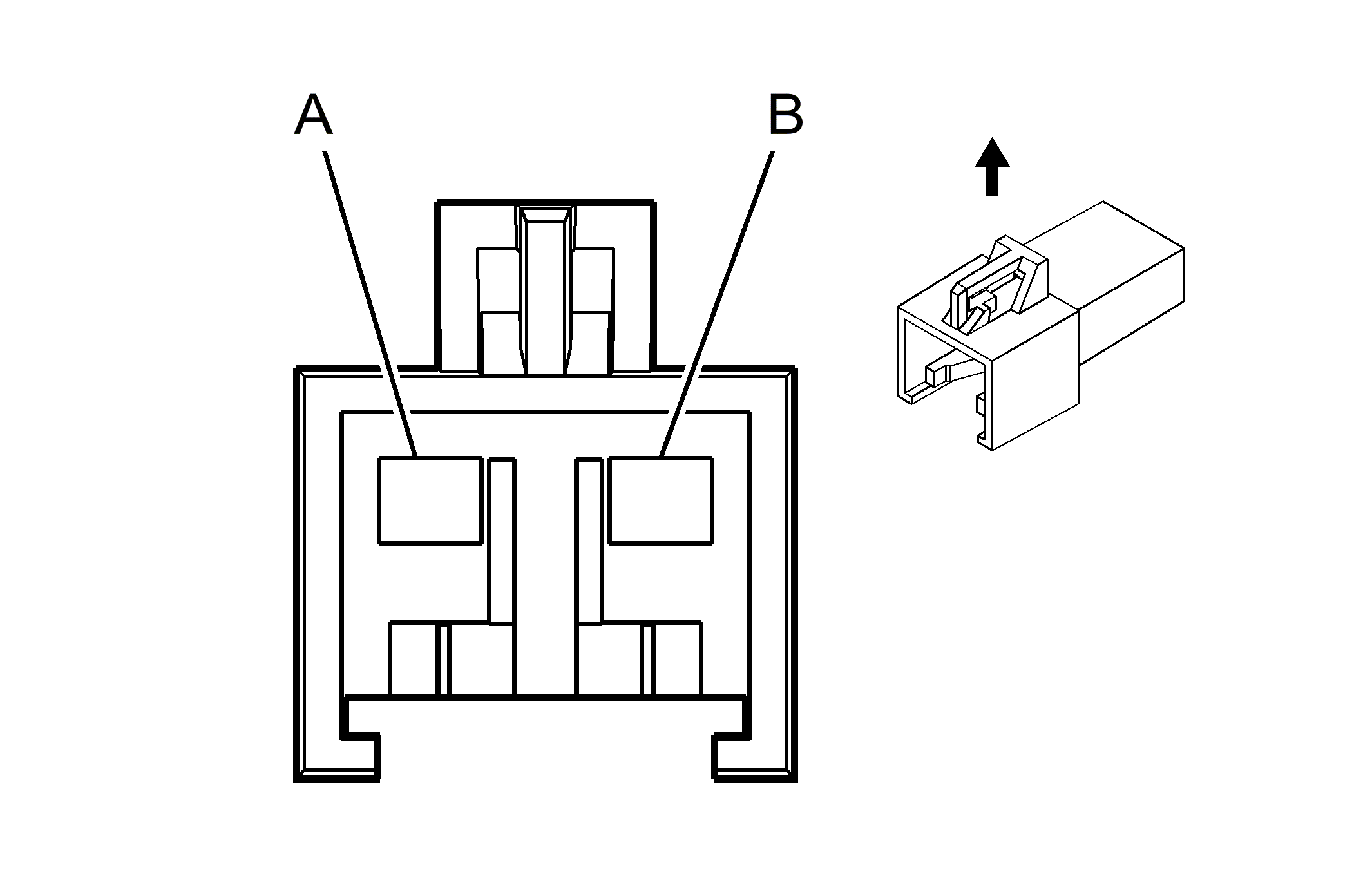

Fig 1: Inflatable Restraint Side Impact Module - Right (Except APL) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.5 L-GN	2136	Side Impact Module - Right Front - Low Control
B	0.5 TN/WH	2135	Side Impact Module - Right Front - High Control

Connector Part Information

OEM: 12186799
Service: 12186799
Description: 2-Way M 280 Series (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12094429/J-35616-5 (PU)
