Ignition Switch (LAT/LE5/LE9)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

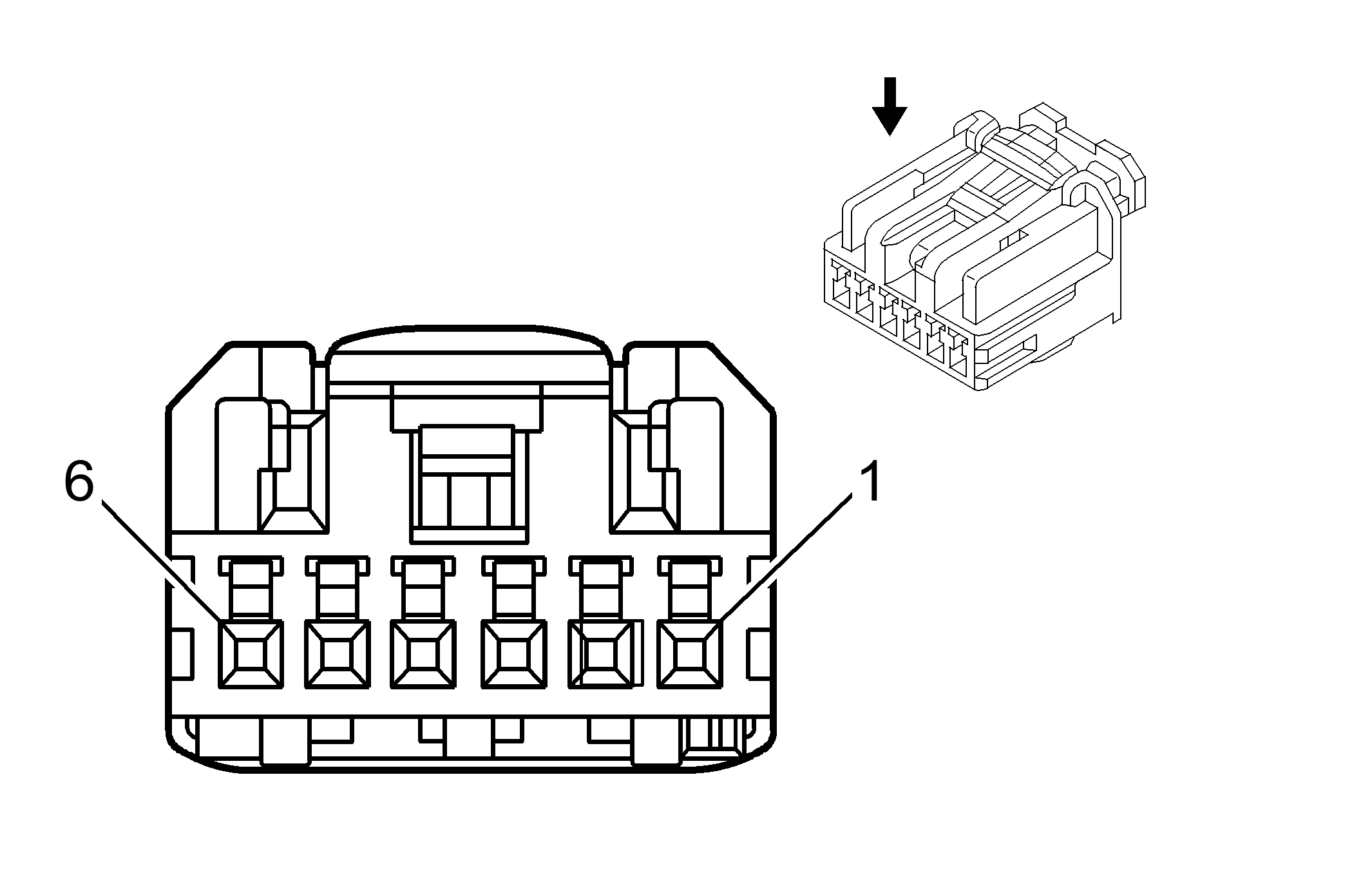

Fig 1: Ignition Switch (LAT/LE5/LE9) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 PK	39	Ignition 1 Voltage
2	0.35 YE	43	Accessory Voltage
3	0.35 RD/WH	1740	Battery Positive Voltage
4	0.35 WH	530	Ignition 0 Voltage
5	0.35 WH/BK	1073	Ignition Key Resistor Signal
6	-	-	Not Used

Connector Part Information

OEM: 15484551
Service: See Catalog
Description: 6-Way F 1.2 HCM (BK)

Terminal Part Information

Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
