Heated Seat Switch - Driver (KA1)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

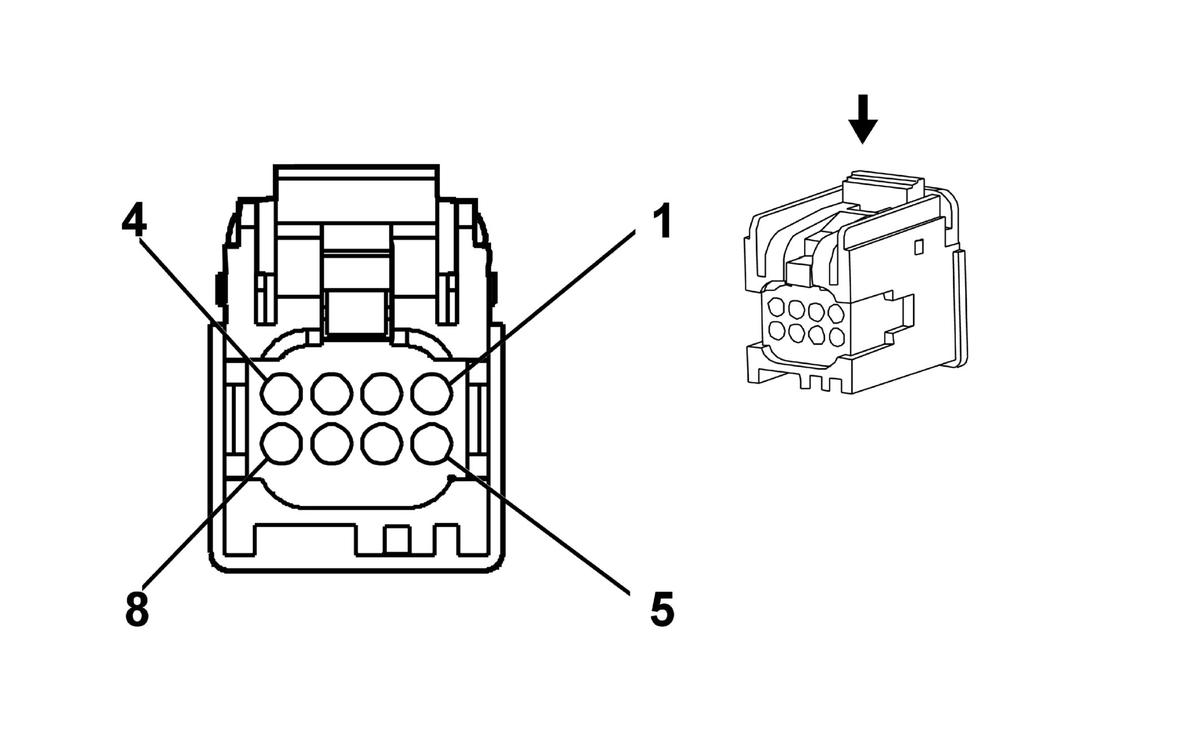

Fig 1: Heated Seat Switch - Driver (KA1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 YE	1491	Backlight Lamps Control
2	0.35 BK	450	Ground
3	0.35 BN	41	Ignition 3 Voltage
4	0.35 D-BU	6172	Driver Heated Seat Switch Back Cushion Signal
5	0.35 PU/WH	1382	LED Dimming Signal/LED Dimming Supply
6	0.35 L-BU	1662	Driver Heated Seat Low Temperature Indicator Control
7	0.35 WH/BK	6177	Driver Heated Seat Medium Indicator Control
8	0.35 D-GN	1661	Driver Heated Seat High Temperature Indicator Control

Connector Part Information

OEM: 15406141
Service: 88988315
Description: 8-Way F Micro-64 Unsealed (BK)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
