Heated Seat Control Module - Passenger (KA1)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

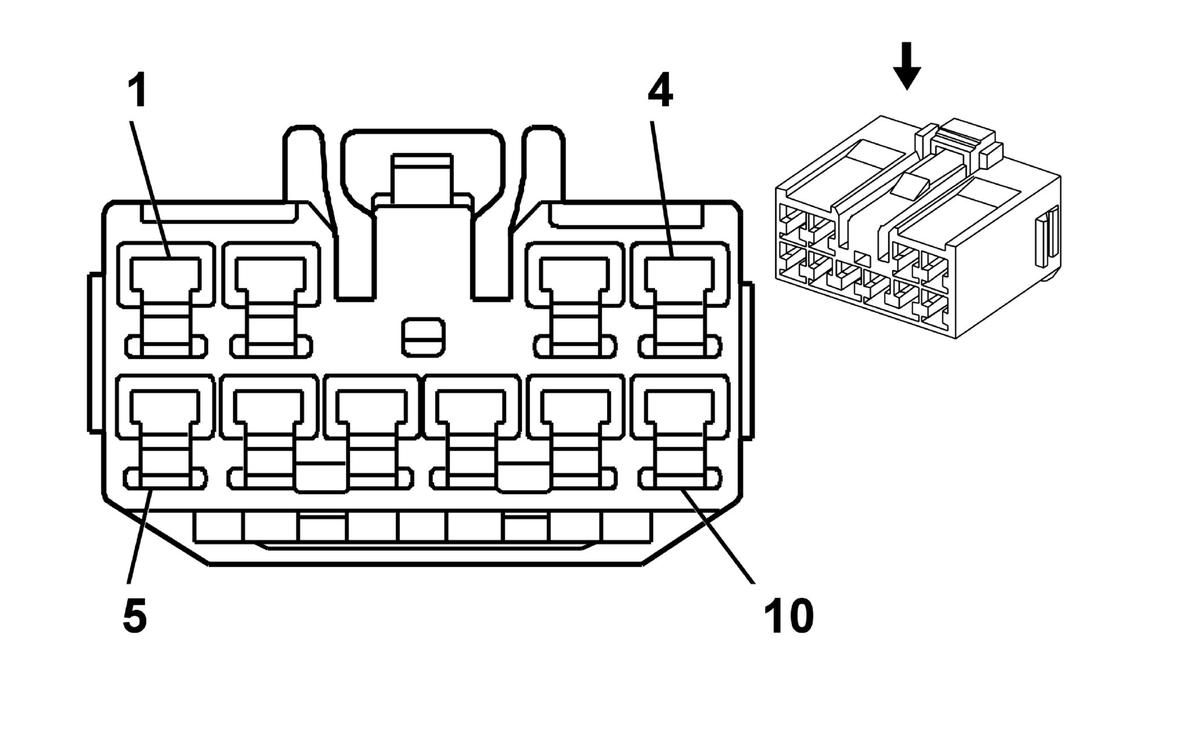

Fig 1: Heated Seat Control Module - Passenger (KA1) Connector End View
GM1962072Courtesy of GENERAL MOTORS CORP.
Heated Seat Control Module - Passenger (KA1)

Pin Wire Circuit Function
1 0.35 YE 2434 Heated Seat Element - Passenger Cushion Temperature Sensor Signal
2 0.35 L-BU 6180 Passenger Heated Seat Switch Signal
3 1 RD 2479 Heated Seat Cushion Element Control
4 1 RD/WH 640 Battery Positive Voltage
5 1 BK 650 Ground
6 0.35 PK 2435 Low Reference
7 0.35 D-GN 1685 Passenger Heated Seat High Temperature Indicator Control
8 0.35 WH/BK 6185 Passenger Heated Seat Medium Temperature Indicator Control
9 0.35 L-BU 1686 Passenger Heated Seat Low Temperature Indicator Control
10 0.35BN 41 Ignition 3 Voltage
Connector Part Information
  • OEM: MG651056
  • Service: 88952443
  • Description: 10-Way F 090 II Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
