Electric Power Steering (EPS) Module X2 (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

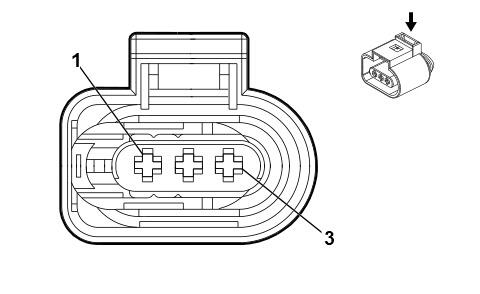

Fig 1: Electric Power Steering (EPS) Module X2 (HP5) Connector End View
GM1830930Courtesy of GENERAL MOTORS CORP.
Electric Power Steering (EPS) Module X2 (HP5)

Pin Wire Circuit Function
1 0.35 TN/BK 2501 High Speed GMLAN Serial Data Bus -
2 0.35 TN/BK 2500 High Speed GMLAN Serial Data Bus+
3 0.35 L-BU 5986 Serial Data Communications Enable
Connector Part Information
  • OEM: 10722955
  • Service: See Catalog
  • Description: 3-Way F 0.64 Series (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
