Driver Information Center (DIC)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

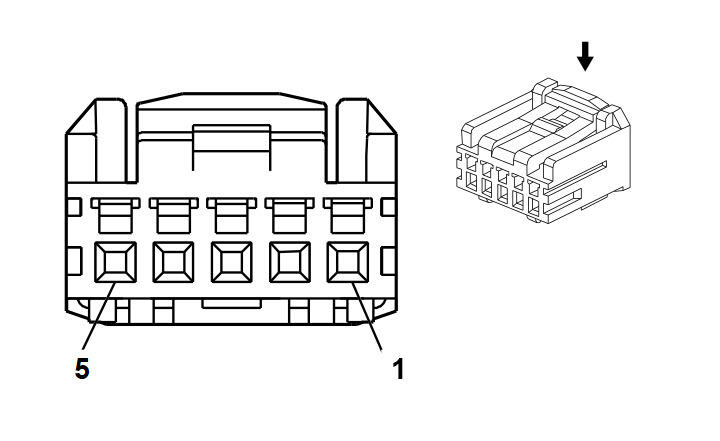

Fig 1: Driver Information Center (DIC) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
2	0.35 BN	897	Low Reference
3	0.35 PK	893	Driver Information Center Select Menu Switch Signal
4	0.35 YE	1491	Backlight Lamps Control
5	0.35 BK	350	Ground

Connector Part Information

OEM: 15491277
Service: 88988747
Description: 5-Way F HCM Series (BK)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
