Drive Motor Generator Battery Cooling System Air Inlet Temperature Sensor (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

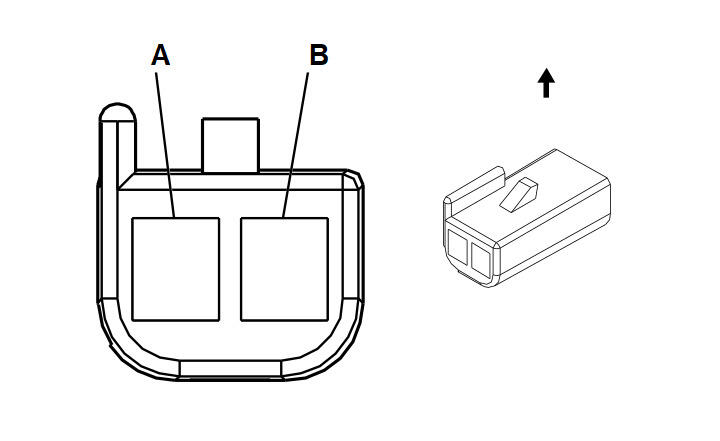

Fig 1: Drive Motor Generator Battery Cooling System Air Inlet Temperature Sensor (HP5) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.35 WH	102	Drive Motor Generator Battery Air Inlet Temperature Sensor Signal
B	0.35 D-BU	185	Drive Motor Generator Battery Air Inlet Temperature Sensor Ground

Connector Part Information

OEM: 12059251
Service: See Catalog
Description: 2-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: See Catalog
Core/Insulation Crimp: See Catalog
Release Tool/Test Probe: See Catalog
