Drive Motor Generator Battery Cable Terminal Extension Cover (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

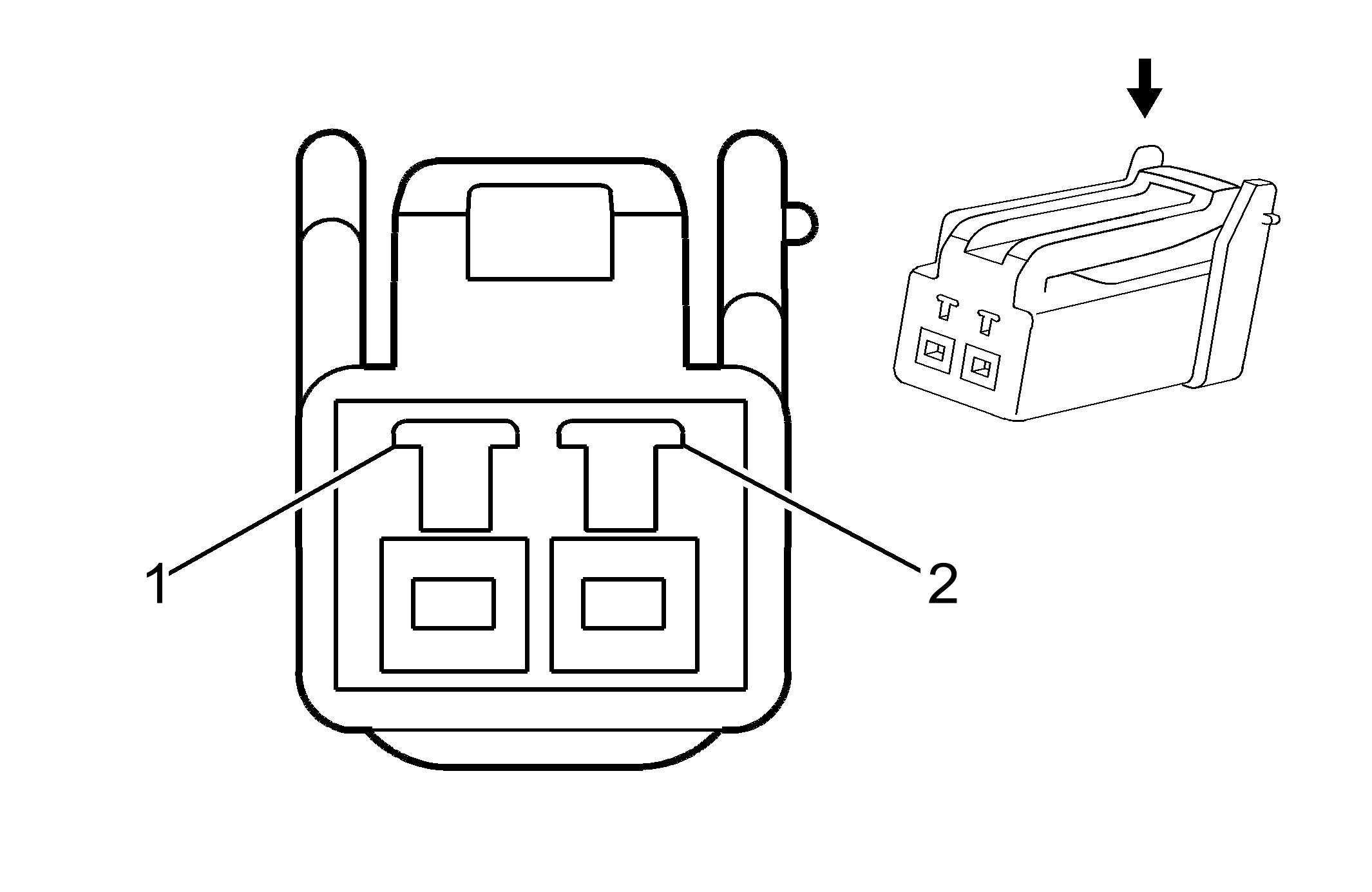

Fig 1: Drive Motor Generator Battery Cable Terminal Extension Cover (HP5) Connector End View
GM2001235Courtesy of GENERAL MOTORS CORP.
Drive Motor Generator Battery Cable Terminal Extension Cover (HP5)

Pin Wire Circuit Function
1 BK 202 High Voltage Interlock Circuit Source
2 GN 202 High Voltage Interlock Circuit Return
Connector Part Information
  • OEM: See Catalog
  • Service: See Catalog
  • Description: 2-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
