Battery Current Sensor - 42 Volt (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

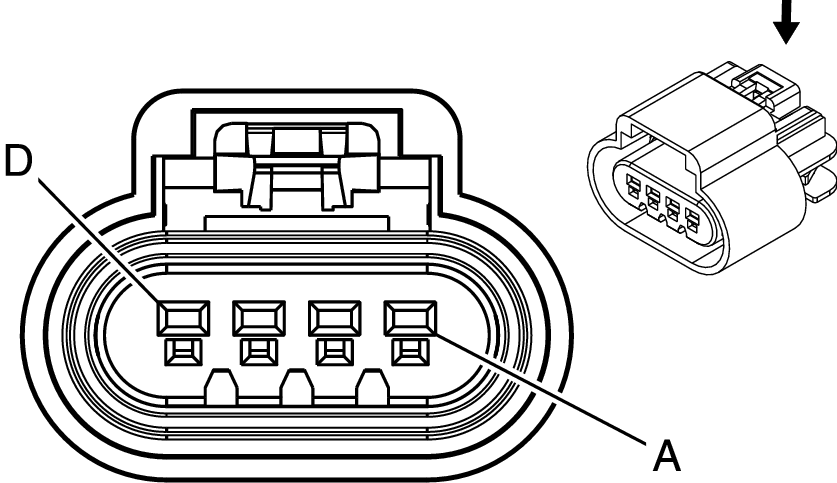

Fig 1: Battery Current Sensor - 42 Volt (HP7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.5 WH/GN		Current Sensor Signal (High Range)
B	0.5 WH/RD	-	5-Volt Reference
C	0.5 WH/BK	-	Low Reference
D	0.5 BK/RD	-	Current Sensor Signal (Low Range)

Connector Part Information

OEM: 15326815
Service: 15306396
Description: 4-Way F GT 150 Series Sealed 4.0 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
