Backup Lamp - Left
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

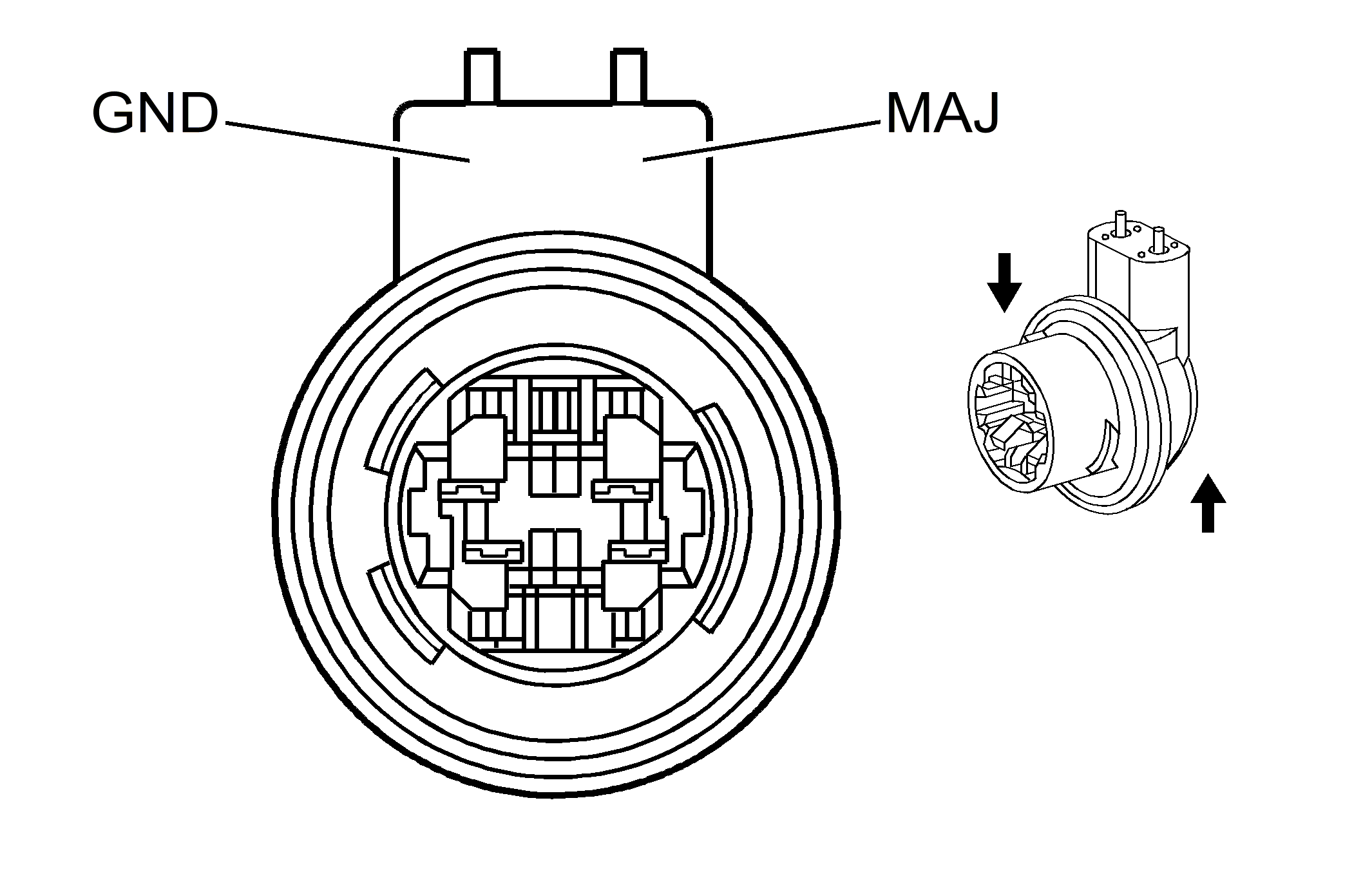

Courtesy of GENERAL MOTORS CORP. Backup Lamp - Left
| Pin |
Wire |
Circuit |
Function |
| MAJ |
0.5 WH |
24 |
Backup Lamp Supply Voltage |
| MIN |
- |
- |
Not Available |
| GND |
0.8 BK/WH |
650 |
Ground |
Connector Part Information
- OEM: 021940259
- Service: See Catalog
- Description: 3-Way F Bulb 3057 Socket (GY)
|
