Automatic Transmission Auxiliary Fluid Pump (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

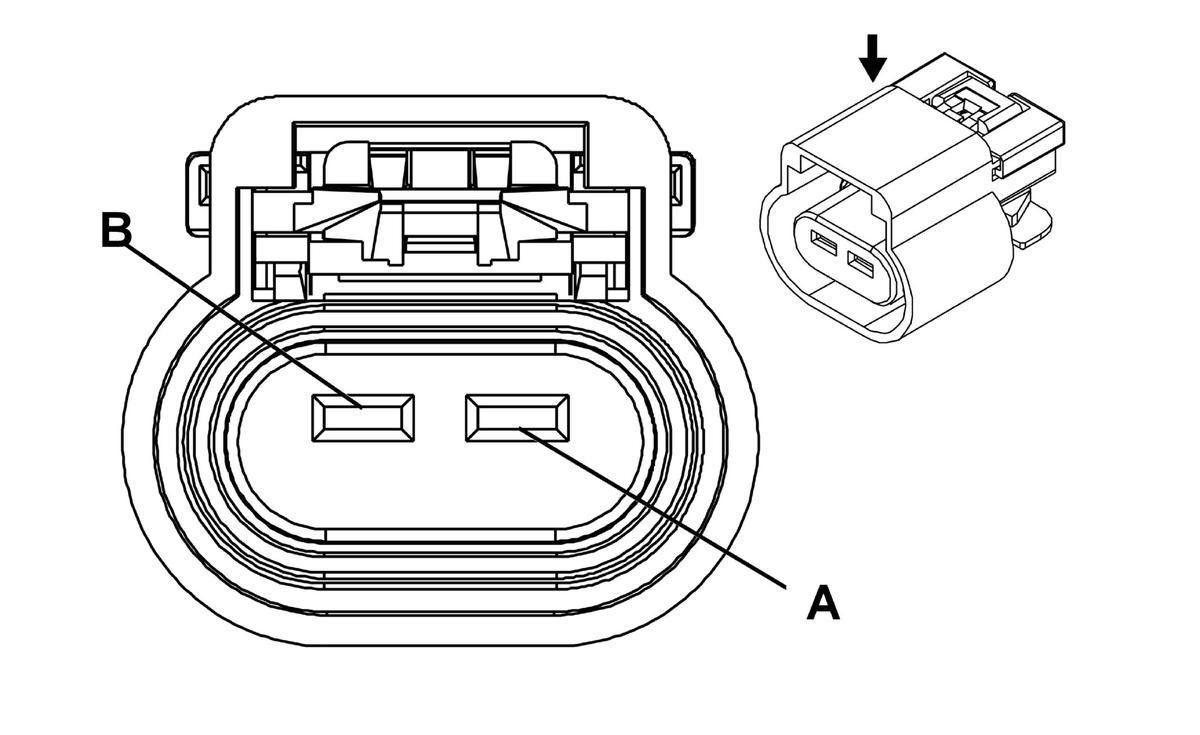

Fig 1: Automatic Transmission Auxiliary Fluid Pump (HP7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	3 BN/RD	7435	Transmission Pump High Reference
B	3 D-BU/WH	7436	Transmission Pump Low Reference

Connector Part Information

OEM: 15326677
Service: 88953351
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15304720/19
Core/Insulation Crimp: 4/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
