Air Temperature Sensor - Upper (C68)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

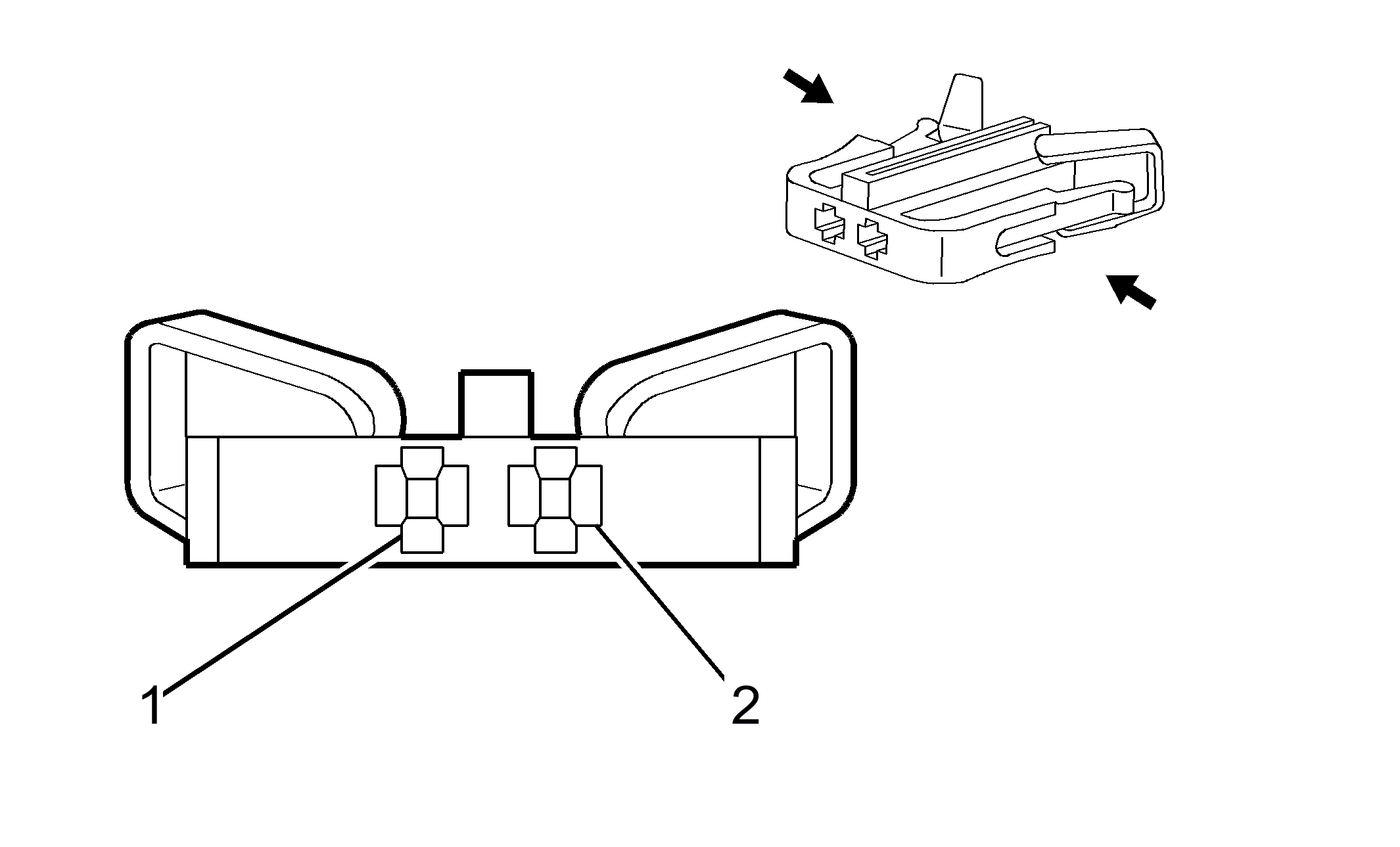

Fig 1: Air Temperature Sensor - Upper (C68) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 BN	516	Upper Air Temperature Sensor Signal
2	0.35 YE	61	Low Reference

Connector Part Information

OEM: 13069.669.696
Service: See Catalog
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
