Fuse Block - Underhood X1

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

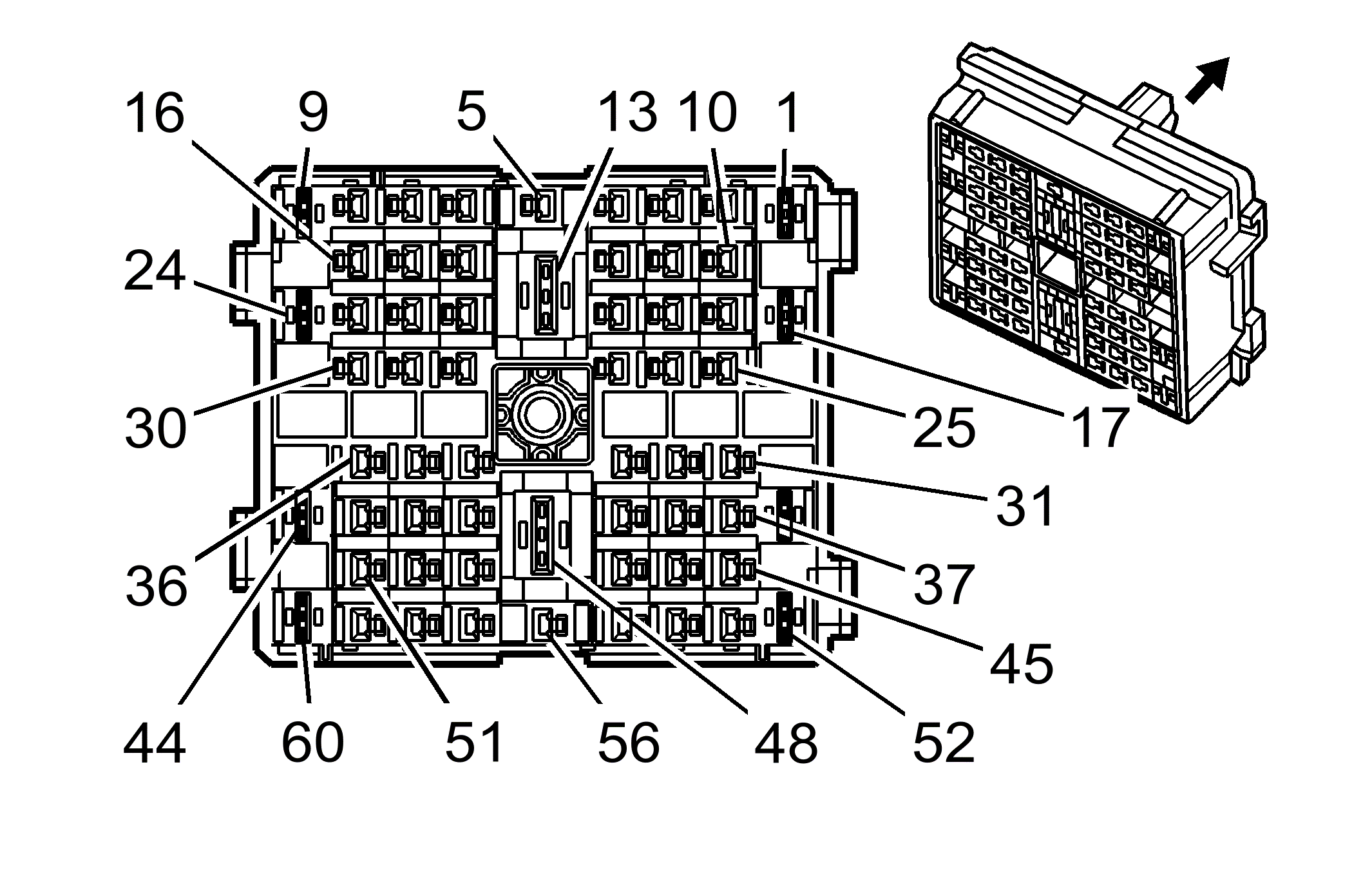

Fig 1: Fuse Block - Underhood X1 Connector End View
GM1835062Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X1

Pin Wire Circuit Function
1 1 RD/WH 2240 Battery Positive Voltage
2 0.5 RD/WH 540 Battery Positive Voltage
3 0.8 D-GN 392 Rear Window Washer Pump Control
4 0.5 WH 1310 EVAP Canister Vent Solenoid Control
5 0.5 D-GN/WH 465 Fuel Pump Relay Control
6 0.8 BN 141 Ignition 3 Voltage
7 0.5 PK 639 Ignition 1 Voltage
8 0.8 L-BU 20 Stop Lamp Supply Voltage
9 2 PU 293 Rear Defog Element Supply Voltage
10 1 RD/WH 640 Battery Positive Voltage (KA1)
11 - - Not Used
12 0.5 BK/WH 251 Ground (LE5/LE9)
13 2 RD/BK 42 Battery Positive Voltage (HP5)
14 0.5 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
15 0.5 WH 17 Stop Lamp Switch Signal
0.5 WH 17 Stop Lamp Switch Signal (HP5)
16 0.5 RD/WH 2140 Battery Positive Voltage
17 - - Not Used
18 1 RD/WH 440 Battery Positive Voltage
19 - - Not Used
20 0.35 YE 5530 Hood Open Switch Signal
21 0.35 BN/WH 419 MIL Control
22 0.35 D-BU 5985 Accessory Wakeup Serial Data
23 - - Not Used
24 3 RD/WH 240 Battery Positive Voltage
25 1 D-GN 95 Windshield Washer Switch Signal
26 - - Not Used
27 0.5 GY 589 DRL Resistor Supply Voltage
28 - - Not Used
29 0.8 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
30 0.8 RD/WH 2140 Battery Positive Voltage
31 0.35 L-GN 5486 Run Relay Coil Control
32 1 PU 92 Windshield Wiper Motor High Speed
33 - - Not Used
34 0.8 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
35 0.35 TN 860 Front Windshield Wiper Switch High Signal
36 0.35 TN/WH 1969 Headlamp High Beam Relay Control
37 3 RD/WH 3040 Battery Positive Voltage
38 0.35 TN 28 Horn Relay Control
39 0.5 OG 228 Windshield Washer Pump Control
40 - - Not Used
41 0.5 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
42 0.5 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
43 0.35 D-GN/WH 1317 Fog Lamp Relay Control
44 5 RD/WH 2040 Battery Positive Voltage
45 2 RD/WH 940 5-Volt Reference (U61)
46 0.35 WH 193 Rear Defog Relay Control
47 0.35 TN/WH 99 Windshield Washer Fluid Level Signal
48 6 RD/WH 140 Battery Positive Voltage
49 0.35 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
50 0.35 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
51 0.5 PU 709 Left Park Lamp Supply Voltage
52 - - Not Used
53 0.35 PK/WH 1970 Headlamp Low Beam Relay Control
54 0.5 WH 5065 Stop Lamp Relay Coil Supply Voltage
0.8 WH 5065 Stop Lamp Relay Coil Supply Voltage
55 0.35 PU 5531 Hood Closed Switch Signal
56 0.35 GY 91 Windshield Wiper Switch Signal 2
57 0.5 BN 5184 Left Trailer Park Lamp
58 0.35 D-BU 45 Park Lamp Supply Voltage
59 0.5 BN/WH 309 Right Park Lamp Supply Voltage
60 2 RD/WH 2140 Battery Positive Voltage
Connector Part Information
  • OEM: 13579067
  • Service: 19168037
  • Description: 60-Way F Hybrid (BK)
Terminal Part Information
  • Pins: 1-8, 10, 12, 14-16, 18, 20-22, 25, 27, 29-32, 34-36, 38-39, 41-51, 53-59
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 9, 60
  • Terminal/Tray: 1241408-1/28
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)
  • Pins: 24, 37
  • Terminal/Tray: 1241406-1/17
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)
