Fuse Block - I/P Top View

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

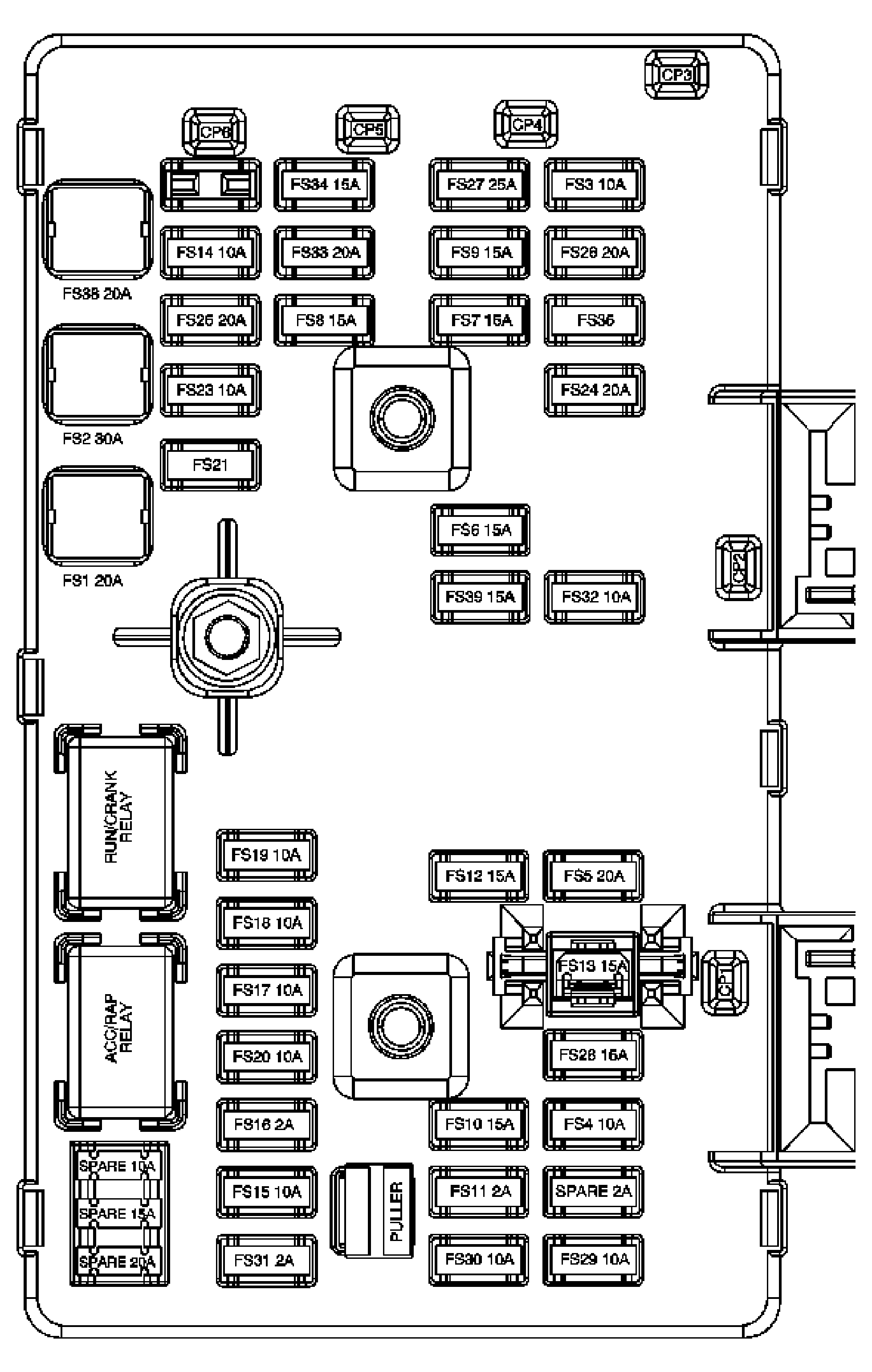

Fig 1: Fuse Block - I/P Top View
GM1938198Courtesy of GENERAL MOTORS CORP.
